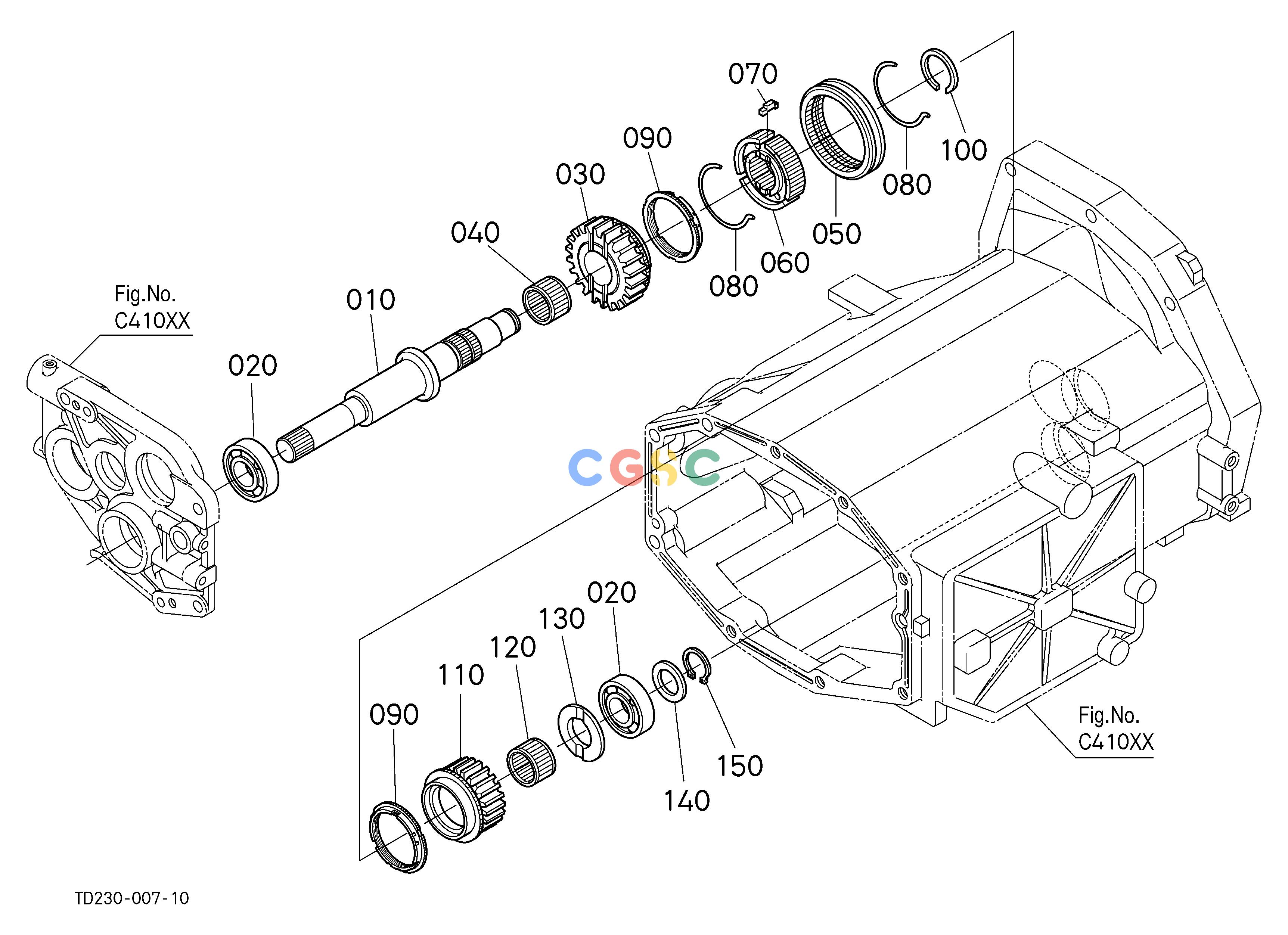

久保田零件查询D11501 SHUTTLE SHAFT CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD02022400
|
[1] |
SHAFT,SHUTTLE
|
3.6740(lbs); 1.670
|
| 020. |
3589041290
|
[2] |
BEARING
|
0.5126(lbs); 0.233
|
| 030. |
TD12022440
|
[1] |
GEAR
|
1.9470(lbs); 0.885
|
| 040. |
T106022320
|
[1] |
BEARING,NEEDLE
|
0.0528(lbs); 0.024
|
| 050. |
TD06062532
|
[1] |
SHIFTER(SHUTTLE)
|
0.5610(lbs); 0.255
|
| 060. |
TD06022452
|
[1] |
COUPLING
|
0.6380(lbs); 0.290
|
| 070. |
T185021440
|
[3] |
KEY,SYNCHRONIZER
|
0.0044(lbs); 0.002
|
| 080. |
T012021780
|
[2] |
SPRING
|
0.0066(lbs); 0.003
|
| 090. |
3N60028450
|
[2] |
RING,SYNCHRONIZER
|
0.0990(lbs); 0.045
|
| 100. |
T106022882
|
[1] |
CIR-CLIP,EXTERNAL 32.5 SHUTTLE
|
0.0110(lbs); 0.005
|
| 110. |
TD02062522
|
[1] |
GEAR
|
1.5950(lbs); 0.725
|
| 120. |
T106362480
|
[1] |
BEARING,NEEDLE
|
0.0594(lbs); 0.027
|
| 130. |
3242067662
|
[1] |
COLLAR,THRUST
|
0.0110(lbs); 0.005
|
| 140. |
3415021560
|
[1] |
WASHER
|
0.0110(lbs); 0.005
|
| 150. |
3715021551
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0110(lbs); 0.005
|
