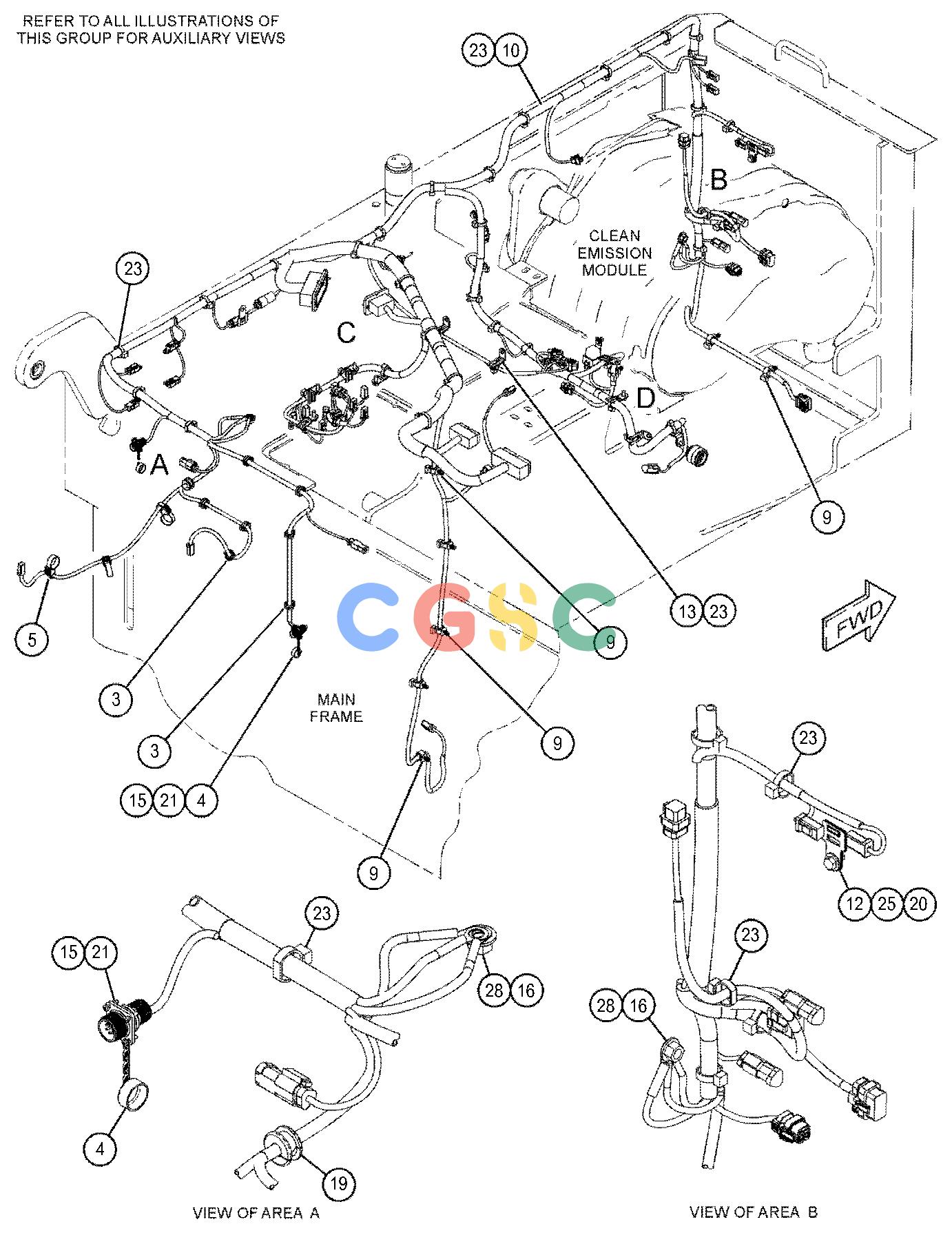

卡特零件查询（AP-1055F） 390-9367: WIRING GP-MACHINE
广数供应链运营团队, 16 02月, 2025，浏览：
218 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5239 | [1] | RELAY AS(24-VOLT)(PRIMING PUMP) | |
| 2. | 3E-7675 | [1] | SWITCH GP-PRESSURE(BRAKE) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(21-CM) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 3S-2093 | [14] | STRAP-CABLE | |
| 4. | 8D-9537 | [2] | CAP-DUST | |
| 5. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 6. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 7. | 204-2281 | [2] | STRAP-CABLE | |
| 8. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(AMBIENT AIR) | |
| 9. | 327-0325 | [10] | STRAP-CABLE | |
| 10. | 507-7208Y | [1] | HARNESS AS-WIRING(LH) | |
| 11. | 096-6166 | [5] | WASHER-HARD(4.5X9X1-MM THK) | |
| 12. | 130-5300 | [3] | CLIP | |
| 13. | 132-5789 | [7] | CLIP(LADDER) | |
| 14. | 344-5673M | [1] | NUT(M6X1-THD) | |
| 15. | 132-8485 | [2] | NUT-RING | |
| 16. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 17. | 4P-7581 | [6] | CLIP(LADDER) | |
| 18. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 19. | 5D-7635 | [1] | GROMMET | |
| 20. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | | [8] | SCREW-MACHINE |
| 22. | 6V-9672M | [5] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 23. | 7K-1181 | [36] | STRAP-CABLE | |
| 24. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 25. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 26. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 27. | 8T-4224 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 28. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
