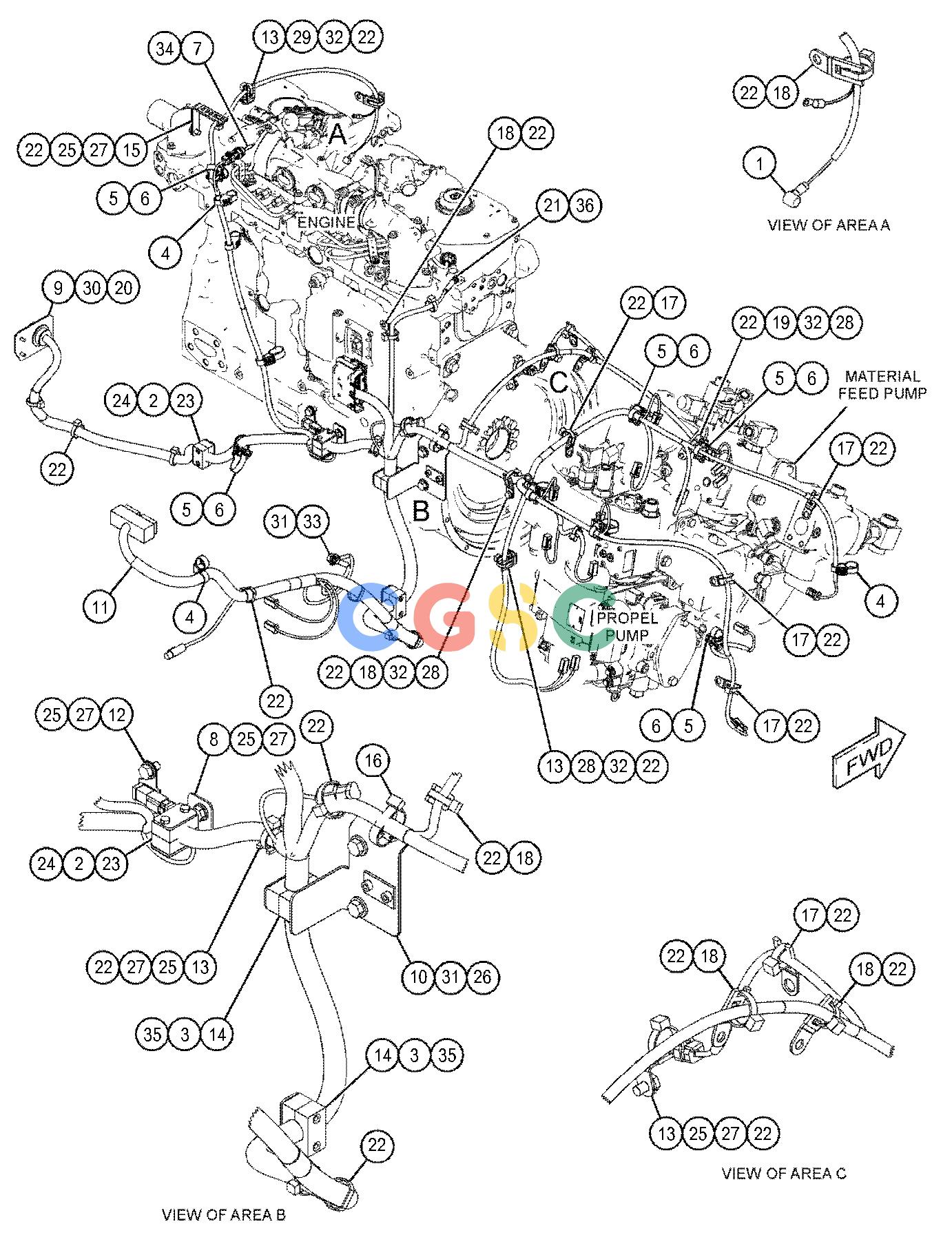

卡特零件查询（AP-1055F） 390-9362: WIRING GP-POWER TRAIN
广数供应链运营团队, 16 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7E-0976 | [1] | BOOT | |
| 2. | 7V-5628 | [2] | PLATE(TOP) | |
| 3. | 143-9644 | [2] | PLATE-RETAINER | |
| 4. | 177-2215 | [5] | STRAP-DUAL CLAMP | |
| 5. | 200-6345 | [7] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 6. | 204-2281 | [14] | STRAP-CABLE | |
| 7. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(AIR CONDITIONER) | |
| 8. | 288-6913 | [1] | BRACKET AS | |
| 9. | 421-2633 | [1] | PLATE | |
| 10. | 422-5202 | [1] | BRACKET AS | |
| | 130-5300 | [1] | CLIP | |
| | 178-8505 | [1] | PLATE-WELD | |
| | 178-8508 | [1] | PLATE AS | |
| 11. | 449-3156Y | [1] | HARNESS GP-WIRING(POWER TRAIN) | |
| 12. | 130-5300 | [1] | CLIP | |
| 13. | 132-5789 | [4] | CLIP(LADDER) | |
| 14. | 139-0428 | [4] | CLAMP | |
| 15. | 310-1898 | [1] | CLIP(LADDER) | |
| 16. | 327-0325 | [1] | STRAP-CABLE | |
| 17. | 4P-7428 | [5] | CLIP(LADDER) | |
| 18. | 4P-7581 | [6] | CLIP(LADDER) | |
| 19. | 4P-8134 | [1] | CLIP(LADDER) | |
| 20. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 21. | 6V-7743M | [1] | LOCKNUT(M6X1-THD) | |
| 22. | 7K-1181 | [27] | STRAP-CABLE | |
| 23. | 7V-5626 | [4] | CLAMP | |
| 24. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 25. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4179M | [2] | BOLT(M12X1.75X20-MM) | |
| 27. | 8T-4191M | [5] | BOLT(M10X1.5X16-MM) | |
| 28. | 8T-4199M | [3] | BOLT(M8X1.25X12-MM) | |
| 29. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 30. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 34. | 8T-7524 | [1] | SEAL-O-RING | |
| 35. | 9X-2480M | [4] | BOLT(M6X1X45-MM) | |
| 36. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
