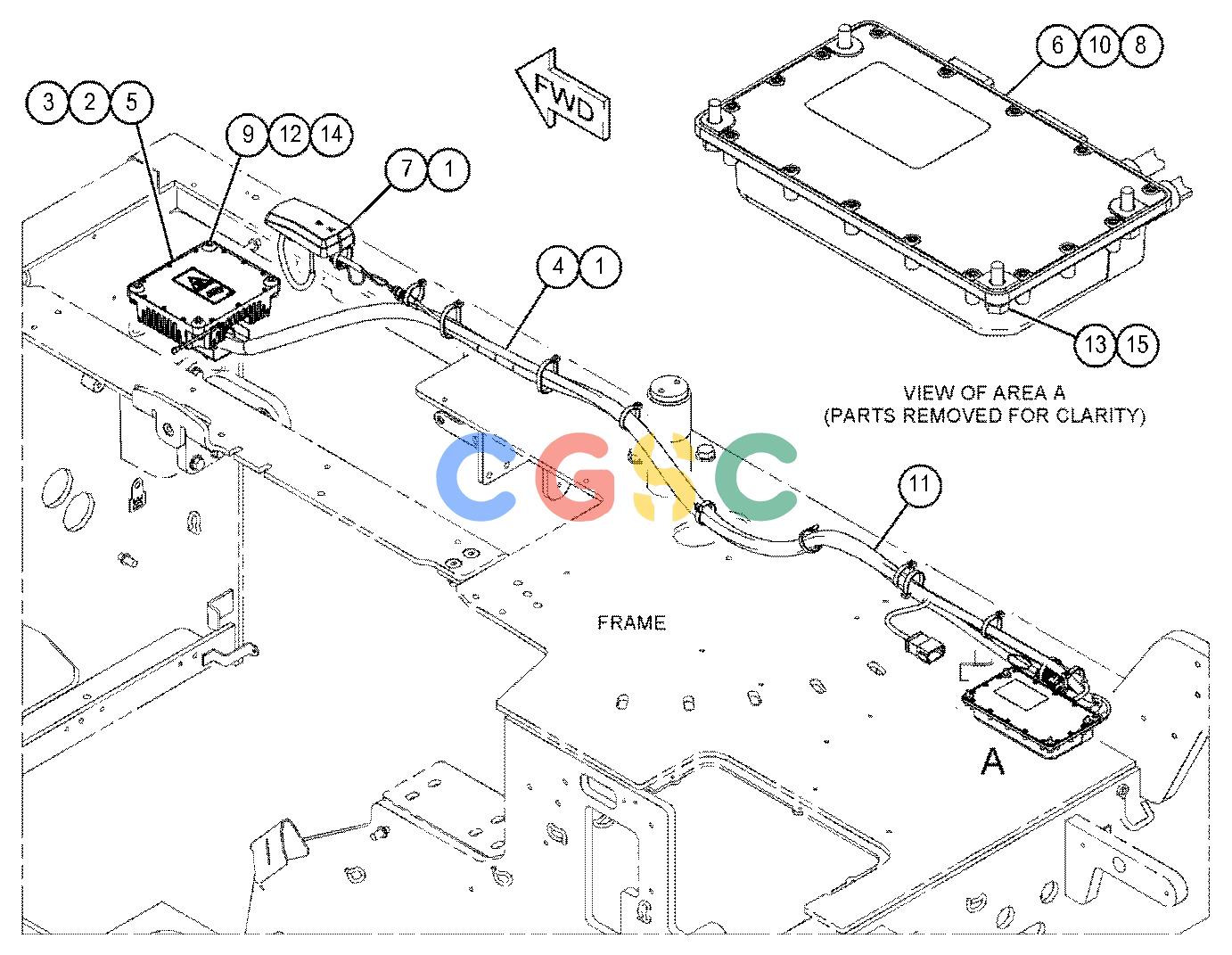

卡特零件查询（AP-1055F） 497-3499: INSTALLATION GP-COMMUNICATION
广数供应链运营团队, 16 02月, 2025，浏览：
205 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [13] | STRAP-CABLE | |
| 2. | 8C-5607 | [8] | MOUNT-ISOLATION | |
| 3. | 8C-5608 | [4] | SPACER(6.5X9.5X25.4-MM THK) | |
| 4. | 349-6083 | [1] | CABLE AS | |
| 5. | 417-4722Y | [1] | CONTROL GP-COMMUNICATION(NETWORK MANAGER) | |
| 6. | 442-7199Y | [1] | CONTROL GP-UNPROGRAMMED(PRODUCT LINK ELITE 631 SATELLITE) | |
| 7. | 443-8462 | [1] | ANTENNA AS(CELLULAR) | |
| | 361-1045 | [1] | NUT-SPECIAL(5/8-18-THD) | |
| | 385-8201 | [1] | CAP AS-CONNECTOR(PLUG) | |
| 8. | 462-6495 | [1] | PLUG AS | |
| | 8T-8737 | [8] | PLUG-SEAL | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| 9. | 478-8209Y | [1] | ELECTRONICS GP-MONITOR(NETWORK MANAGER) | |
| 10. | 478-8212Y | [1] | ELECTRONICS GP-MONITOR(PL631) | |
| 11. | 497-4952Y | [1] | HARNESS AS-CONTROL | |
| 12. | 7X-2533M | [4] | BOLT(M6X1X35-MM) | |
| 13. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 14. | 9X-6165 | [4] | WASHER(6.5X22X2.5-MM THK) | |
| 15. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
