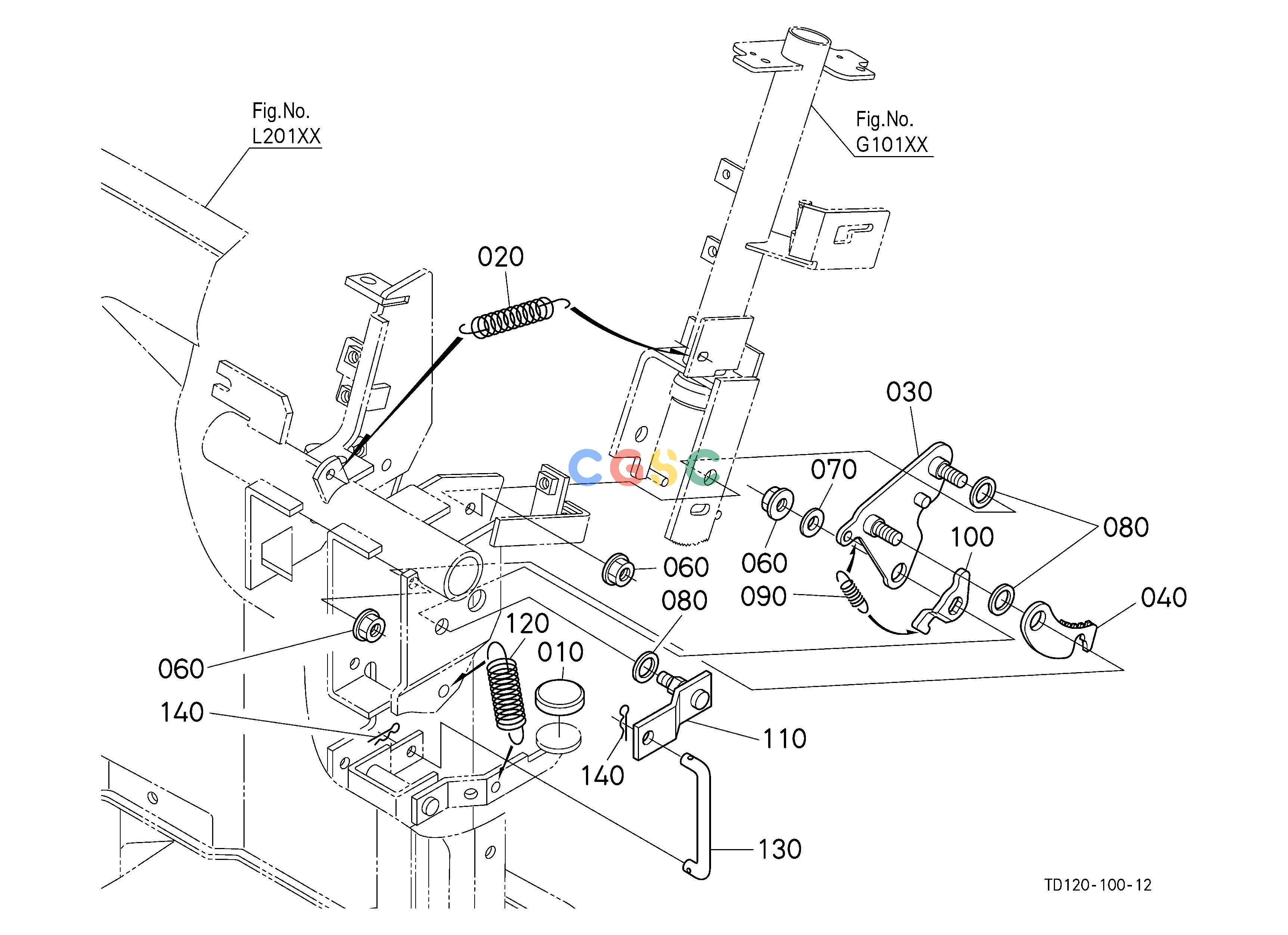

久保田零件查询G10300 TILT PEDAL STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3691962320
|
[1] |
RUBBER,PEDAL
|
0.0176(lbs); 0.008
|
| 020. |
T127047140
|
[1] |
SPRING
|
0.0990(lbs); 0.045
|
| 030. |
T106043700
|
[1] |
BRACKET(TILT)
|
0.2750(lbs); 0.125
|
| 040. |
T106043640
|
[1] |
ROCK,TILT
|
0.1210(lbs); 0.055
|
| 060. |
0275150080
|
[3] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 070. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0471400120
|
[3] |
PACKING
|
0.0022(lbs); 0.001
|
| 090. |
T106043630
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 100. |
T106043710
|
[1] |
LEVER,TILT
|
0.0440(lbs); 0.020
|
| 110. |
T106043720
|
[1] |
LEVER,TILT
|
0.1320(lbs); 0.060
|
| 120. |
T127047150
|
[1] |
SPRING
|
0.0550(lbs); 0.025
|
| 130. |
T106043690
|
[1] |
ROD(TILT)
|
0.0484(lbs); 0.022
|
| 140. |
0552550600
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
