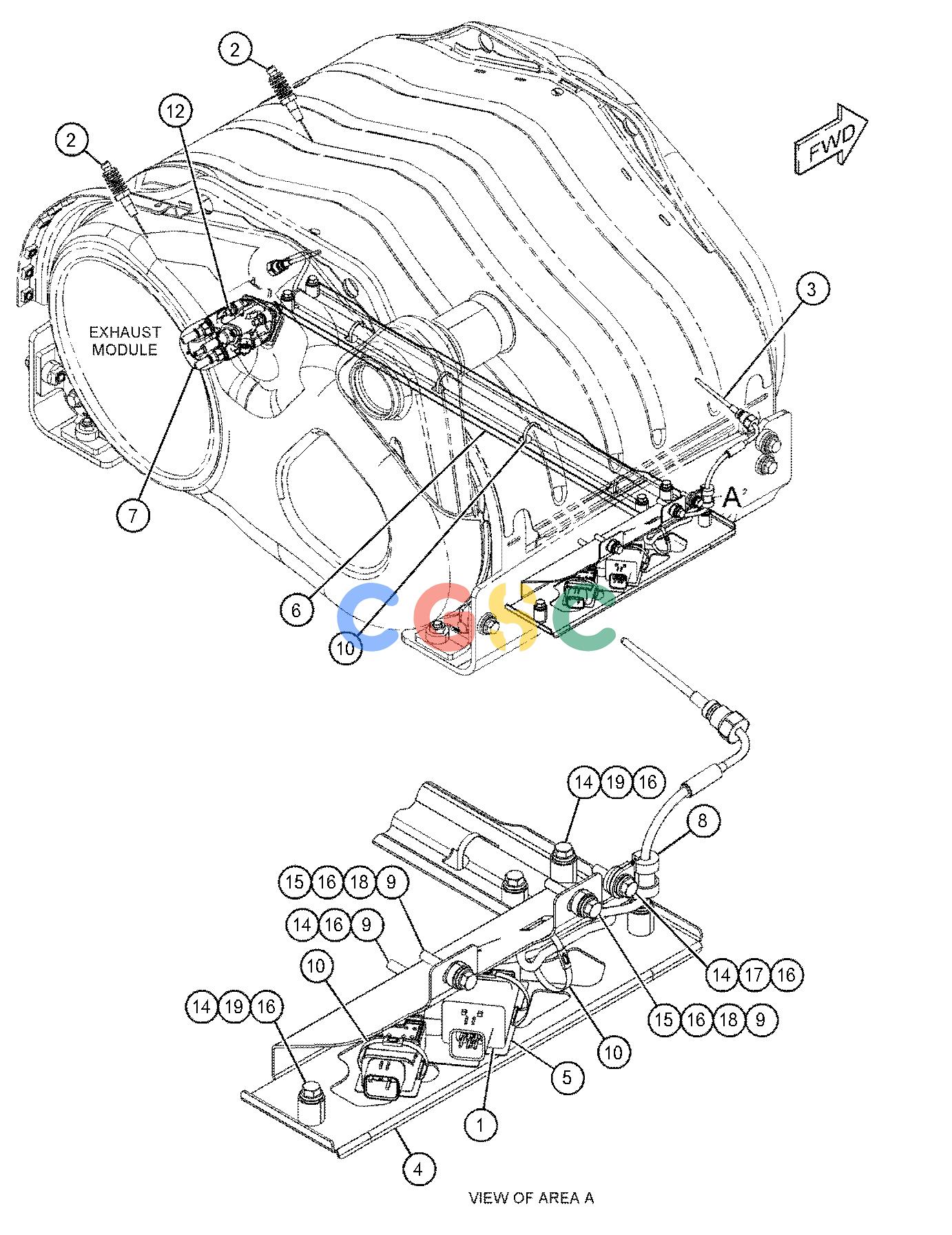

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3E-5239 | [2] | RELAY AS(24-VOLT) | |
| 2. | 7K-1181 | [2] | STRAP-CABLE | |
| 3. | 235-4451M | [5] | BOLT-FLANGE HEAD(M6X1X16-MM) | |
| 4. | 373-5623 | [1] | SUPPORT AS | |
| 5. | 396-6500Y | [1] | CONTROL GP-ELECTRONIC(VOLTAGE, LOAD PROTECTION, 24-VOLT) | |
| 6. | 433-6972 | [1] | VALVE GP-SOLENOID(24-VDC)(ECM) | |
| 7. | 113-8694M | [4] | BOLT(M6X1X20-MM) | |
| 8. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
