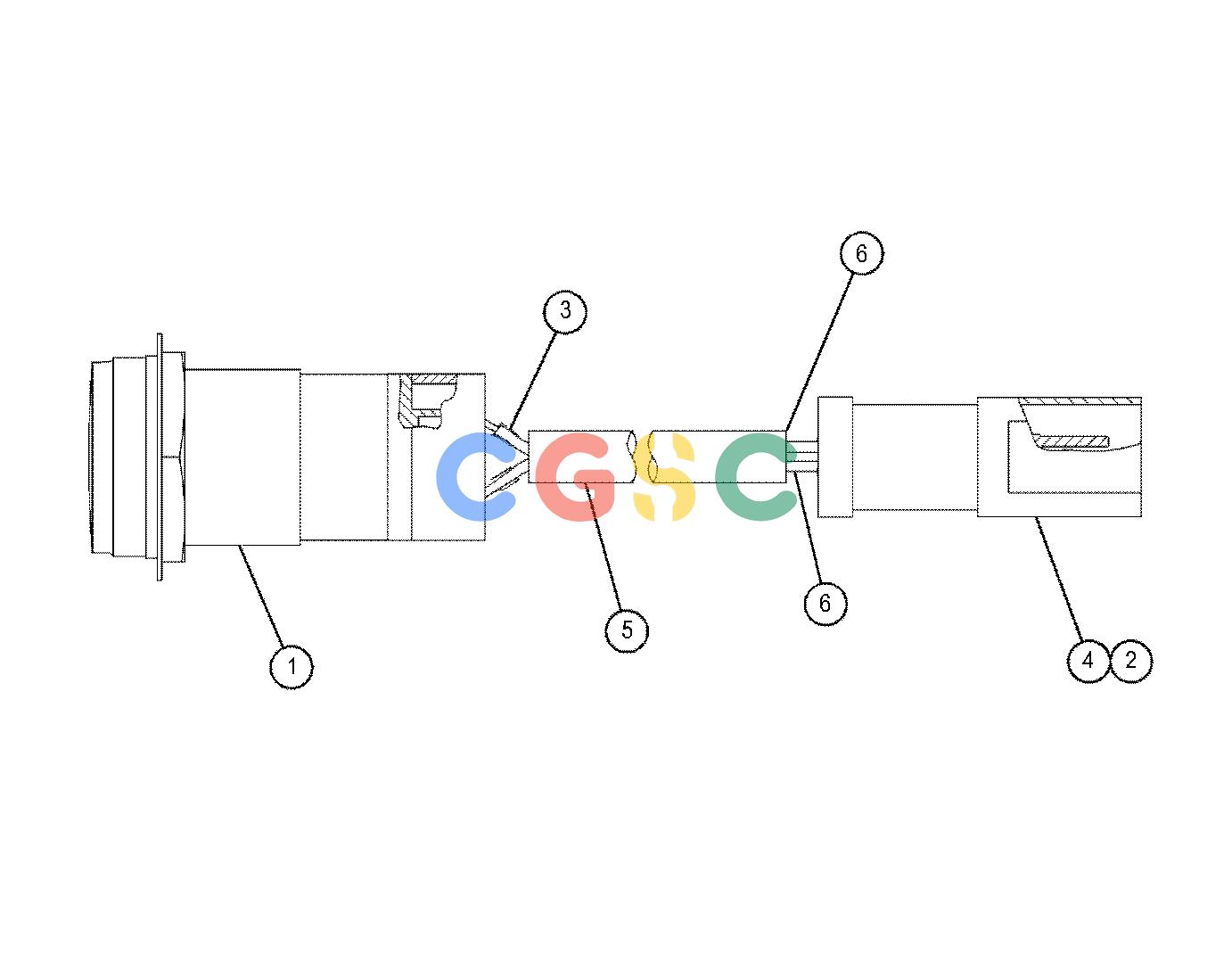

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 426-5375 | [1] | LAMP AS-INDICATOR(24-VOLT) | |
| 2. | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 3. | 6V-2689D | TUBE-HEAT SHRINK(6.35-MM DIA)(0.1-M EACH) | ||
| 4. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 5. | 9X-1386E | SLEEVE(29-CM) | ||
| 6. | 5P-5677BD | WIRE(18-GA, BLACK) | ||
| B | USE AS REQUIRED | |||
| D | ORDER BY THE METER | |||
| E | ORDER BY THE CENTIMETER | |||
