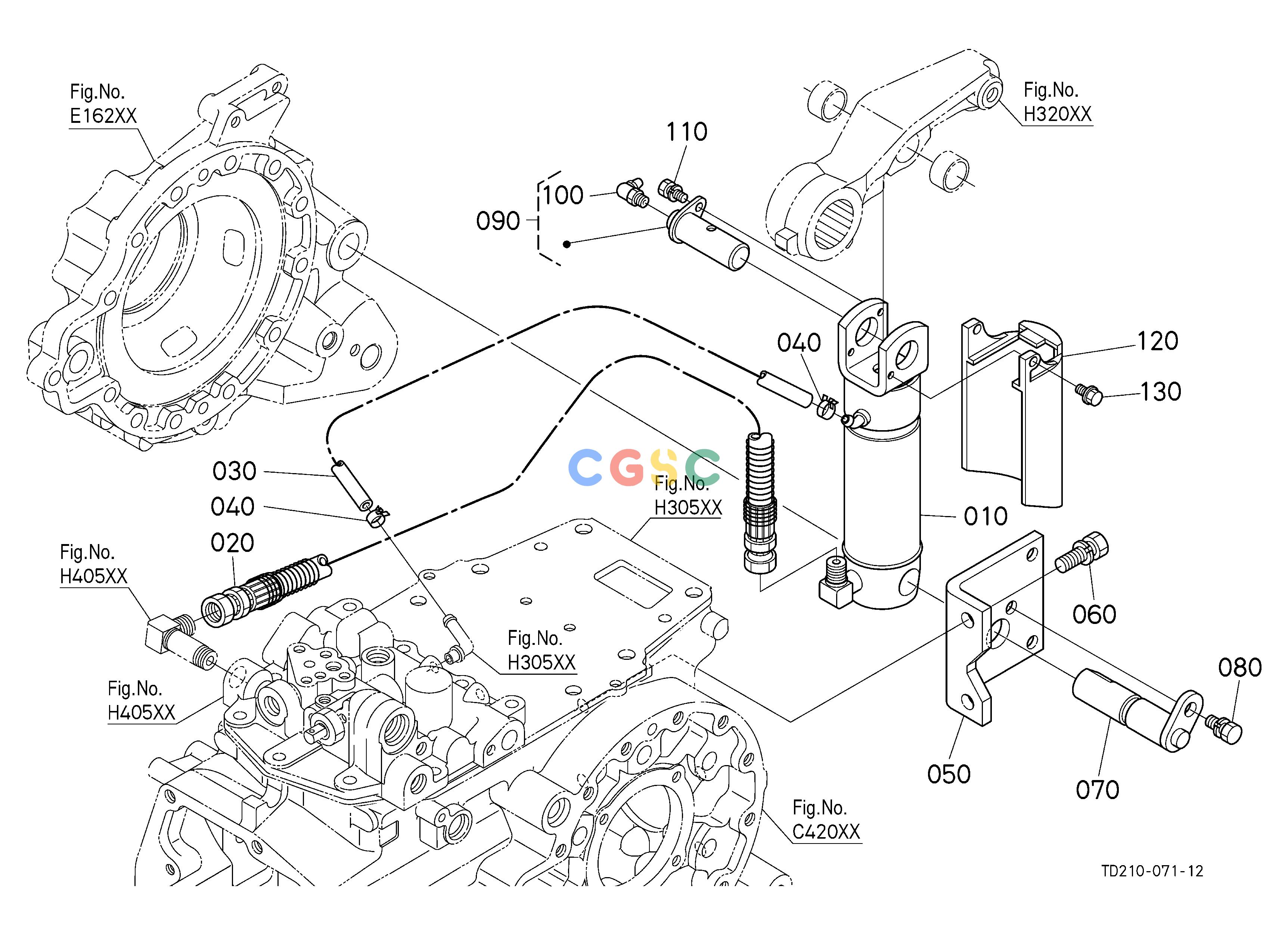

久保田零件查询H43500 3P CYLINDER RH HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW34400100
|
[1] |
CYLINDER,ASSY
|
8.6900(lbs); 3.950
|
| 010. |
YW34400103
|
[1] |
ASSY CYLINDER
|
8.6900(lbs); 3.950
|
| 020. |
TD17034922
|
[1] |
HOSE,HYD.CYLINDER
|
1.5840(lbs); 0.720
|
| 030. |
0966180320
|
[1] |
TUBE FUEL 320 MM
|
0.0880(lbs); 0.040
|
| 040. |
0931888115
|
[2] |
CLAMP,HOSE
|
0.0044(lbs); 0.002
|
| 050. |
T106034870
|
[1] |
STAY,CYLINDER RH
|
2.2220(lbs); 1.010
|
| 060. |
0113351230
|
[1] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 070. |
T106034890
|
[1] |
PIN(CYLINDER)
|
0.9790(lbs); 0.445
|
| 080. |
0113351016
|
[1] |
BOLT,SEMS
|
0.0374(lbs); 0.017
|
| 090. |
T106034850
|
[1] |
PIN,ASSY(CYLINDER)
|
0.5632(lbs); 0.256
|
| 100. |
0661625010
|
[1] |
NIPPLE GREASE
|
0.0176(lbs); 0.008
|
| 110. |
0102350612
|
[1] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 120. |
T106034812
|
[1] |
COVER,CYLINDER
|
0.1210(lbs); 0.055
|
| 130. |
0175450612
|
[2] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
