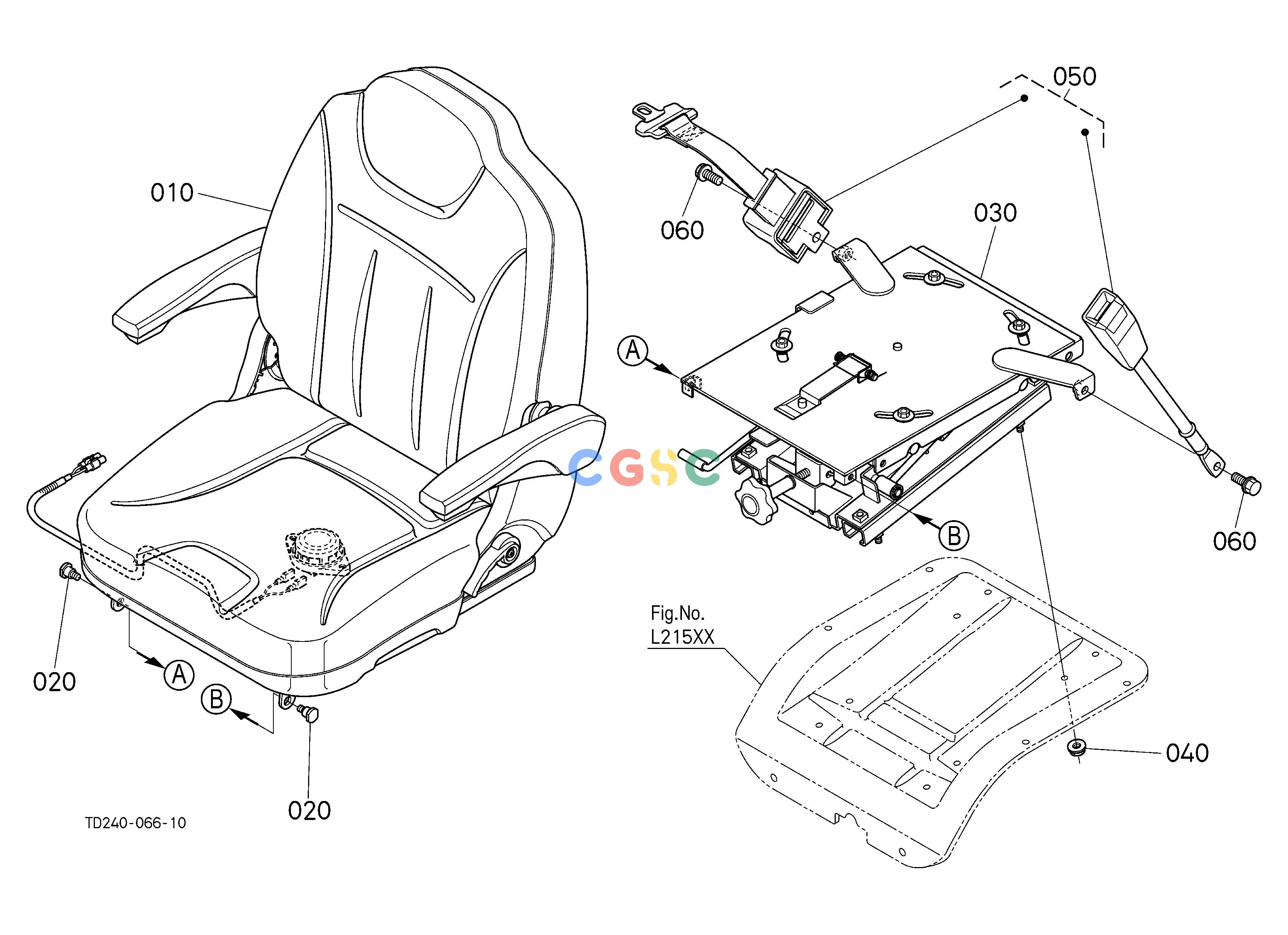

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TD17047700 | [1] | ASSY SEAT | 37.4000(lbs); 17.000 |
| 020. | 5365021350 | [2] | BOLT,STOP | 0.0374(lbs); 0.017 |
| 030. | TD27048990 | [1] | ASSY SUSPENSION | 38.5000(lbs); 17.500 |
| 040. | 0276350080 | [4] | NUT,FLANGE | 0.0132(lbs); 0.006 |
| 050. | TD06047780 | [1] | SEAT BELT, ASSY | 1.7710(lbs); 0.805 |
| 060. | 0177451025 | [2] | BOLT,FLANGE | 0.0440(lbs); 0.020 |
