久保田零件查询R11502 LABEL 3 (REAR) LABELSEPC Kubota online_久保田Kubota_工程机械

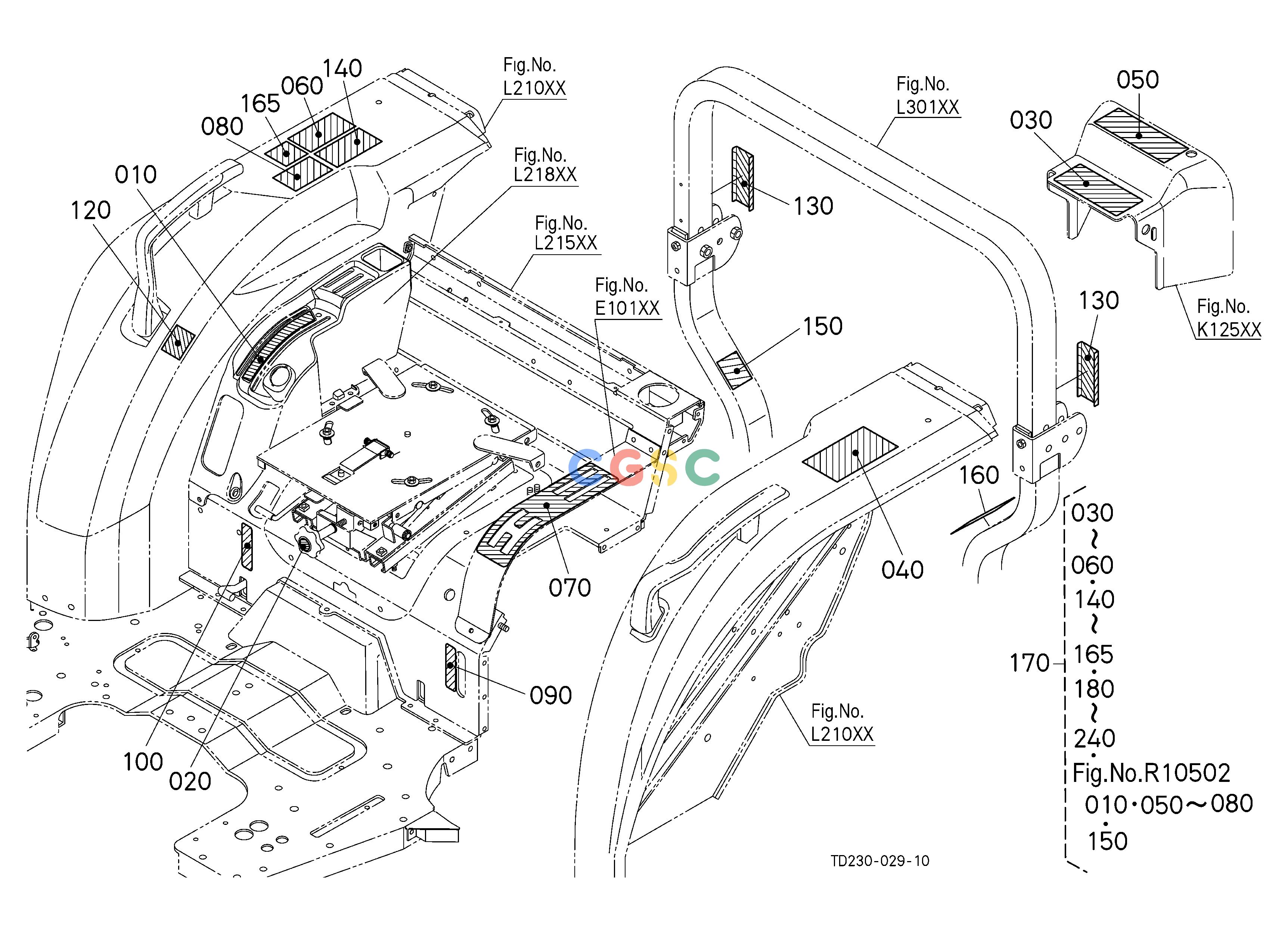

久保田零件查询R11502 LABEL 3 (REAR) LABELSEPC Kubota online

广数供应链运营团队, 16 02月, 2025，浏览： 663 次

Pos.	Part No	Qty	Parts name	Comments
010.	TD17049500	[1]	MARK,POSITION	0.0110(lbs); 0.005
020.	TA14011900	[1]	LABEL,ADJUST	0.0022(lbs); 0.001
030.	TD17049350	[1]	LABEL,DRAWBAR,LIFT ROD	ENGLISH 0.0044(lbs); 0.002
030.	TD17349350	[1]	LABEL,DRAWBAR	FRENCH 0.0044(lbs); 0.002
040.	3526034914	[1]	LABEL	ENGLISH 0.0110(lbs); 0.005
040.	TA04165702	[1]	LABEL,SAFETY	FRENCH 0.0220(lbs); 0.010
050.	TA04049593	[1]	LABEL,PTO WARNING	ENGLISH 0.0022(lbs); 0.001
050.	TA04149590	[1]	LABEL,PTO WARNING	FRENCH 0.0110(lbs); 0.005
060.	TA14049330	[1]	LABEL,SHUTTLE	ENGLISH 0.0110(lbs); 0.005
060.	TA14149330	[1]	LABEL,SHUTTLE	FRENCH 0.0110(lbs); 0.005
070.	TD24049210	[1]	MARK,SHIFT	0.0220(lbs); 0.010
080.	TD27049300	[1]	LABEL,I-PTO CAUTION	ENGLISH 0.0044(lbs); 0.002
080.	TD27349300	[1]	LABEL,I-PTO CAUTION	FRENCH 0.0022(lbs); 0.001
090.	TD06049550	[1]	MARK,4WD	0.0022(lbs); 0.001
100.	3C08198410	[1]	MARK,DIFF.LOCK	0.0022(lbs); 0.001
120.	TD17037980	[1]	LABEL,HYD.OUTLET	0.0022(lbs); 0.001
130.	6C14054990	[2]	REFLECTOR(LABEL)	0.0066(lbs); 0.003
140.	TA24098480	[1]	LABEL(ROPS WARNING)	ENGLISH; <=71218 0.0110(lbs); 0.005
140.	TA24098482	[1]	LABEL, ROPS WARNING LABEL	ENGLISH; >=71219 0.0110(lbs); 0.005
140.	3A11298480	[1]	LABEL,ROPS WARNING	FRENCH 0.0088(lbs); 0.004
150.	6C14047460	[1]	LABEL,ROPS WARNING	ENGLISH 0.0022(lbs); 0.001
150.	6C14147460	[1]	LABEL,ROPS WARNING FR	FRENCH 0.0022(lbs); 0.001
160.	TD06049270	[1]	LABEL,ROPS CAUTION	ENGLISH 0.0044(lbs); 0.002
160.	TD06149270	[1]	LABEL,ROPS CAUTION	FRENCH 0.0044(lbs); 0.002
165.	6C30047440	[1]	LABEL,SPARK ARRESTER	0.0044(lbs); 0.002
170.	TD17099592	[1]	KIT LABEL,SAFETY (A)	ENGLISH; <=72206 0.1430(lbs); 0.065
170.	TD27099590	[1]	KIT LABEL,SAFETY (A)	ENGLISH; >=72207 0.1760(lbs); 0.080
170.	TD17199590	[1]	KIT LABEL,SAFETY (B)	FRENCH; <=72206 0.1100(lbs); 0.050
170.	TD27199590	[1]	KIT LABEL,SAFETY (B)	FRENCH; >=72207 0.0000(lbs); 0.000
180.	TA04049320	[1]	LABEL,ROPS WARNING	ENGLISH, OUT OF USE 0.0022(lbs); 0.001
180.	TA04049150	[1]	LABEL,ROPS WARNING	FRENCH, OUT OF USE 0.0066(lbs); 0.003
190.	TA04049342	[1]	LABEL,M-PTO WARNING	ENGLISH, OUT OF USE 0.0022(lbs); 0.001
190.	TA04149342	[1]	LABEL,M-PTO WARNING	FRENCH, OUT OF USE 0.0066(lbs); 0.003
200.	TA14049920	[1]	LABEL,SHUTTLE	ENGLISH, OUT OF USE 0.0110(lbs); 0.005
200.	TA14149920	[1]	LABEL,SHUTTLE	FRENCH, OUT OF USE 0.0110(lbs); 0.005
210.	TD17049330	[1]	LABEL,PARKING	ENGLISH, OUT OF USE 0.0110(lbs); 0.005
210.	TA24149330	[1]	LABEL,PARKING WARNI.	FRENCH, OUT OF USE 0.0110(lbs); 0.005
220.	TA04049020	[1]	LABEL,CAB WARNING	ENGLISH, OUT OF USE 0.0044(lbs); 0.002
220.	TA04349020	[1]	LABEL,CAB WARNING	FRENCH, OUT OF USE 0.0110(lbs); 0.005
230.	TD17049380	[1]	LABEL	ENGLISH, OUT OF USE 0.0176(lbs); 0.008
230.	TD17149380	[1]	LABEL,SAFETY	FRENCH, OUT OF USE 0.0176(lbs); 0.008
240.	6C14047460	[1]	LABEL,ROPS WARNING	ENGLISH, OUT OF USE 0.0022(lbs); 0.001
