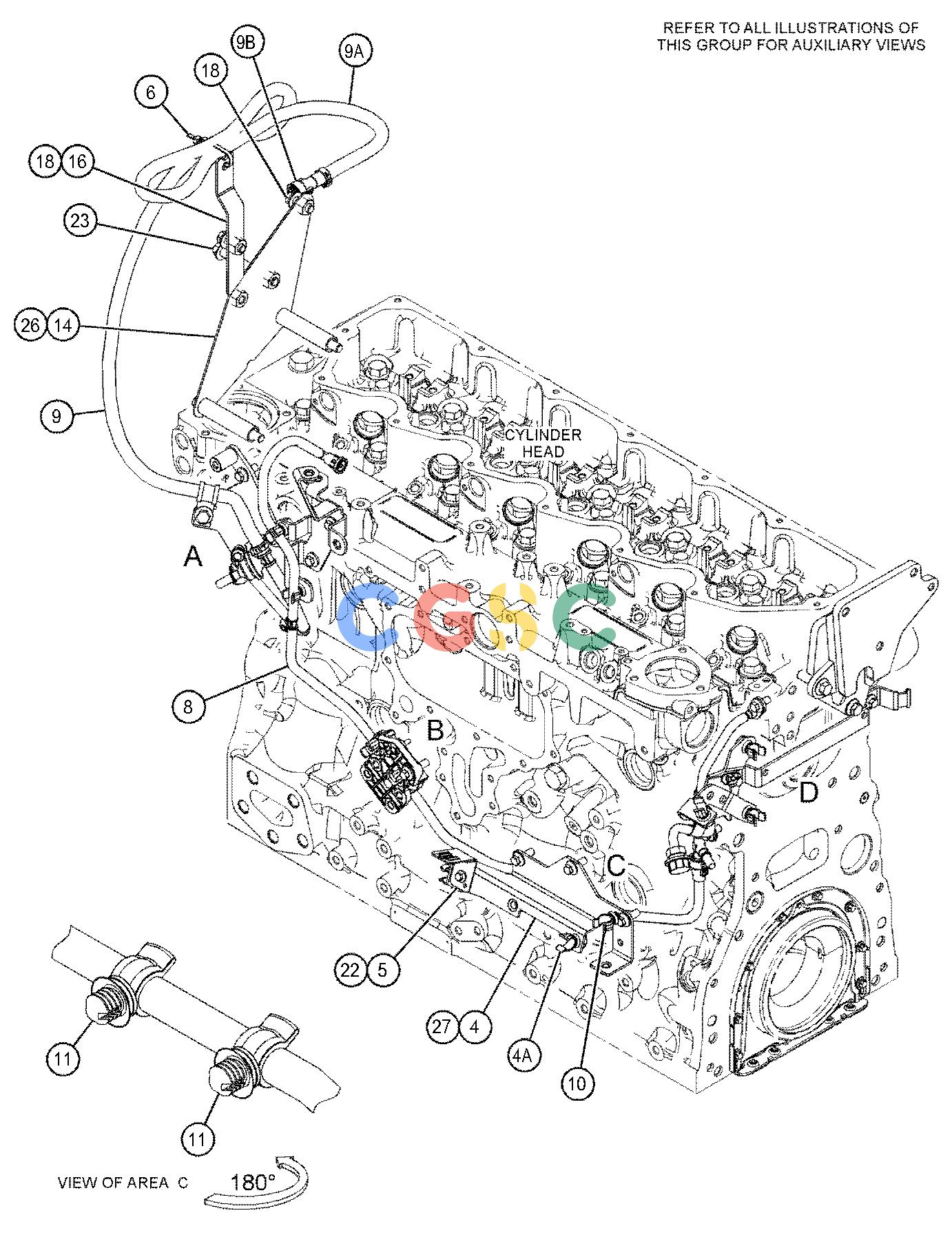

卡特零件查询（AP-1055F） 398-7213: LINES GP-FUEL FILTER

广数供应链运营团队, 16 02月, 2025，浏览： 533 次

Pos.	Part No	Qty	Parts name
1.	357-7473	[1]	SUPPORT GP-LINES
1A.	347-3429	[2]	CLIP-PIPE
2.	359-5206	[1]	SUPPORT GP-LINES
3.	359-5208	[1]	SUPPORT GP-LINES
4.	419-4459	[1]	SUPPORT GP-LINES
4A.	342-3782	[2]	CLIP-PIPE
5.	394-4919	[1]	SUPPORT AS
6.	217-9039	[1]	STRAP-CABLE
7.	376-6892Y	[1]	LINES GP-FUEL
8.	359-5219	[1]	LINE AS-FUEL
9.	383-3476	[1]	LINE AS-FUEL
9A.	347-8645E		HOSE(185-CM)
9B.	359-7115	[1]	CONNECTOR-FUEL
10.	342-3782	[1]	CLIP-PIPE
11.	347-3429	[2]	CLIP-PIPE
12.	344-5360	[1]	CLIP(LOOP)
13.		[1]	CAP
14.	352-3426	[1]	BRACKET AS
15.	359-5223	[1]	BRACKET AS
16.	365-3307	[1]	BRACKET AS
17.	365-2981	[1]	BRACKET AS
18.	6I-0654M	[4]	BOLT(M10X1.5X25-MM)
19.	6I-0917M	[1]	BOLT(M6X1X25-MM)
20.	6I-4200M	[1]	BOLT(M10X1.5X16-MM)
21.	100-4458M	[1]	BOLT(M8X1.25X14-MM)
22.	100-4841M	[1]	BOLT(M6X1X10-MM)
23.	103-5687M	[1]	BOLT(M10X1.5X85-MM)
24.	111-0859M	[1]	BOLT(M10X1.5X35-MM)
25.	124-3815M	[6]	BOLT(M8X1.25X16-MM)
26.	164-7468M	[2]	BOLT(M10X1.5X95-MM)
27.	6I-0217M	[5]	BOLT(M8X1.25X20-MM)
28.	6I-0254M	[1]	BOLT(M8X1.25X30-MM)
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
