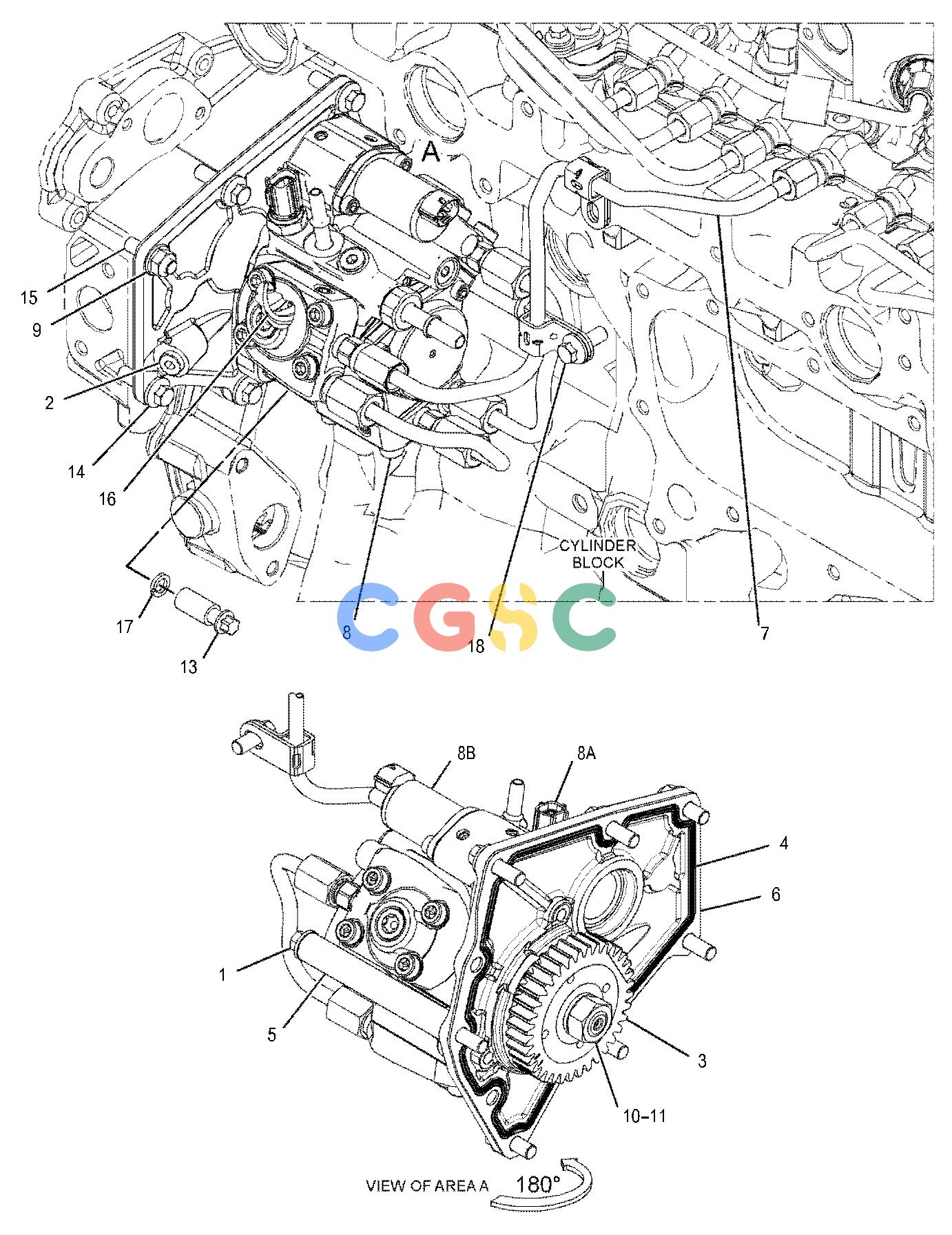

卡特零件查询（AP-1055F） 358-0781: PUMP GP-FUEL INJECTION
广数供应链运营团队, 16 02月, 2025，浏览：
361 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 359-9666M | [1] | BOLT-FLANGE HEAD(M8X1.25X130-MM) | |
| 2. | 277-4223 | [1] | PLUG | |
| 3. | 322-8408 | [1] | GEAR(36-TEETH) | |
| 4. | 330-3036 | [1] | GASKET | |
| 5. | 331-6254 | [1] | SPACER-SPECIAL | |
| 6. | 331-7337 | [1] | PLATE | |
| 7. | 338-8797 | [1] | LINE AS-FUEL | |
| 8. | 368-9041 | [1] | PUMP GP-FUEL INJECTION | |
| 8A. | 337-3905 | [1] | SENSOR-TEMPERATURE(FUEL TEMPERATURE) | |
| 8B. | 358-2586 | [1] | VALVE-CONTROL | |
| 9. | 178-3336M | [2] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 10. | 111-3422M | [1] | NUT(M14X1.5-THD) | |
| 11. | 111-3423 | [1] | WASHER | |
| 13. | 331-6841M | [3] | BOLT(M8X1.25X30-MM) | |
| 14. | 6I-0645M | [4] | BOLT(M8X1.25X25-MM) | |
| 15. | 6I-0840M | [2] | STUD(M8X20-MM) | |
| 16. | 6V-8676 | [1] | SEAL-O-RING | |
| 17. | 5W-1437 | [3] | LOCKWASHER | |
| 18. | 6I-0217M | [1] | BOLT(M8X1.25X20-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 370-8376 | [1] | KIT-FUEL SYSTEM PARTS | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
