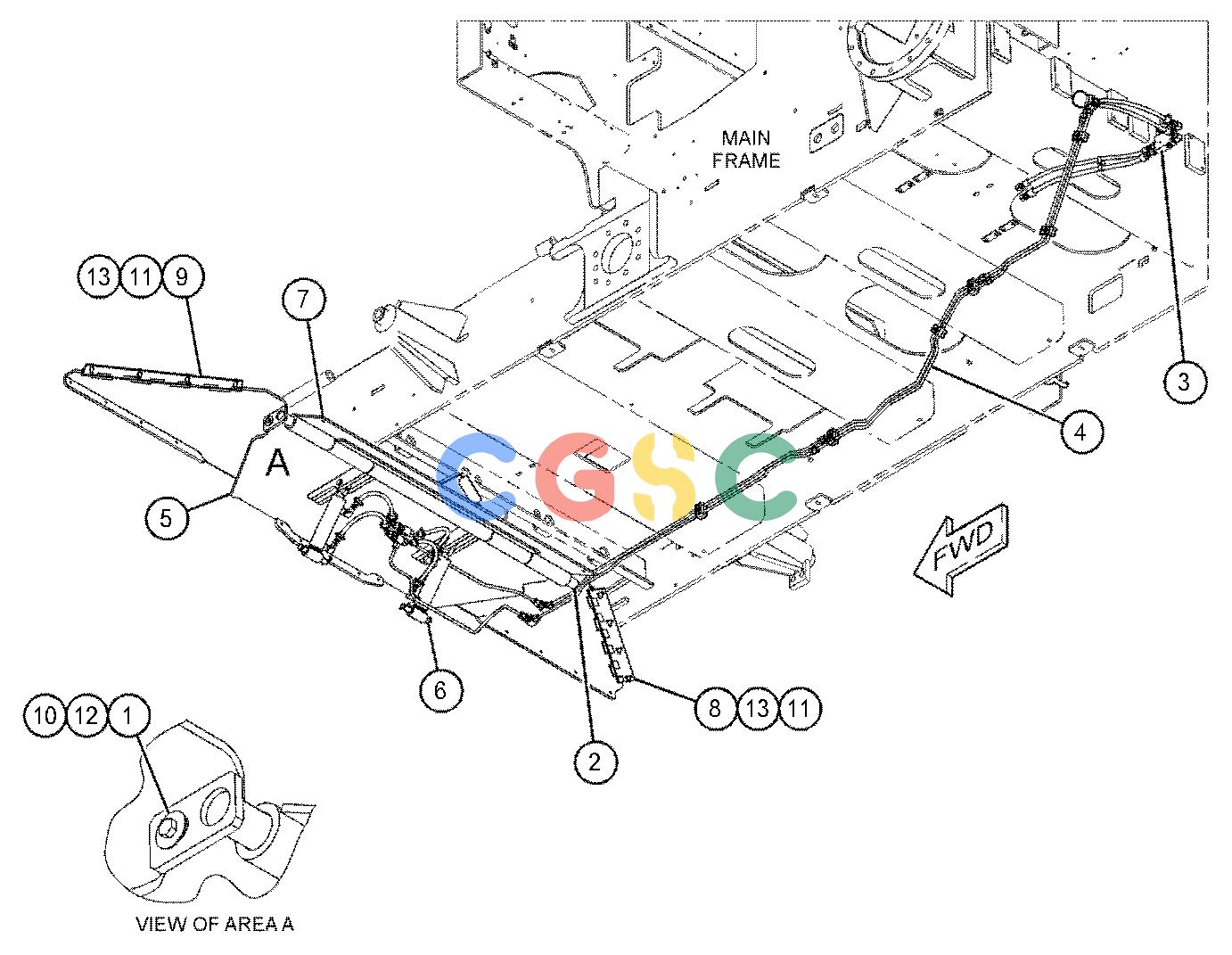

卡特零件查询（AP-1055F） 397-1175: APRON GP
广数供应链运营团队, 16 02月, 2025，浏览：
609 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 377-1521 | [1] | PIN AS | |
| 2. | 459-3932 | [2] | PLATE | |
| 3. | 459-3931 | [2] | FLASHING | |
| 4. | 379-6619 | [1] | PLATE AS | |
| 5. | 463-6569 | [1] | SUPPORT AS | |
| 6. | 433-3025 | [2] | BAR | |
| 7. | 467-4311 | [1] | APRON AS(RH) | |
| 8. | 467-4309 | [1] | APRON AS(LH) | |
| 10. | 7X-2548M | [16] | BOLT(M12X1.75X16-MM) | |
| 11. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 13. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 14. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 16. | 8T-4223 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 18. | 8T-7338M | [2] | BOLT(M16X2X45-MM) | |
| 19. | 8T-7811M | [2] | BOLT-SOCKET HEAD(M12X1.75X50-MM) | |
| 20. | 438-6248 | [2] | FILM-IDENTIFICATION(PANEL) | |
| 21. | 6V-7613M | [16] | SETSCREW-SOCKET(M10X1.5X10-MM) | |
| | M | | METRIC PART |
