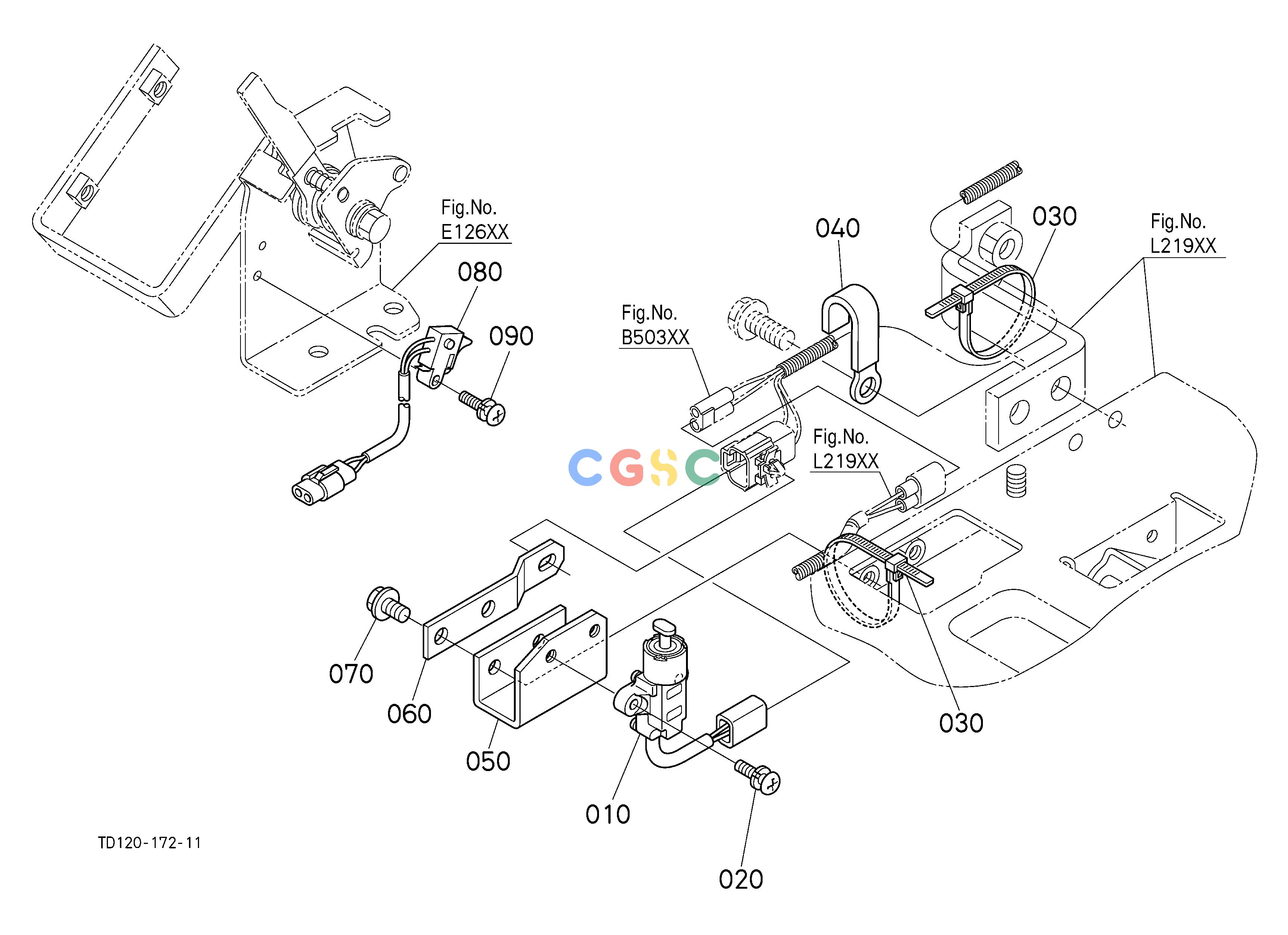

久保田零件查询B10501 SWITCH (REAR) [MANUAL T/M TYPE] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17047920
|
[1] |
SWITCH,SEAT
|
0.2090(lbs); 0.095
|
| 020. |
0302450516
|
[2] |
SCREW,WITH WASHER
|
0.0088(lbs); 0.004
|
| 030. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 040. |
3715034460
|
[1] |
CLAMP,CORD
|
0.0088(lbs); 0.004
|
| 050. |
TD17047552
|
[1] |
STAY,SWITCH
|
0.2530(lbs); 0.115
|
| 060. |
TD17047560
|
[1] |
STAY,HARNESS CLAMP
|
0.0440(lbs); 0.020
|
| 070. |
0175450612
|
[2] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 080. |
T106043900
|
[1] |
SWITCH,LEVER
|
0.0220(lbs); 0.010
|
| 090. |
0302460416
|
[1] |
SCREW,WITH WASHER
|
0.0022(lbs); 0.001
|
