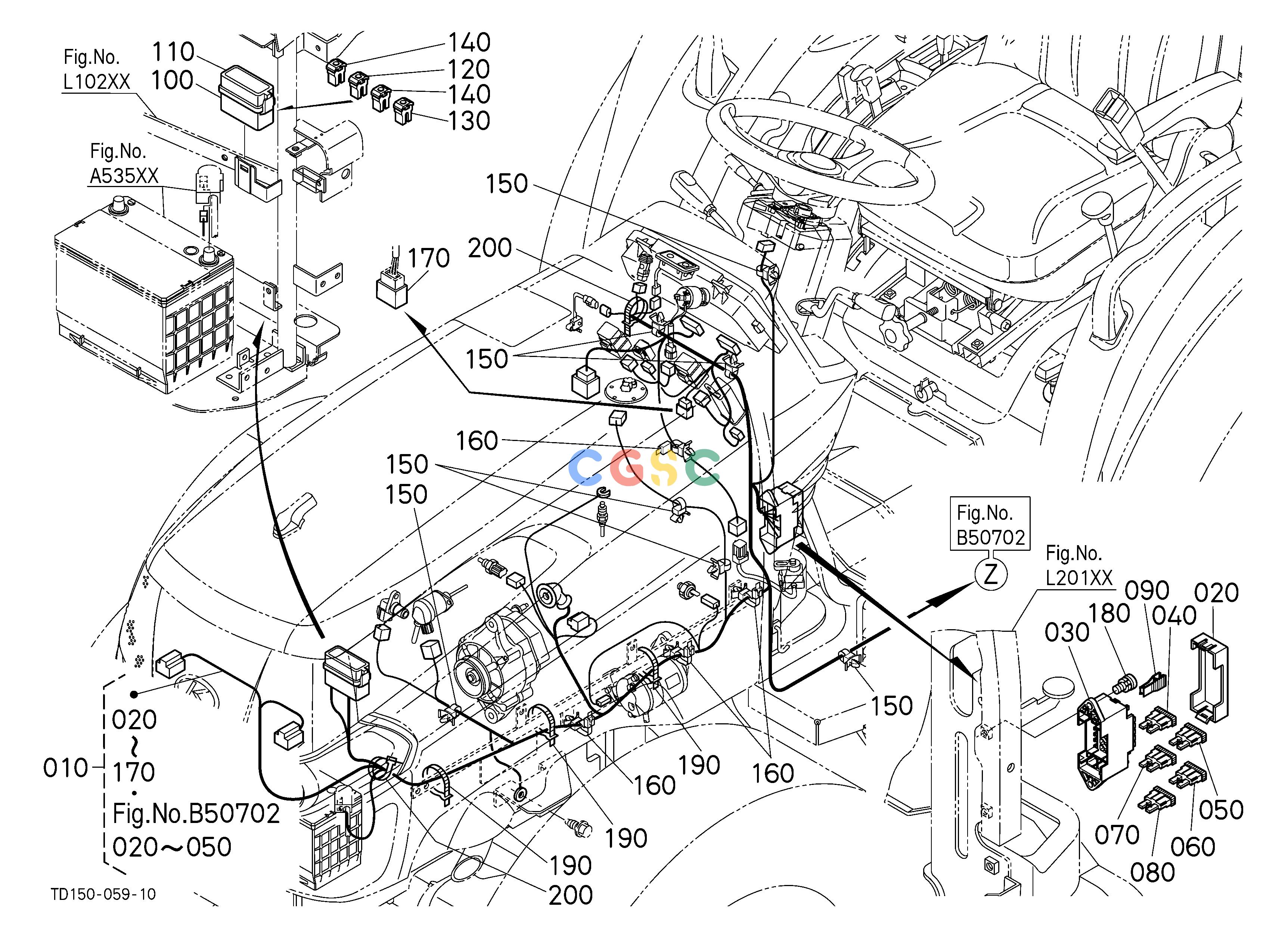

久保田零件查询B50302 ELECTRICAL WIRING (FRONT) [GST TYPE] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
642 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD16030314
|
[1] |
WIRE HARNESS,GST
|
7.0400(lbs); 3.200
|
| 020. |
TD17030410
|
[1] |
COVER,FUSE BOX
|
0.0220(lbs); 0.010
|
| 030. |
T106030420
|
[1] |
CASE,FUSE BOX
|
0.0990(lbs); 0.045
|
| 040. |
T106030430
|
[5] |
FUSE
|
0.0110(lbs); 0.005
|
| 050. |
T115030480
|
[2] |
FUSE
|
0.0044(lbs); 0.002
|
| 060. |
T106030440
|
[3] |
FUSE
|
0.0110(lbs); 0.005
|
| 070. |
T106030450
|
[3] |
FUSE
|
0.0110(lbs); 0.005
|
| 080. |
T106030470
|
[1] |
FUSE
|
0.0110(lbs); 0.005
|
| 090. |
T106030490
|
[1] |
PULLER,FUSE
|
0.0110(lbs); 0.005
|
| 100. |
TD06030610
|
[1] |
CASE
|
0.1320(lbs); 0.060
|
| 110. |
TD06030620
|
[1] |
COVER,FUSE CASE
|
0.0220(lbs); 0.010
|
| 120. |
TD06030510
|
[1] |
FUSE
|
0.0088(lbs); 0.004
|
| 130. |
TD06030520
|
[1] |
FUSE
|
0.0088(lbs); 0.004
|
| 140. |
TD06030530
|
[2] |
FUSE
|
0.0088(lbs); 0.004
|
| 150. |
T106030540
|
[7] |
CLIP
|
0.0220(lbs); 0.010
|
| 160. |
TD06030570
|
[4] |
CLIP
|
0.0066(lbs); 0.003
|
| 170. |
TD06075390
|
[1] |
DIODE
|
0.0044(lbs); 0.002
|
| 180. |
0303450616
|
[2] |
SCREW,WITH WASHER
|
0.0132(lbs); 0.006
|
| 190. |
5531141260
|
[3] |
BAND,CORD
|
0.0154(lbs); 0.007
|
| 200. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
