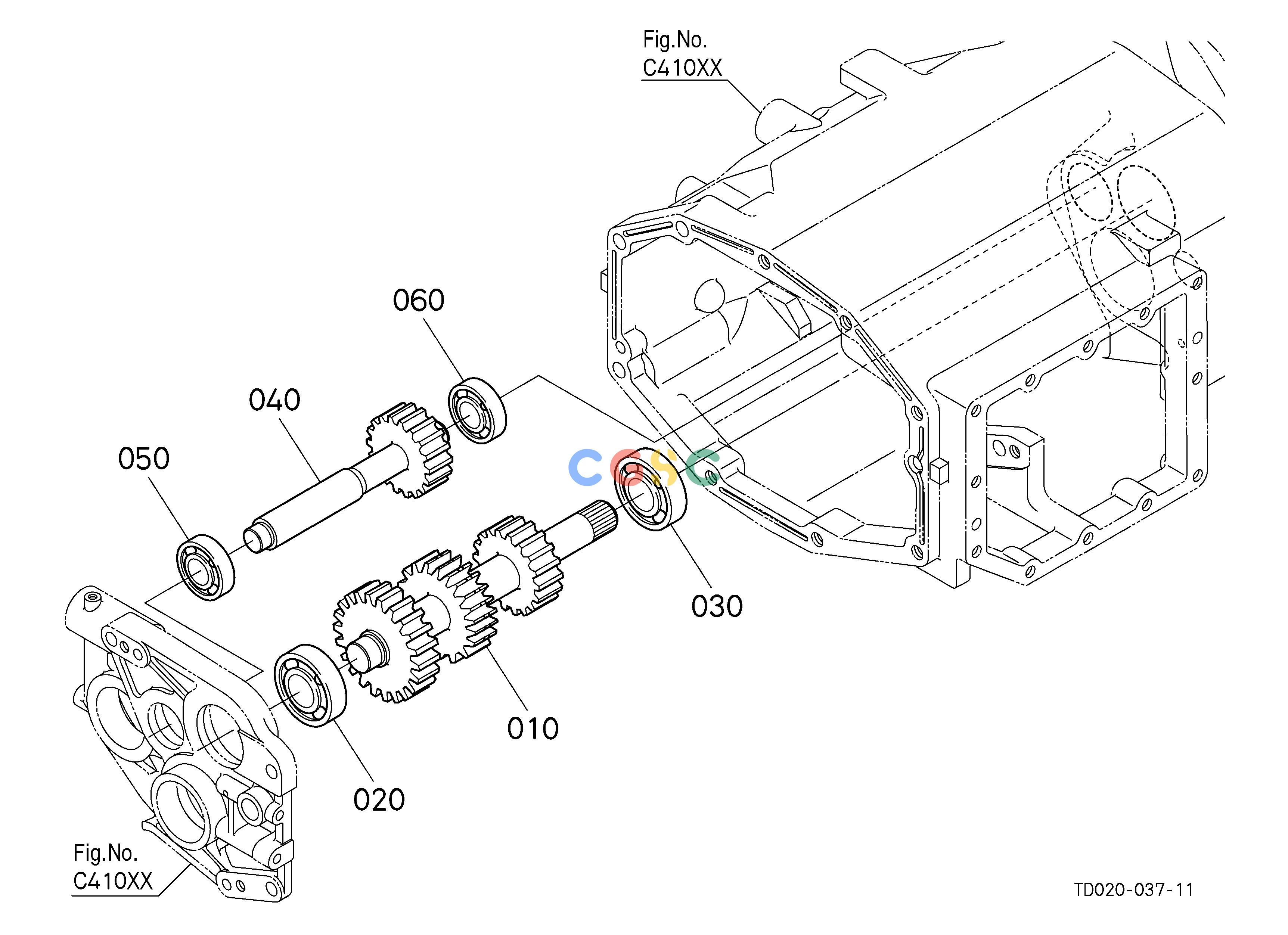

久保田零件查询D11602 REVERSE SHAFT [GST TYPE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
251 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD02062550
|
[1] |
GEAR-SHAFT,SHUTTLE
|
7.2600(lbs); 3.300
|
| 020. |
6444122170
|
[1] |
BEARING,BALL
|
0.5280(lbs); 0.240
|
| 030. |
3589041290
|
[1] |
BEARING,BALL
|
0.5126(lbs); 0.233
|
| 040. |
TD02062580
|
[1] |
GEAR-SHAFT,BACK
|
2.7500(lbs); 1.250
|
| 050. |
0810106204
|
[1] |
BEARING,BALL
|
0.2244(lbs); 0.102
|
| 050. |
6A70016550
|
[1] |
BEARING,BALL
|
0.2200(lbs); 0.100
|
| 060. |
3407022560
|
[1] |
BEARING,BALL
|
0.2200(lbs); 0.100
|
