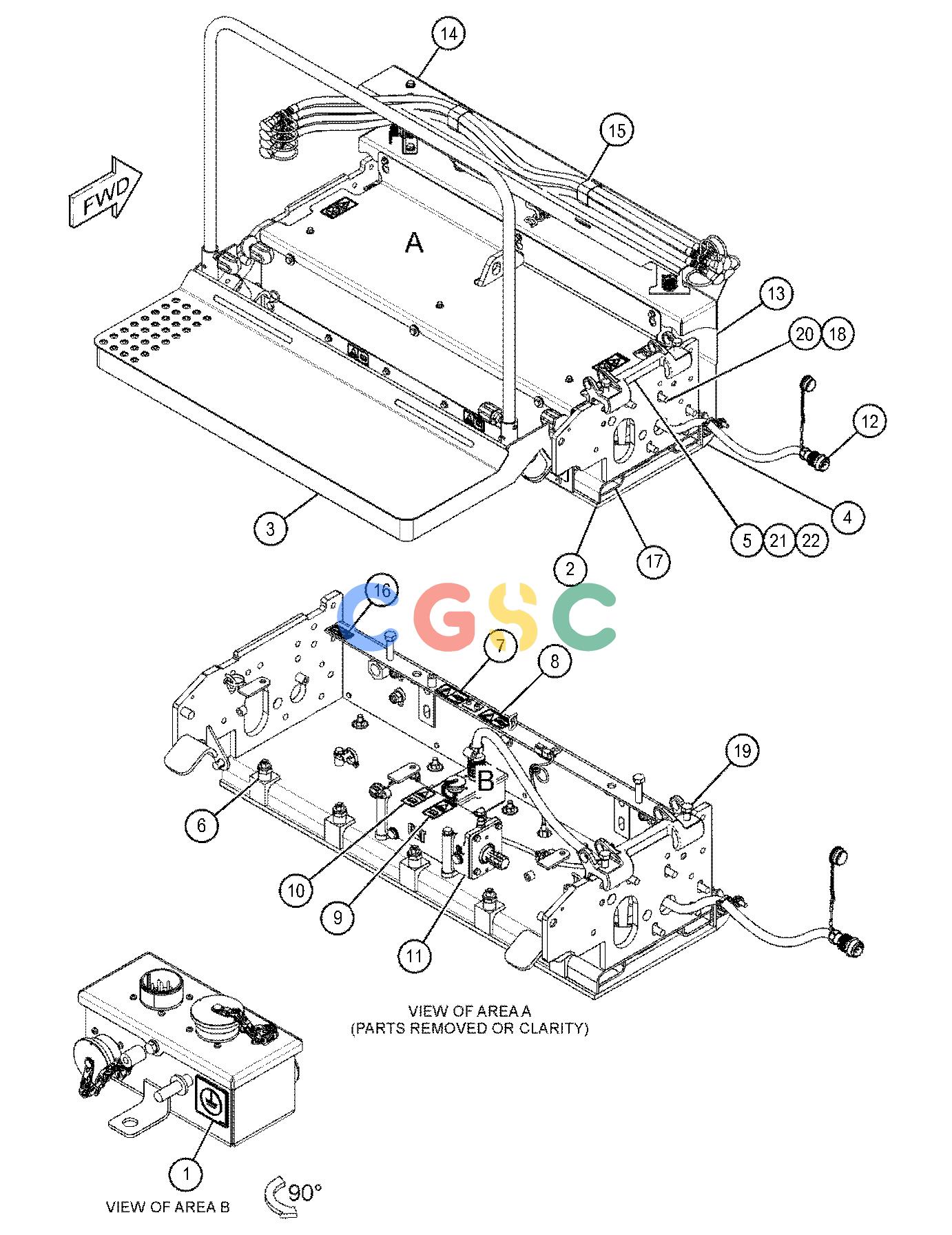

卡特零件查询（AP-1055F） 491-0719: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
643 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 2. | 390-7802Y | [1] | PLATE GP-SCREED | |
| 3. | 390-7805Y | [1] | PLATFORM GP | |
| 4. | 390-7807 | [1] | BAR GP-TAMPER | |
| | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| | 8T-7971 | [4] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| | 396-4263 | [1] | BAR-NOSE | |
| 5. | 393-0646 | [1] | HOOK | |
| 6. | 422-4637M | [5] | NUT(M30X2-THD) | |
| 7. | 424-6098 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 8. | 424-6102 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 9. | 443-3510 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 10. | 443-3511 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 11. | 472-2980Y | [1] | VIBRATORY GP | |
| 12. | 473-9117Y | [1] | WIRING GP-SCREED HEATER | |
| 13. | 480-4955Y | [1] | DEFLECTOR GP | |
| 14. | 480-4958Y | [1] | COVER GP-SCREED | |
| 15. | 482-7002Y | [1] | LINES GP-EXTENSION | |
| 16. | 484-5053 | [2] | FILM-IDENTIFICATION(COUPLER) | |
| 17. | 487-5624 | [1] | FRAME AS | |
| 18. | 198-4780 | [5] | WASHER-HARD(17.5X32X8-MM THK) | |
| 19. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 20. | 8T-4193M | [5] | BOLT(M16X2X50-MM) | |
| 21. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 22. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
