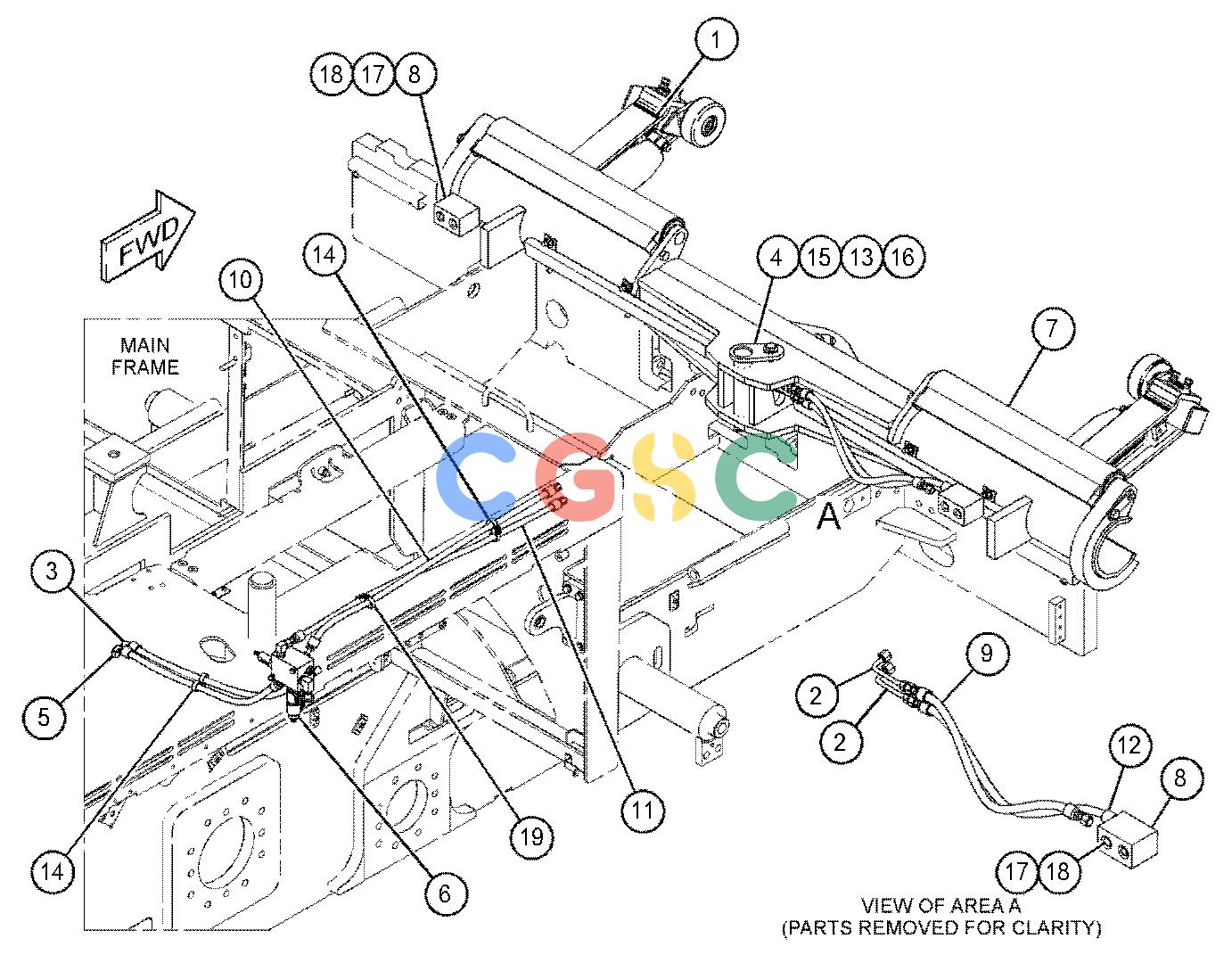

卡特零件查询（AP-1055F） 396-8984: HITCH GP-TRUCK
广数供应链运营团队, 16 02月, 2025，浏览：
372 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0724 | [2] | FILM-INFORMATION(DAILY LUBRICATION POINT) | |
| 2. | 345-8509 | [2] | TUBE AS | |
| 3. | 351-5749I | [1] | HOSE AS | |
| 4. | 378-3750 | [1] | PIN AS | |
| 5. | 384-9524I | [1] | HOSE AS | |
| 6. | 396-7138Y | [1] | VALVE & MTG GP-TRUCK HITCH | |
| 7. | 396-9349Y | [1] | HITCH GP-TRUCK | |
| 8. | 417-8976 | [2] | BLOCK-STOP | |
| 9. | 423-3182I | [1] | HOSE AS | |
| 10. | 423-4883I | [1] | HOSE AS | |
| 11. | 423-4884I | [1] | HOSE AS | |
| 12. | 428-7063I | [1] | HOSE AS | |
| 13. | 120-5737 | [1] | WASHER(17.5X40X4-MM THK) | |
| 14. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 15. | 188-6084 | [1] | SPACER(16.5X30X3.2-MM THK) | |
| 16. | 7X-2553M | [1] | BOLT(M16X2X40-MM) | |
| 17. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4178M | [4] | BOLT(M10X1.5X90-MM) | |
| 19. | 204-2281 | [2] | STRAP-CABLE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
