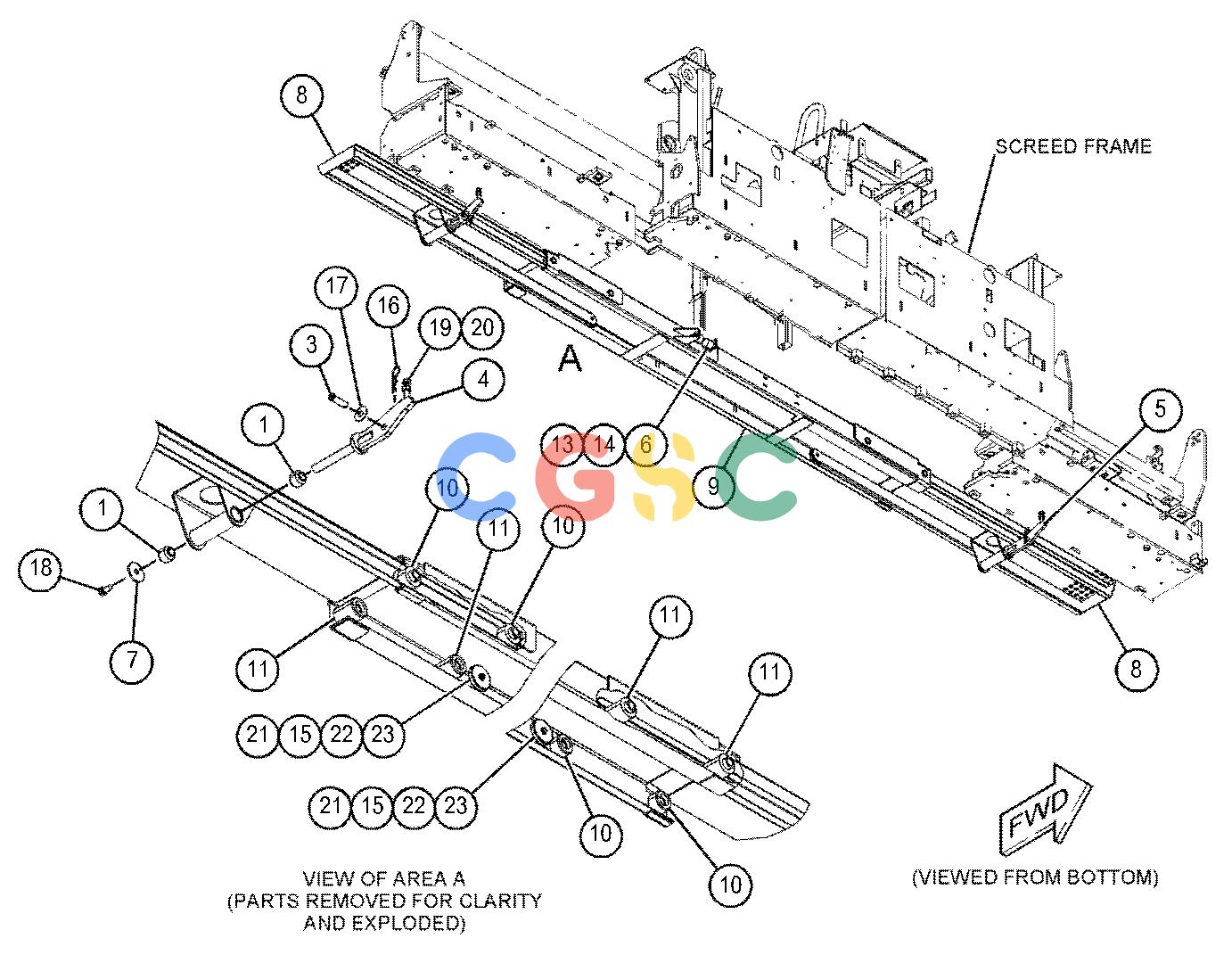

卡特零件查询（AP-1055F） 453-6579: WALKWAY GP
广数供应链运营团队, 16 02月, 2025，浏览：
484 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-5187 | [4] | MOUNTING | |
| 3. | 425-4127 | [2] | PIN | |
| 4. | 436-0156 | [1] | ARM AS-SUPPORT(RH) | |
| 5. | 436-0157 | [1] | ARM AS-SUPPORT(LH) | |
| 6. | 441-6208 | [2] | BUMPER | |
| 7. | 445-7865 | [2] | WASHER(17.5X68X6-MM THK) | |
| 8. | 484-7802 | [2] | WALKWAY AS | |
| 9. | 463-3972 | [1] | WALKWAY AS | |
| 10. | 481-5728 | [4] | ROLLER | |
| 11. | 481-5727 | [4] | ROLLER | |
| 13. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 14. | 384-1628 | [2] | WASHER-HARD(8.8X35X4-MM THK) | |
| 15. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 5P-8837 | [2] | LOCK PIN | |
| 17. | 7X-0564B | [2] | WASHER-HARD(20X51X3-MM THK) | |
| 18. | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| 19. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 20. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 21. | 9X-2616M | [4] | SCREW-SOCKET(M8X1.25X16-MM) | |
| 22. | 476-3239 | [4] | PIN | |
| 23. | 476-3240 | [4] | ROLLER | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
