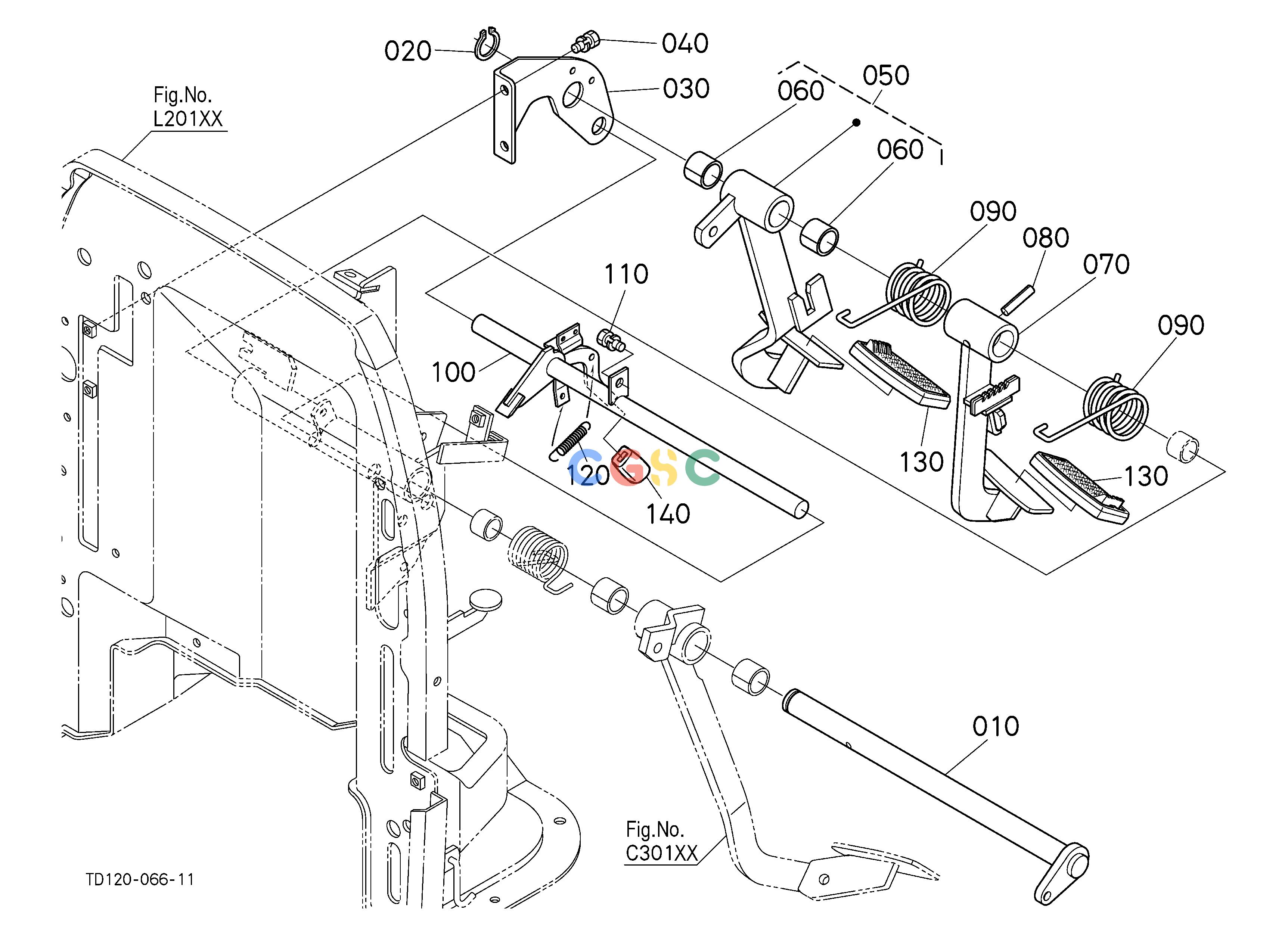

久保田零件查询E20101 BRAKE PEDAL REAR AXLE/BRAKEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06044010
|
[1] |
SHAFT,PEDAL
|
3.8940(lbs); 1.770
|
| 020. |
0461200250
|
[1] |
CIR CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 030. |
3407044074
|
[1] |
SUPPORT,PEDAL SHAFT
|
0.5610(lbs); 0.255
|
| 040. |
0112360816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 050. |
TD06044100
|
[1] |
ASSY PEDAL,BRAKE RH
|
3.2120(lbs); 1.460
|
| 060. |
TD06044080
|
[2] |
BUSH
|
0.0396(lbs); 0.018
|
| 070. |
TA04044116
|
[1] |
PEDAL,BRAKE LH
|
2.9040(lbs); 1.320
|
| 080. |
0541100840
|
[1] |
PIN,SPRING
|
0.0176(lbs); 0.008
|
| 090. |
3407044170
|
[2] |
SPRING
|
0.1760(lbs); 0.080
|
| 100. |
TD06044000
|
[1] |
COMP.LOCK,PARKING
|
2.2110(lbs); 1.005
|
| 110. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 120. |
3633083420
|
[1] |
SPRING,LOCK
|
0.0132(lbs); 0.006
|
| 130. |
T205044120
|
[2] |
COVER,PEDAL
|
0.1540(lbs); 0.070
|
| 140. |
TA14043560
|
[1] |
GRIP
|
0.0484(lbs); 0.022
|
