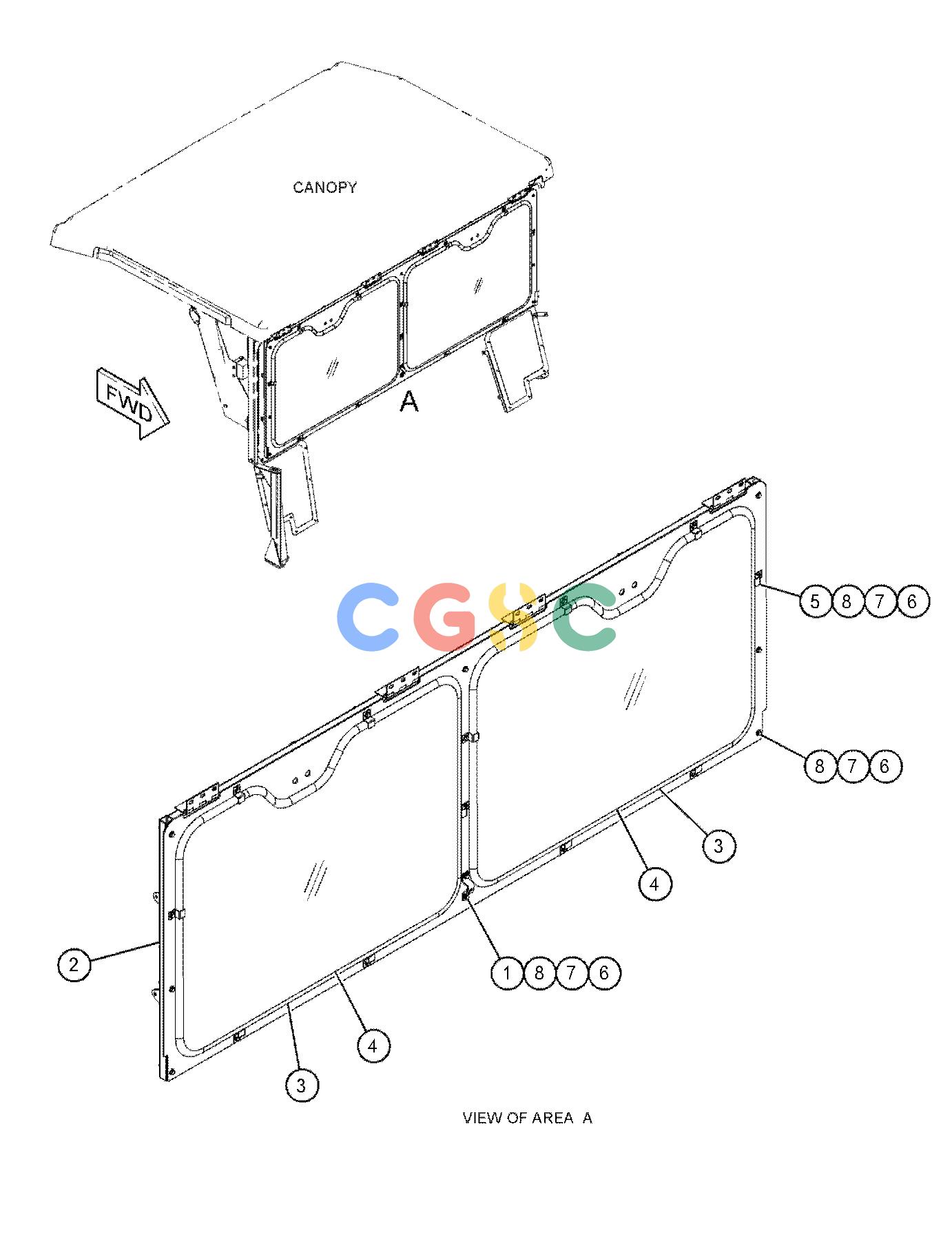

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 370-9521 | [1] | BRACKET AS | |
| 2. | 425-1224 | [1] | FRAME AS | |
| 7T-1099 | [2] | LINK | ||
| 130-5300 | [2] | CLIP | ||
| 459-2966 | [1] | TUBE | ||
| 3. | 3E-9413E | SEAL(448-CM EACH) | ||
| 4. | 425-1226 | [2] | WINDOW | |
| 5. | 439-7166 | [12] | BRACKET | |
| 6. | 344-5674M | [21] | NUT(M8X1.25-THD) | |
| 7. | 5P-4116 | [42] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 8T-6869M | [21] | BOLT(M8X1.25X60-MM) | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
