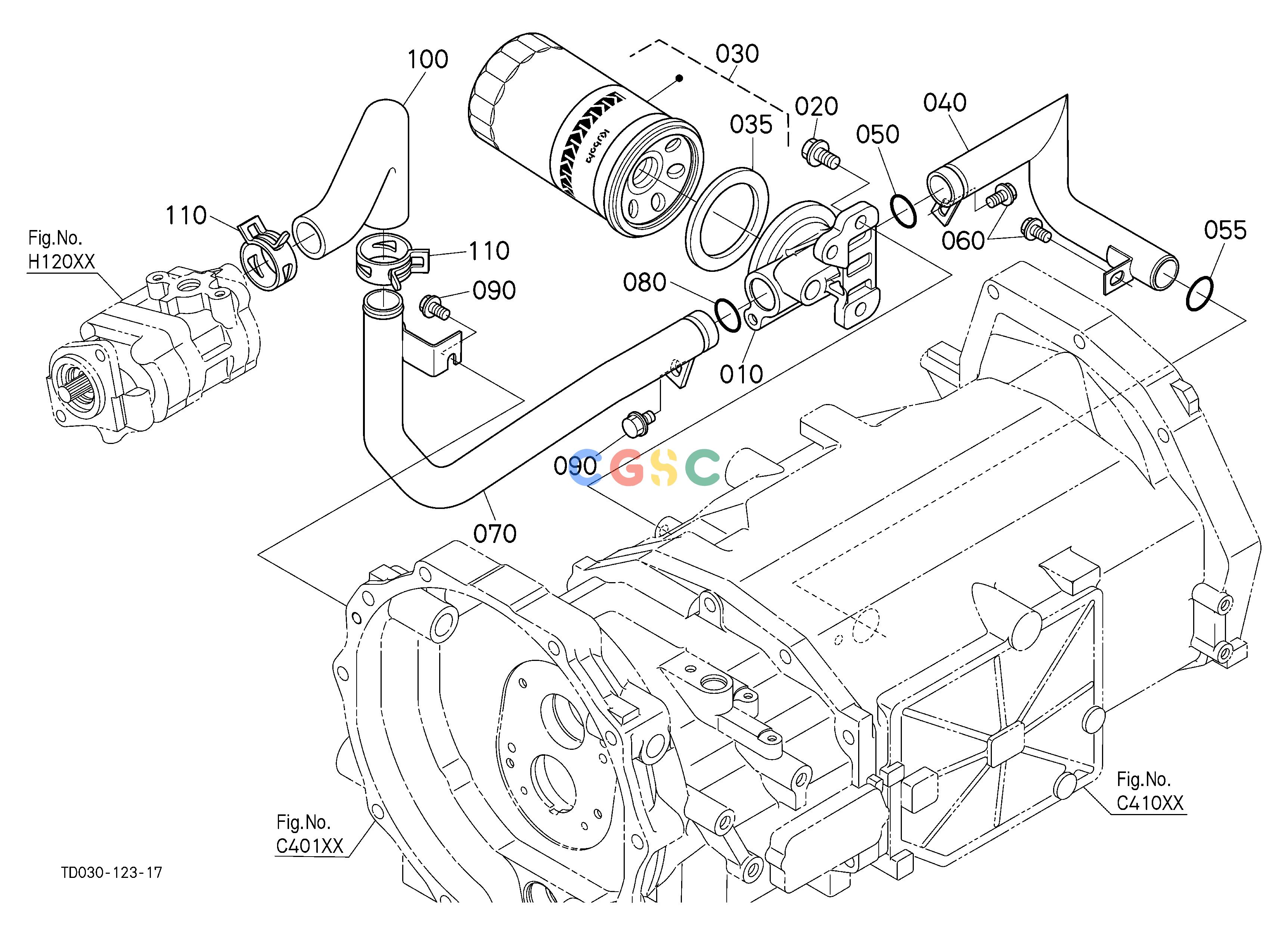

久保田零件查询H20501 HYDRAULIC OIL LINE (INLET) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T007033215
|
[1] |
BRACKET,FILTER
|
1.1770(lbs); 0.535
|
| 020. |
0177461020
|
[2] |
BOLT,FLANGE
|
0.0484(lbs); 0.022
|
| 030. |
TA04037710
|
[1] |
CARTRIDGE,OIL FILTE.
|
1.6060(lbs); 0.730
|
| 030. |
HHTA037710
|
[1] |
CARTRIDGE,OIL FILTE.
|
1.6060(lbs); 0.730
|
| 035. |
T007037720
|
[1] |
MAGNET,OIL FILTER
|
0.0880(lbs); 0.040
|
| 040. |
TD06033310
|
[1] |
PIPE,INLET
|
0.5280(lbs); 0.240
|
| 050. |
0481607230
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 055. |
0481600290
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 060. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
TD03033320
|
[1] |
PIPE,INLET
|
0.9680(lbs); 0.440
|
| 080. |
0481607230
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 100. |
T106033340
|
[1] |
HOSE,INLET
|
0.3080(lbs); 0.140
|
| 110. |
1624172970
|
[2] |
BAND,PIPE
|
0.0330(lbs); 0.015
|
