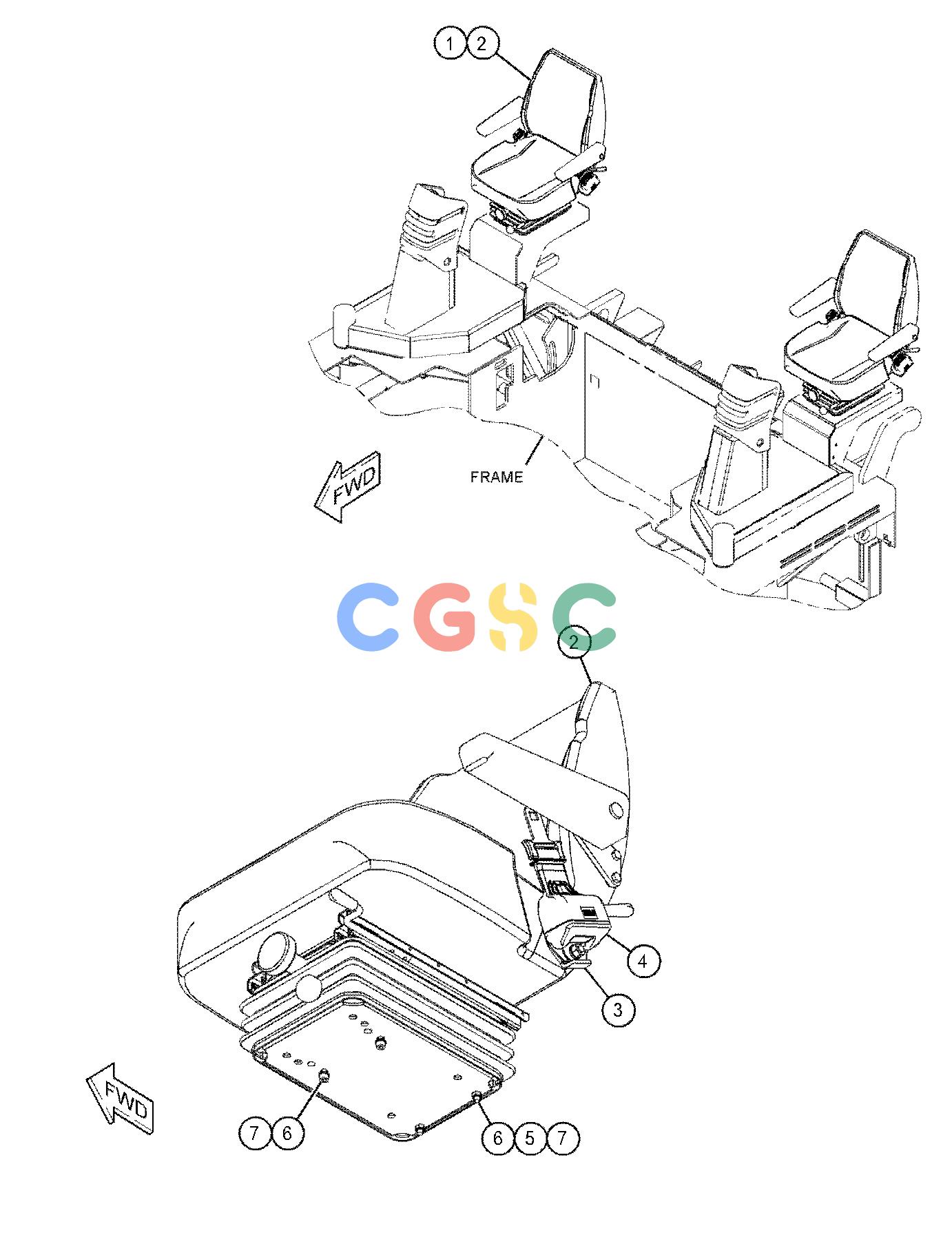

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 2. | 235-3151Y | [2] | SEAT GP-SUSPENSION(VINYL) | |
| 3. | 236-5056 | [2] | FASTENER GP-SEAT(VINYL) | |
| 4. | 353-5341Y | [2] | SEAT BELT GP(RETRACTABLE, 2-IN) | |
| 5. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 6. | 5A-3604M | [8] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 7. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
