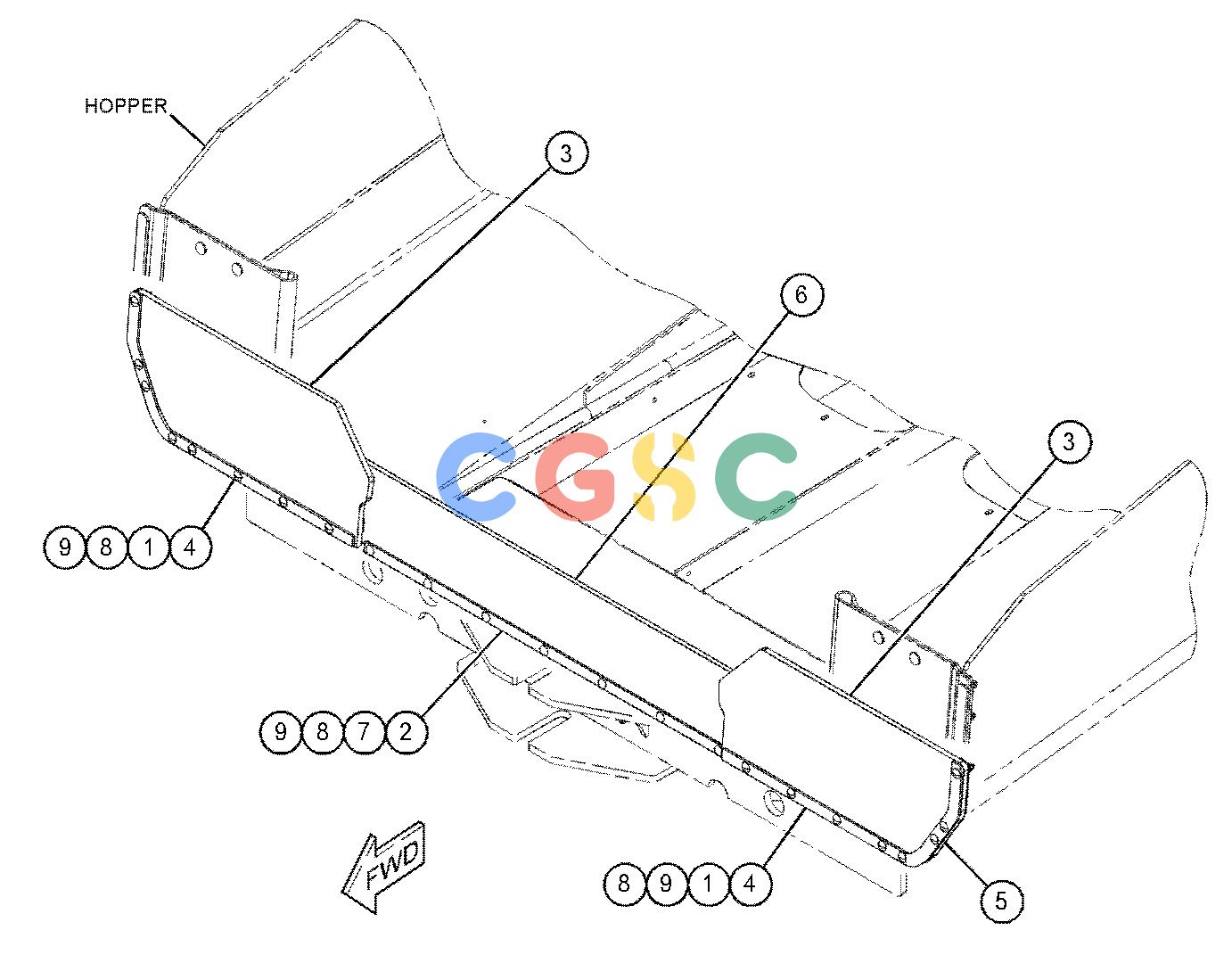

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 252-6307M | [16] | BOLT-CARRIAGE(M12X1.75X65-MM) | |
| 2. | 338-1638 | [1] | BAR | |
| 3. | 459-6761 | [2] | FLASHING | |
| 4. | 459-6762 | [2] | PLATE | |
| 5. | 459-6763 | [4] | SHIM | |
| 6. | 459-6764 | [1] | FLASHING | |
| 7. | M | [7] | BOLT-CARRIAGE(M12X1.75X60-MM) | |
| 8. | 329-3356M | [23] | NUT(M12X1.75-THD) | |
| 9. | 8T-4223 | [23] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
