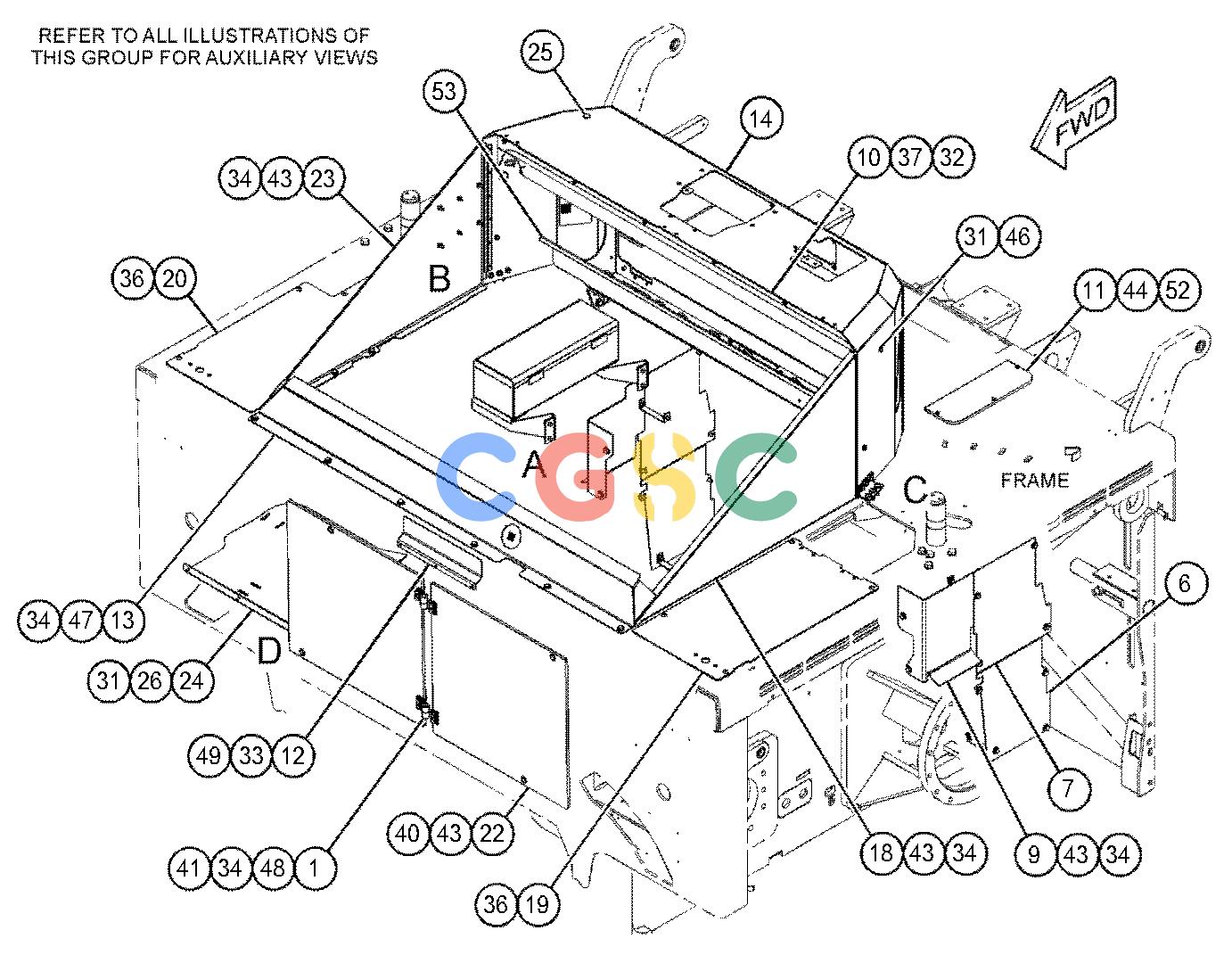

卡特零件查询（AP-1055F） 382-9765: COVER GP-PLATFORM
广数供应链运营团队, 16 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-3630 | [4] | HINGE AS | |
| 2. | 8W-0791 | [1] | BOX AS-TOOL | |
| 3. | 232-6146 | [4] | PLATE AS | |
| 4. | 270-4280 | [2] | BRACKET AS | |
| 5. | 343-1821 | [2] | BRACKET | |
| 6. | 343-7725 | [2] | COVER | |
| 7. | 344-9352 | [2] | COVER | |
| 8. | 344-9353 | [1] | COVER | |
| 9. | 344-9354 | [1] | COVER | |
| 10. | 347-1750 | [1] | BAFFLE | |
| 11. | 348-1785 | [2] | PLATE | |
| 12. | 359-1789 | [1] | PLATE | |
| 13. | 399-2474 | [1] | COVER AS | |
| | 7T-1099 | [2] | LINK | |
| 14. | 416-4141 | [1] | PLATE AS | |
| | 6V-9632M | [14] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [14] | LINK | |
| | 8T-3490M | [22] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 091-4537M | [1] | BOSS-THREADED(M6X1X12-MM) | |
| | 165-8718M | [6] | NUT-WELD(M4X0.7-THD) | |
| | 361-5420 | [3] | CLIP | |
| 15. | 417-5048 | [1] | COVER-RUBBER | |
| 16. | 422-8402 | [2] | PLATE | |
| 17. | 423-7151 | [2] | BRACKET | |
| 18. | 423-7757 | [1] | COVER AS | |
| | 7T-1099 | [5] | LINK | |
| 19. | 424-3502 | [1] | COVER AS | |
| 20. | 424-3503 | [1] | COVER AS | |
| | | | (EACH COVER AS INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 130-5300 | [1] | CLIP | |
| 21. | 433-1369 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 22. | 450-3007 | [2] | PLATE | |
| 23. | 457-9104 | [1] | COVER AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 24. | 464-4779 | [1] | FENDER | |
| 25. | 055-2102 | [1] | PLUG | |
| 26. | 127-2170M | [2] | SCREW-TRUSS HEAD(M8X1.25X20-MM) | |
| 27. | 281-2901M | [6] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 28. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 29. | 4F-8711 | [1] | PLUG-BUTTON | |
| 30. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 31. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 32. | 6V-8490M | [6] | BOLT(M6X1X25-MM) | |
| 33. | 7X-2536M | [3] | BOLT(M8X1.25X14-MM) | |
| 34. | 7X-7729 | [82] | WASHER(11X25X3-MM THK) | |
| 35. | 7Y-7394M | [4] | SCREW-BUTTON HEAD(M8X1.25X25-MM) | |
| 36. | 8C-8585M | [18] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 37. | 8R-9645 | [6] | WASHER(6.6X30X5-MM THK) | |
| 38. | 8T-3991M | [2] | SCREW-BUTTON HEAD(M6X1X20-MM) | |
| 39. | 8T-3998M | [4] | BOLT(M4X0.7X12-MM) | |
| 40. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4133M | [16] | NUT(M10X1.5-THD) | |
| 42. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 43. | 8T-4137M | [30] | BOLT(M10X1.5X20-MM) | |
| 44. | 8T-4138M | [8] | BOLT(M6X1X20-MM) | |
| 45. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 46. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 47. | 8T-4191M | [6] | BOLT(M10X1.5X16-MM) | |
| 48. | 8T-4196M | [12] | BOLT(M10X1.5X35-MM) | |
| 49. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 50. | 8T-4908M | [3] | BOLT(M8X1.25X25-MM) | |
| 51. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| 52. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 53. | 5P-5930D | | SEAL(1.6-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
