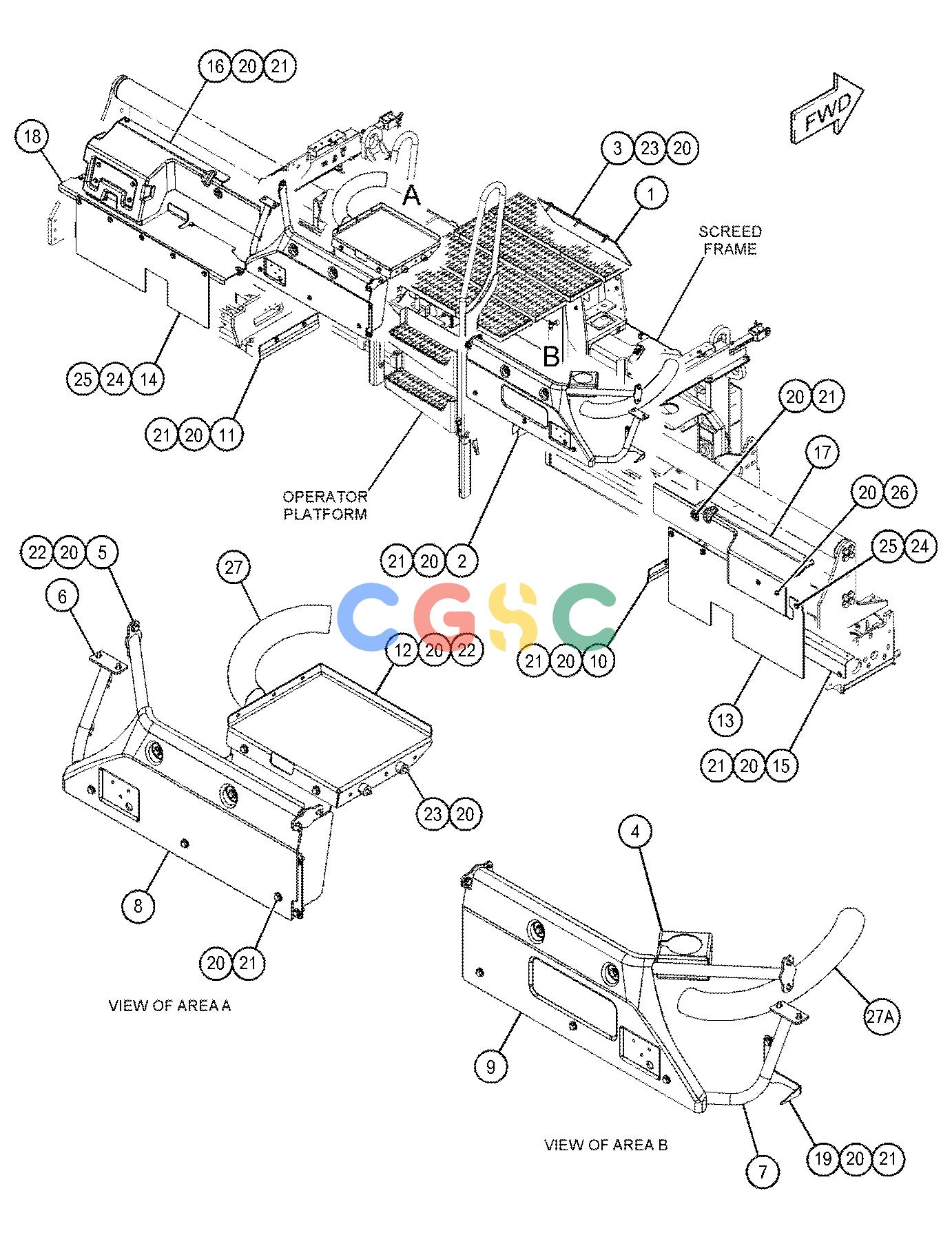

卡特零件查询（AP-1055F） 473-3309: COVER GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
832 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 399-1702 | [1] | COVER-RUBBER | |
| 2. | 556-7359 | [2] | PLATE | |
| 3. | 441-6244 | [1] | PLATE | |
| 4. | 454-0132 | [1] | TUBE AS | |
| 5. | 454-0133 | [1] | TUBE AS | |
| 6. | 454-0135 | [1] | TUBE AS | |
| 7. | 454-0136 | [1] | TUBE AS | |
| 8. | 454-0139 | [1] | COVER(REAR LH) | |
| 9. | 454-0140 | [1] | COVER(REAR RH) | |
| 10. | 517-8178 | [1] | COVER(RH)(EXTENDER) | |
| 11. | 517-8177 | [1] | COVER(LH)(EXTENDER) | |
| 12. | 463-3985 | [1] | PLATE AS | |
| | 1W-8793 | [2] | SPACER(13.8X30X20-MM THK) | |
| 13. | 464-0559 | [1] | COVER-RUBBER | |
| 14. | 464-0560 | [1] | COVER-RUBBER | |
| 15. | | [2] | COVER |
| 16. | 473-2328 | [1] | COVER(LH) | |
| 17. | 473-2329 | [1] | COVER(RH) | |
| 18. | 475-7532 | [1] | COVER AS | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| 19. | 484-1092 | [1] | BRACKET | |
| 20. | 7X-7729 | [57] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4136M | [36] | BOLT(M10X1.5X25-MM) | |
| 22. | 8T-4137M | [18] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4186M | [5] | BOLT(M10X1.5X40-MM) | |
| 24. | 8T-4191M | [10] | BOLT(M10X1.5X16-MM) | |
| 25. | 8T-4222 | [10] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 26. | 9X-2040M | [2] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 27. | 451-5814E | | GUARD(65-CM) | |
| 27A. | 451-5814E | | GUARD(80-CM) | |
| 28. | 8T-4226 | [4] | WASHER-PLATED(10.5X45X3-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
