卡特零件查询（AP-1055F） 453-7187: DEFLECTOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
130 次

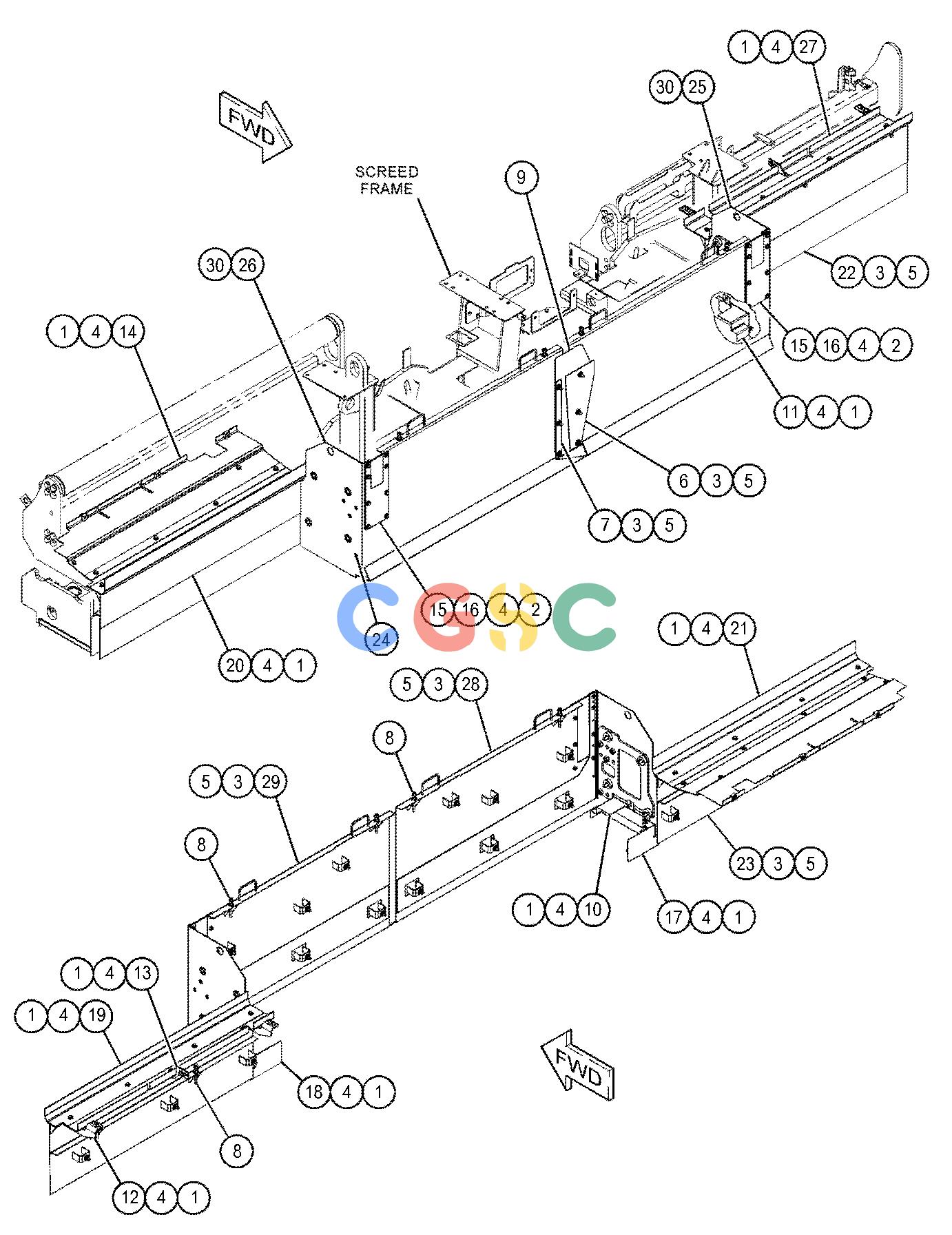

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4136M | [34] | BOLT(M10X1.5X25-MM) | |
| 2. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 3. | 5P-1076 | [24] | WASHER-HARD(13.5X30X4-MM THK) | |
| 4. | 7X-7729 | [50] | WASHER(11X25X3-MM THK) | |
| 5. | 129-3180M | [24] | LOCKNUT(M12X1.75-THD) | |
| 6. | 415-8167 | [1] | PLATE | |
| 7. | 415-8168 | [1] | PLATE | |
| 8. | 416-8165 | [8] | ROD AS-ADJUSTING | |
| | | | (EACH INCLUDES) |
| | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| | 156-4522 | [2] | WASHER-HARD(14X30X3-MM THK) | |
| 9. | 416-8177 | [1] | COVER | |
| 10. | 452-3381 | [1] | COVER(RH) | |
| 11. | 452-3382 | [1] | COVER(LH) | |
| 12. | 462-3991 | [2] | BRACKET AS | |
| 13. | 462-4051 | [1] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 14. | 462-4825 | [1] | COVER AS(EXTENDER, RH) | |
| | 8X-5147M | [3] | BLOCK(M10X1.5-MM) | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 15. | 475-1032 | [2] | PLATE-COVER | |
| 16. | 475-1033 | [2] | COVER-RUBBER | |
| 17. | 475-1101 | [1] | COVER AS(RH) | |
| 18. | 475-1102 | [1] | COVER AS(LH) | |
| 19. | 475-9558 | [1] | COVER | |
| 20. | 475-9559 | [1] | COVER AS | |
| 21. | 475-9561 | [1] | COVER | |
| 22. | 477-2967 | [1] | DEFLECTOR AS | |
| 23. | 477-2968 | [1] | DEFLECTOR AS | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 112-9073M | [3] | STUD-WELD(M12X1.75X21.1-MM) | |
| 24. | 479-6661M | [8] | SETSCREW(M16X2X30-MM) | |
| 25. | 481-9951 | [1] | PLATE AS(LH) | |
| 26. | 481-9952 | [1] | PLATE AS(RH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 9R-2672M | [2] | BOSS-THREADED(M10X1.5X120-MM) | |
| | 355-8941M | [4] | NUT-WELD(M16X2-THD) | |
| 27. | 492-1866 | [1] | COVER AS | |
| 28. | 496-2298 | [1] | DEFLECTOR AS(MAIN, RH) | |
| 29. | 496-2299 | [1] | DEFLECTOR AS(MAIN, LH) | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 112-9073M | [9] | STUD-WELD(M12X1.75X21.1-MM) | |
| 30. | 342-9917M | [8] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| | M | | METRIC PART |
