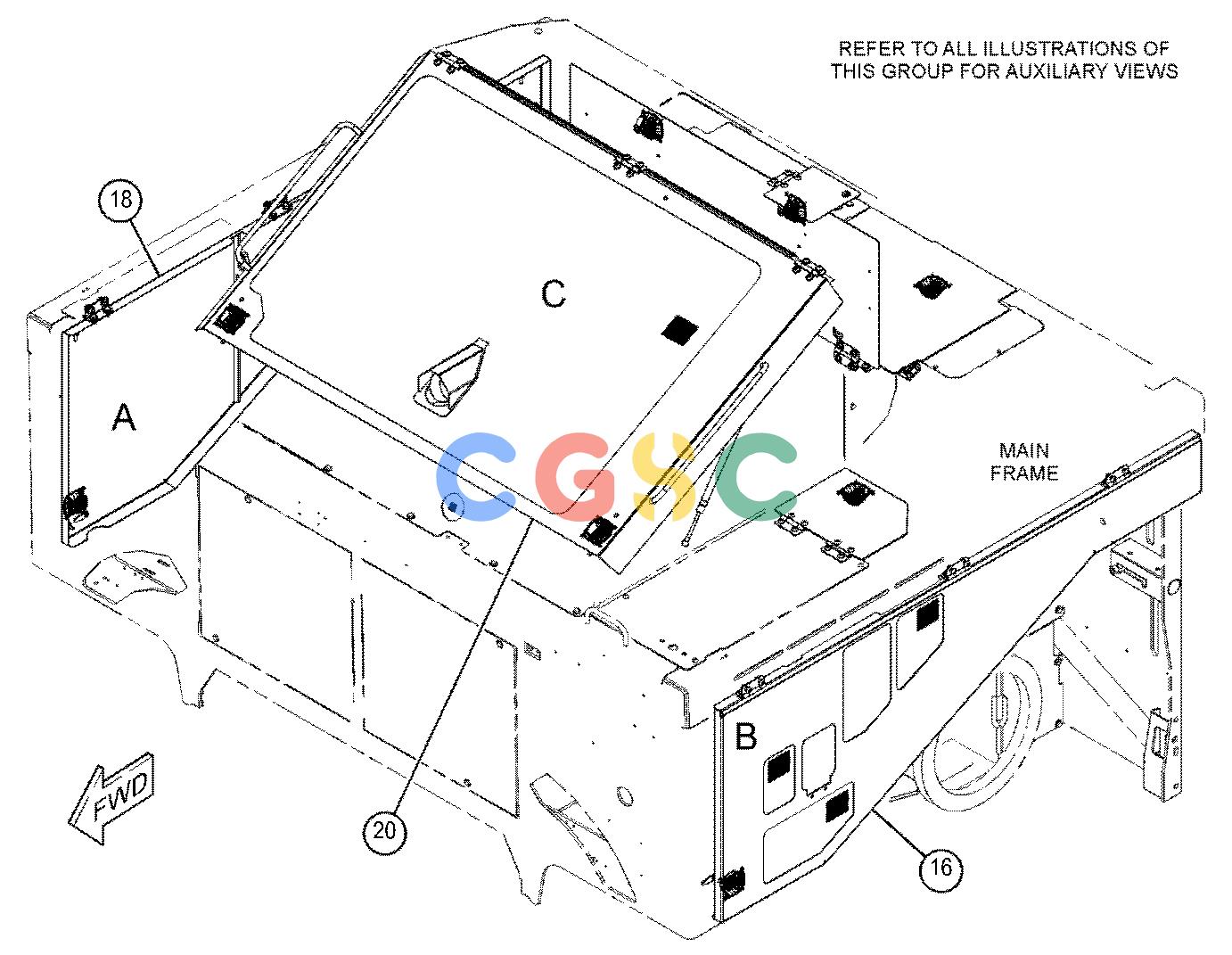

卡特零件查询（AP-1055F） 382-9766: DOOR GP-ACCESS
广数供应链运营团队, 16 02月, 2025，浏览：
942 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2T-1718 | [4] | RETAINER | |
| 2. | 9G-5582 | [1] | LOCK AS-CYLINDER | |
| | 226-0294J | [1] | LOCK AS | |
| | 226-0340 | [1] | CAM | |
| 3. | 108-7756 | [2] | ROD | |
| 4. | 111-1777 | [4] | BUMPER-RUBBER | |
| 5. | 119-9706 | [2] | STUD-BALL | |
| 6. | 140-6500 | [2] | SPRING-GAS | |
| 7. | 142-6950 | [10] | HINGE AS | |
| 8. | 193-9297 | [1] | PLATE(BENT) | |
| 9. | 294-2382 | [6] | LATCH AS | |
| 10. | 305-3159 | [3] | PAWL | |
| 11. | 305-3169 | [5] | PAWL | |
| 12. | 333-6459 | [2] | BRACKET | |
| 14. | 352-2979J | [2] | LATCH AS | |
| | | | (EACH INCLUDES) |
| | 5C-2890M | [4] | NUT(M6X1-THD) | |
| | 1H-3244 | [4] | LOCKWASHER | |
| | 160-8499M | [2] | NUT(M12X1.5-THD) | |
| | 326-0612 | [2] | WASHER-TAB | |
| 15. | 361-8178 | [1] | STRIP | |
| 16. | 512-1459 | [1] | PANEL AS(LH) | |
| 17. | 399-2461 | [8] | HINGE AS | |
| 18. | 469-2850 | [1] | PANEL AS(RH) | |
| | 110-2023M | [2] | STUD-WELD(M10X1.5X25-MM) | |
| 19. | 399-2464 | [2] | BAR | |
| 20. | 399-2465 | [1] | DOOR AS-ACCESS | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| 21. | 399-2470 | [6] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 22. | 399-2475 | [1] | PLATE | |
| 23. | 399-2477 | [1] | PLATE | |
| 24. | 399-2478 | [3] | SPACER | |
| 25. | 399-2479 | [1] | COVER AS | |
| | 7T-1099 | [4] | LINK | |
| | 091-4537M | [1] | BOSS-THREADED(M6X1X12-MM) | |
| | 361-5420 | [1] | CLIP | |
| 26. | 399-2481 | [1] | COVER AS | |
| 27. | 399-2483 | [1] | COVER AS | |
| 28. | 399-2485 | [4] | SPACER | |
| 30. | 3B-4617 | [2] | PIN-COTTER | |
| 31. | 5C-9853M | [4] | SCREW(M8X1.25-THD) | |
| 32. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 33. | 7X-7729 | [86] | WASHER(11X25X3-MM THK) | |
| 34. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4133M | [52] | NUT(M10X1.5-THD) | |
| 36. | 8T-4137M | [12] | BOLT(M10X1.5X20-MM) | |
| 37. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 38. | 8T-4199M | [2] | BOLT(M8X1.25X12-MM) | |
| 39. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 40. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 41. | 9X-2040M | [38] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 42. | 9X-2041M | [22] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 43. | 5P-6410D | | SEAL(1.6-M) | |
| 44. | 5P-7211D | | SEAL(0.8-M EACH) | |
| 44A. | 5P-7211D | | SEAL(0.04-M EACH) | |
| 44B. | 5P-7211D | | SEAL(1.5-M) | |
| | D | | ORDER BY THE METER |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
