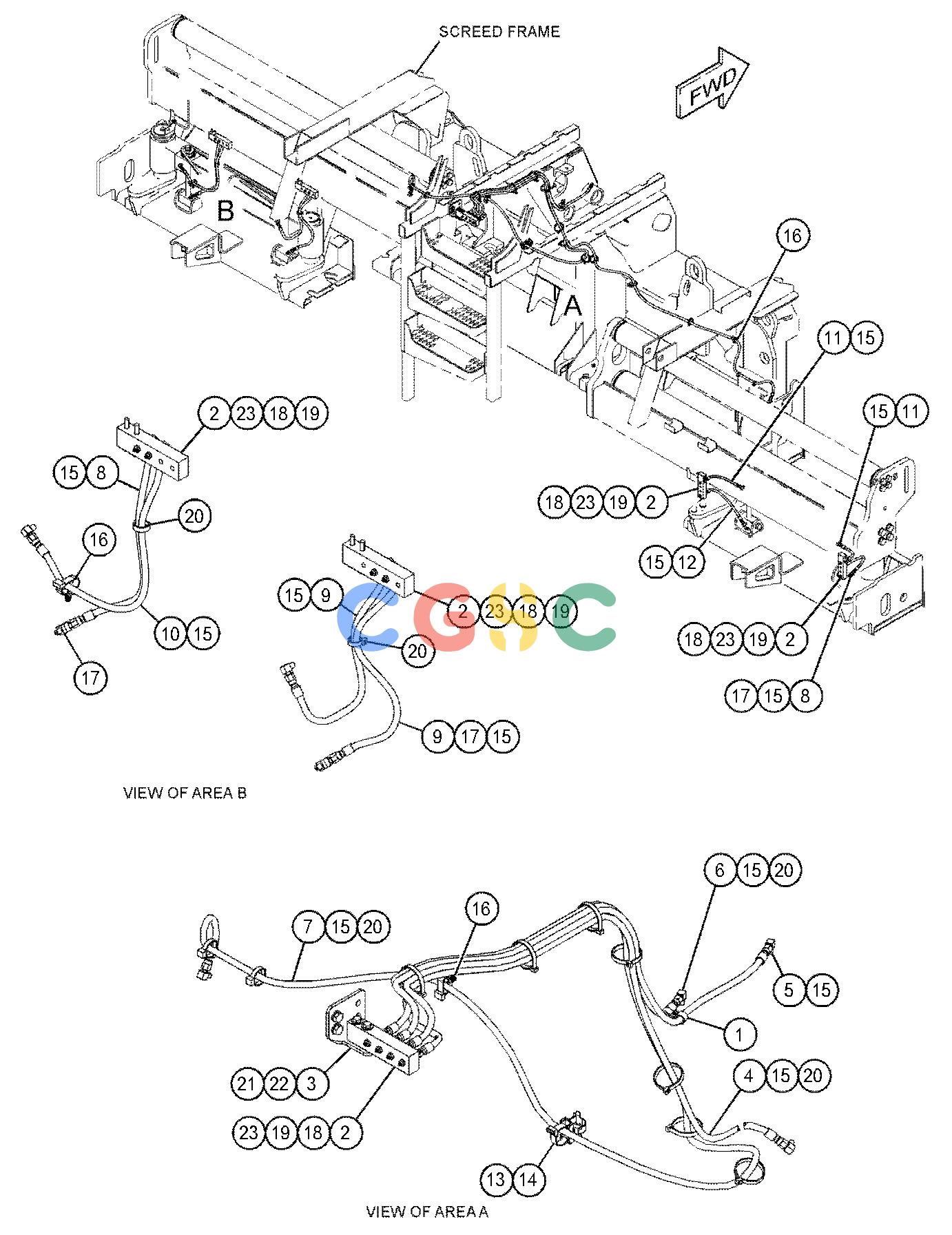

卡特零件查询（AP-1055F） 390-4836: LINES GP-GREASE
广数供应链运营团队, 16 02月, 2025，浏览：
400 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 2. | 417-0623 | [5] | PLATE | |
| 3. | 425-0377 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 4. | 425-2191I | [1] | HOSE AS | |
| 5. | 425-2195I | [1] | HOSE AS | |
| 6. | 425-2196I | [1] | HOSE AS | |
| 7. | 425-2197I | [1] | HOSE AS | |
| 8. | 425-2203I | [2] | HOSE AS | |
| 9. | 425-2205I | [2] | HOSE AS | |
| 10. | 425-2207I | [1] | HOSE AS | |
| 11. | 425-2208I | [2] | HOSE AS | |
| 12. | 425-2209I | [1] | HOSE AS | |
| 13. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 14. | 204-2281 | [2] | STRAP-CABLE | |
| 15. | 2D-1683 | [14] | FITTING(1/8-27 PTF)(90-DEG) | |
| 16. | 327-0325 | [3] | STRAP-CABLE | |
| 17. | 3B-7896 | [3] | ELBOW-STREET | |
| 18. | 3B-8489 | [10] | FITTING-GREASE(1/8-27 PTF) | |
| 19. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 20. | 7K-1181 | [16] | STRAP-CABLE | |
| 21. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-6869M | [10] | BOLT(M8X1.25X60-MM) | |
| 24. | 3B-8485 | [2] | ELBOW | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
