卡特零件查询（AP-1055F） 415-7318: FLASHING GP
广数供应链运营团队, 16 02月, 2025，浏览：
804 次

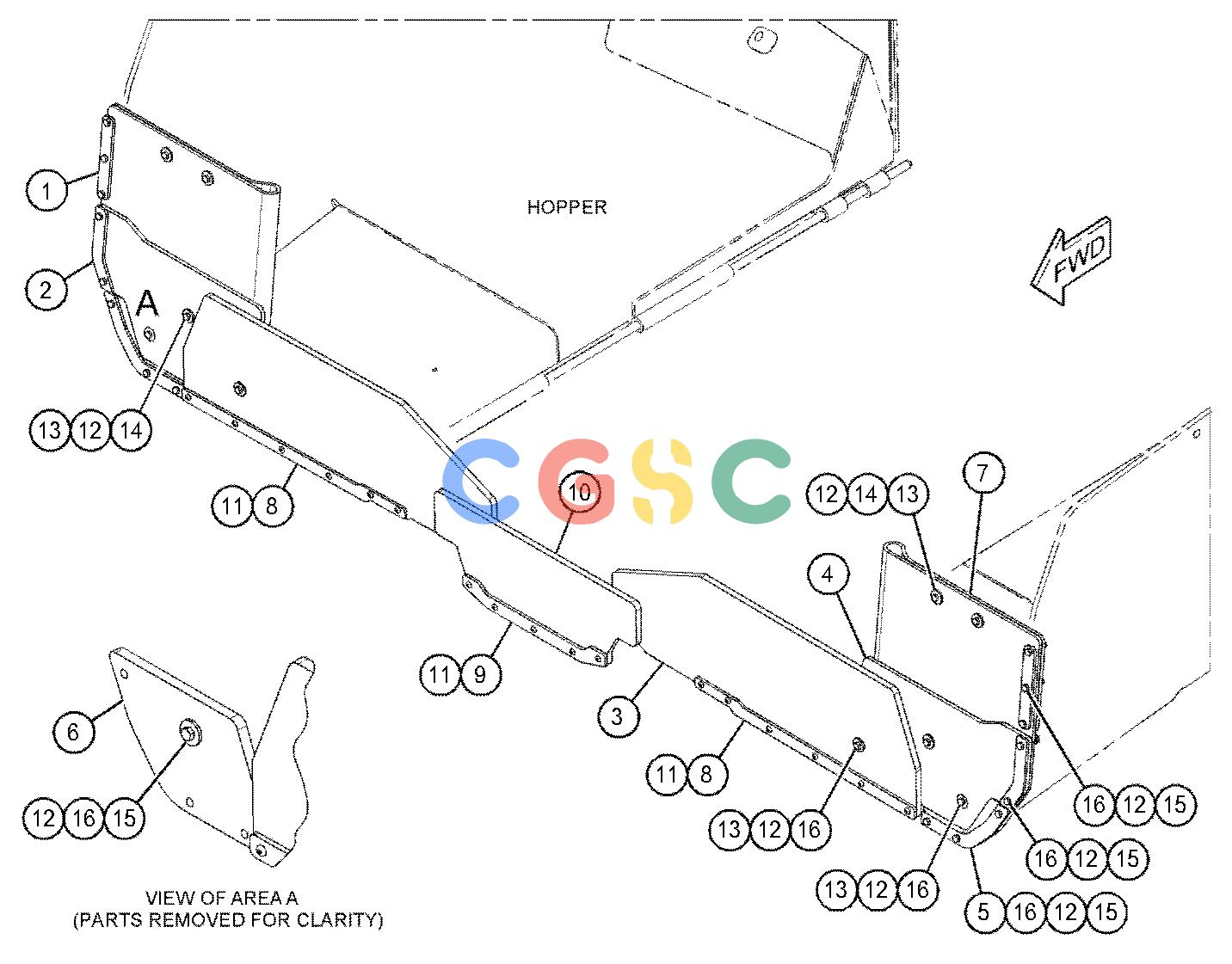

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 283-8414 | [2] | PLATE | |
| 2. | 422-4545 | [2] | PLATE | |
| 3. | 422-4546 | [2] | FLASHING | |
| 4. | 424-4218 | [2] | FLASHING | |
| 5. | 425-0583 | [2] | PLATE | |
| 6. | 428-8464 | [2] | FLASHING | |
| 7. | 428-8466 | [2] | FLASHING | |
| 8. | 434-0008 | [2] | PLATE | |
| 9. | 434-0025 | [1] | PLATE | |
| 10. | 434-0038 | [1] | FLASHING | |
| 11. | 281-2901M | [17] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 12. | 329-3356M | [26] | NUT(M12X1.75-THD) | |
| 13. | 7X-0618 | [20] | WASHER-HARD(13.5X40X5-MM THK) | |
| 14. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 15. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4910M | [20] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
