卡特零件查询（AP-1055F） 415-7322: FLASHING GP
广数供应链运营团队, 16 02月, 2025，浏览：
693 次

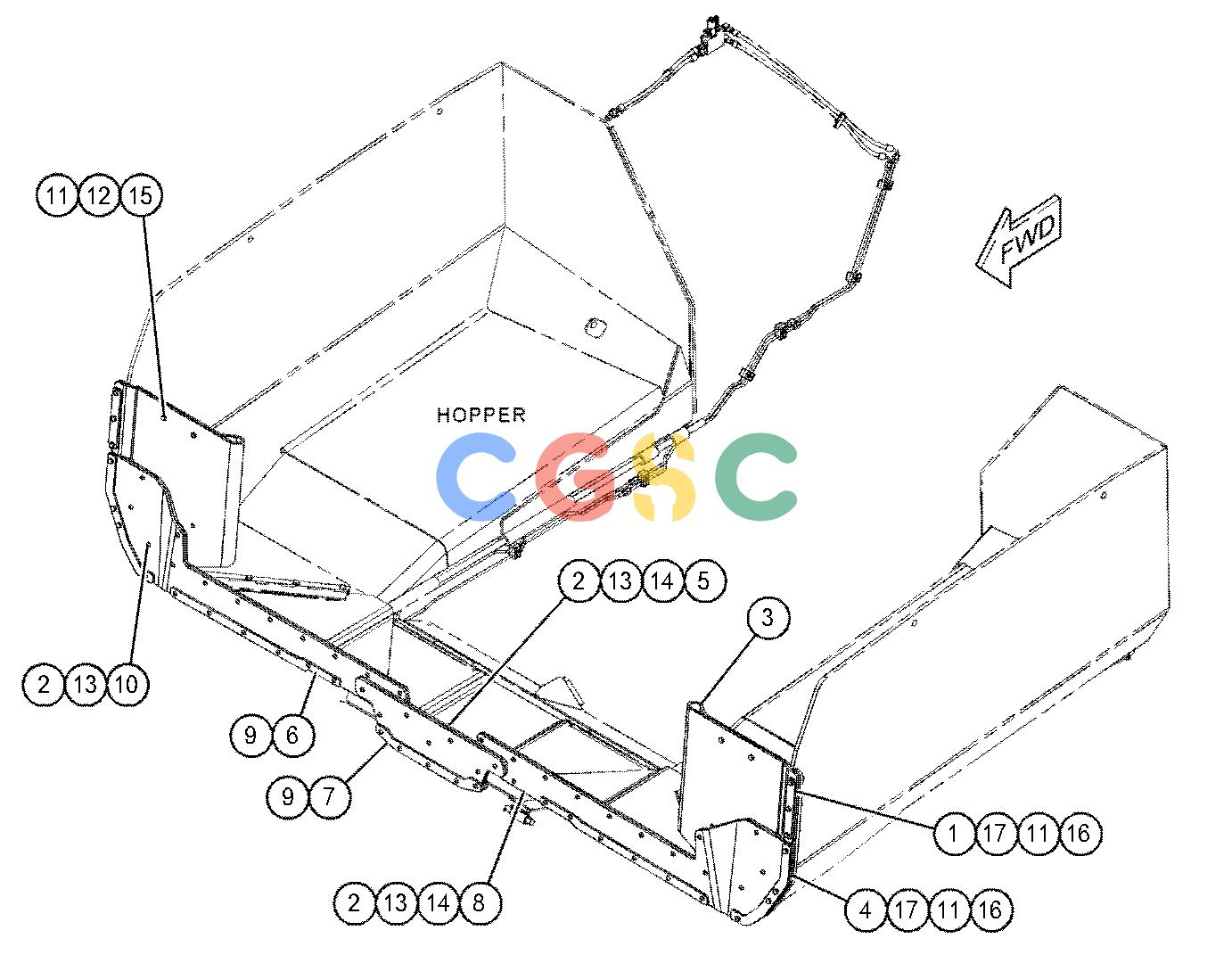

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 283-8414 | [2] | PLATE | |
| 2. | 302-3372M | [33] | NUT-WELD(M10X1.5-THD) | |
| 3. | 370-4160 | [2] | FLASHING | |
| 4. | 428-8468 | [2] | PLATE | |
| 5. | 434-0007 | [1] | FLASHING AS | |
| 6. | 434-0023 | [2] | PLATE | |
| 7. | 434-0025 | [1] | PLATE | |
| 8. | 446-6624 | [2] | FLASHING AS | |
| 9. | 281-2901M | [17] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 10. | 299-5675M | [8] | SCREW-BUTTON HEAD(M10X1.5X30-MM) | |
| 11. | 329-3356M | [18] | NUT(M12X1.75-THD) | |
| 12. | 7X-0618 | [8] | WASHER-HARD(13.5X40X5-MM THK) | |
| 13. | 7X-7729 | [33] | WASHER(11X25X3-MM THK) | |
| 14. | 8C-8585M | [25] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 15. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 16. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4910M | [14] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
