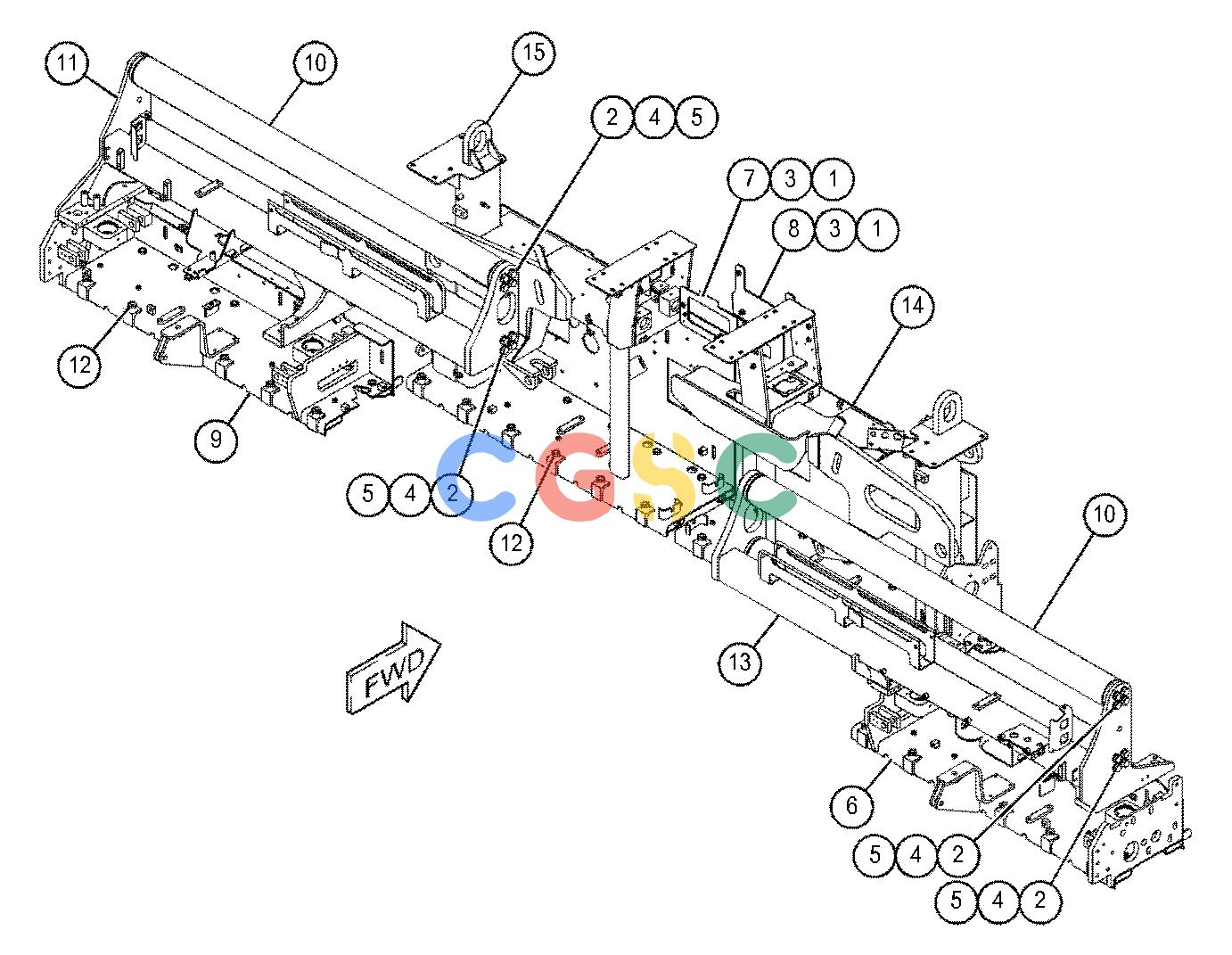

卡特零件查询（AP-1055F） 482-9810: FRAME GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 2. | 8T-4141M | [32] | BOLT(M20X2.5X70-MM) | |
| 3. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 4. | 8T-4123 | [32] | WASHER(22X35X3.5-MM THK) | |
| 5. | 440-9436B | [8] | SHIM(1.6-MM THK) | |
| | 440-9437B | [8] | SHIM(3-MM THK) | |
| | 457-5146B | [8] | SHIM(0.8-MM THK) | |
| 6. | 552-7176 | [1] | FRAME AS-SCREED(REAR, RH) | |
| 7. | 440-9906 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 9X-2032M | [2] | NUT-WELD(M4X0.7-THD) | |
| 8. | 452-8113 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 9X-2032M | [1] | NUT-WELD(M4X0.7-THD) | |
| 9. | 552-7179 | [1] | FRAME AS-SCREED(REAR, LH) | |
| 10. | 464-0480 | [4] | TUBE AS | |
| 11. | 482-9807 | [1] | FRAME AS(LH) | |
| 12. | 422-4637M | [24] | NUT(M30X2-THD) | |
| 13. | 551-4060 | [1] | FRAME AS-SCREED(RH) | |
| 14. | 552-7170 | [1] | FRAME AS-SCREED(FRONT, RH) | |
| 15. | 552-7173 | [1] | FRAME AS-SCREED(FRONT, LH) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
