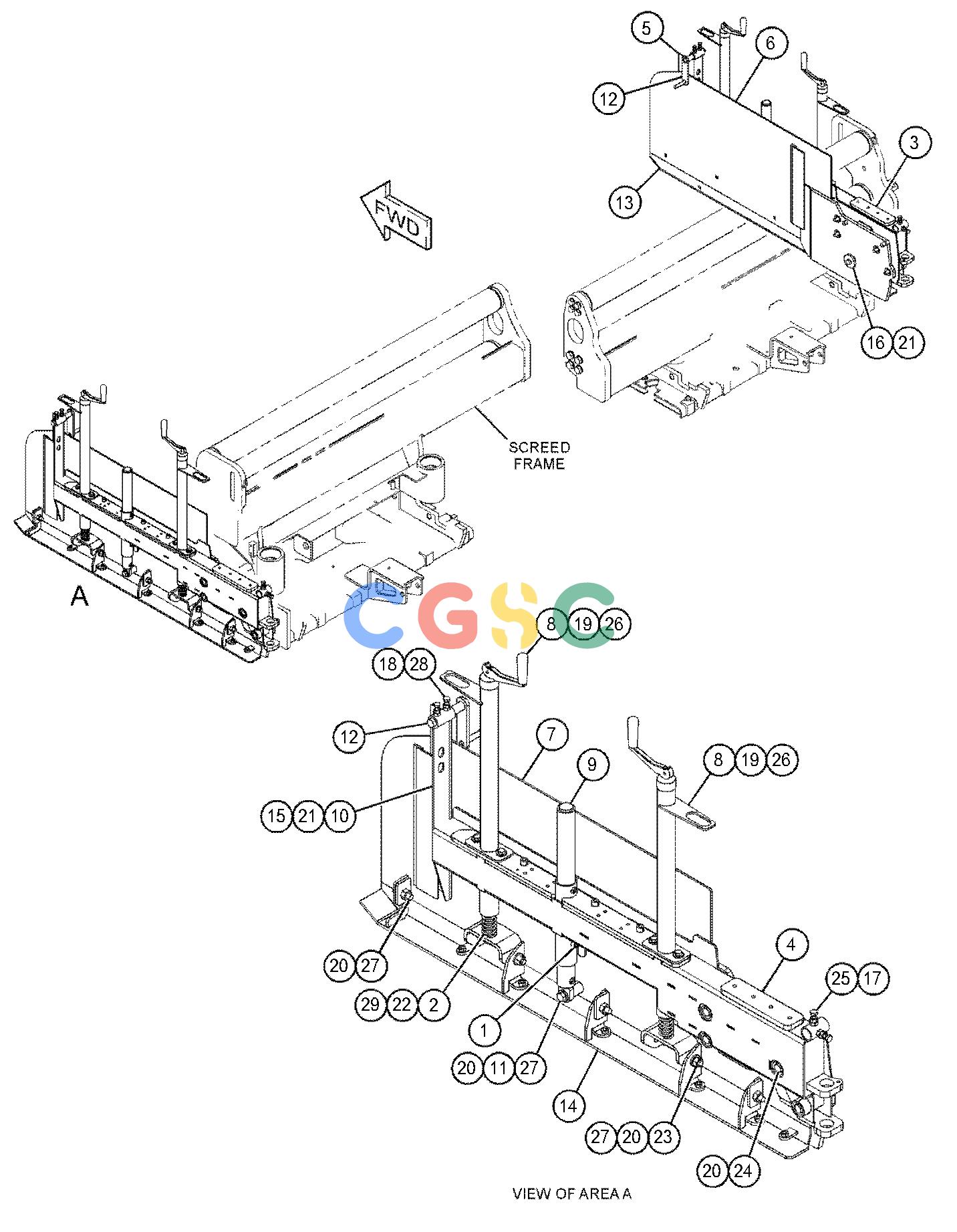

卡特零件查询（AP-1055F） 453-2460: GATE GP-END
广数供应链运营团队, 16 02月, 2025，浏览：
374 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 258-0735 | [4] | SPRING | |
| 3. | 399-7162 | [1] | ARM AS(RH) | |
| 4. | 399-7163 | [1] | ARM AS(LH) | |
| | | | (EACH ARM AS INCLUDES) |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| | 9R-2613M | [3] | BOSS-WELD(M10X1.5X25-MM) | |
| 5. | 399-7178 | [1] | GUIDE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 6. | 399-7185 | [1] | GATE AS(RH) | |
| 7. | 399-7186 | [1] | GATE AS(LH) | |
| | | | (EACH GATE AS INCLUDES) |
| | 355-8941M | [3] | NUT-WELD(M16X2-THD) | |
| 8. | 399-7196 | [4] | ACTUATOR AS | |
| 9. | 399-7198 | [2] | TUBE AS | |
| 10. | 399-7206 | [1] | GUIDE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 11. | 417-1577 | [2] | SPACER(17X25X17-MM THK) | |
| 12. | 425-1215 | [2] | MOUNT AS | |
| 13. | 499-3592 | [1] | SHOE AS(RH) | |
| 14. | 499-3593 | [1] | SHOE AS(LH) | |
| | | | (EACH SHOE AS INCLUDES) |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 110-2023M | [1] | STUD-WELD(M10X1.5X25-MM) | |
| 15. | 198-4780 | [4] | WASHER-HARD(17.5X32X8-MM THK) | |
| 16. | 297-5849 | [2] | WASHER-HARD(17X75X10-MM THK) | |
| 17. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 18. | 344-5675M | [4] | NUT(M10X1.5-THD) | |
| 19. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 7X-0515 | [24] | WASHER-HARD(17X35X5-MM THK) | |
| 21. | 7X-2553M | [6] | BOLT(M16X2X40-MM) | |
| 22. | 8C-6894M | [4] | BOLT(M20X2.5X300-MM) | |
| 23. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 24. | 8T-4174M | [8] | BOLT(M16X2X120-MM) | |
| 25. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 26. | 8T-4192M | [8] | BOLT(M12X1.75X25-MM) | |
| 27. | 8T-4193M | [12] | BOLT(M16X2X50-MM) | |
| 28. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 29. | 8T-5439 | [4] | WASHER-HARD(21.5X45X6-MM THK) | |
| | M | | METRIC PART |
