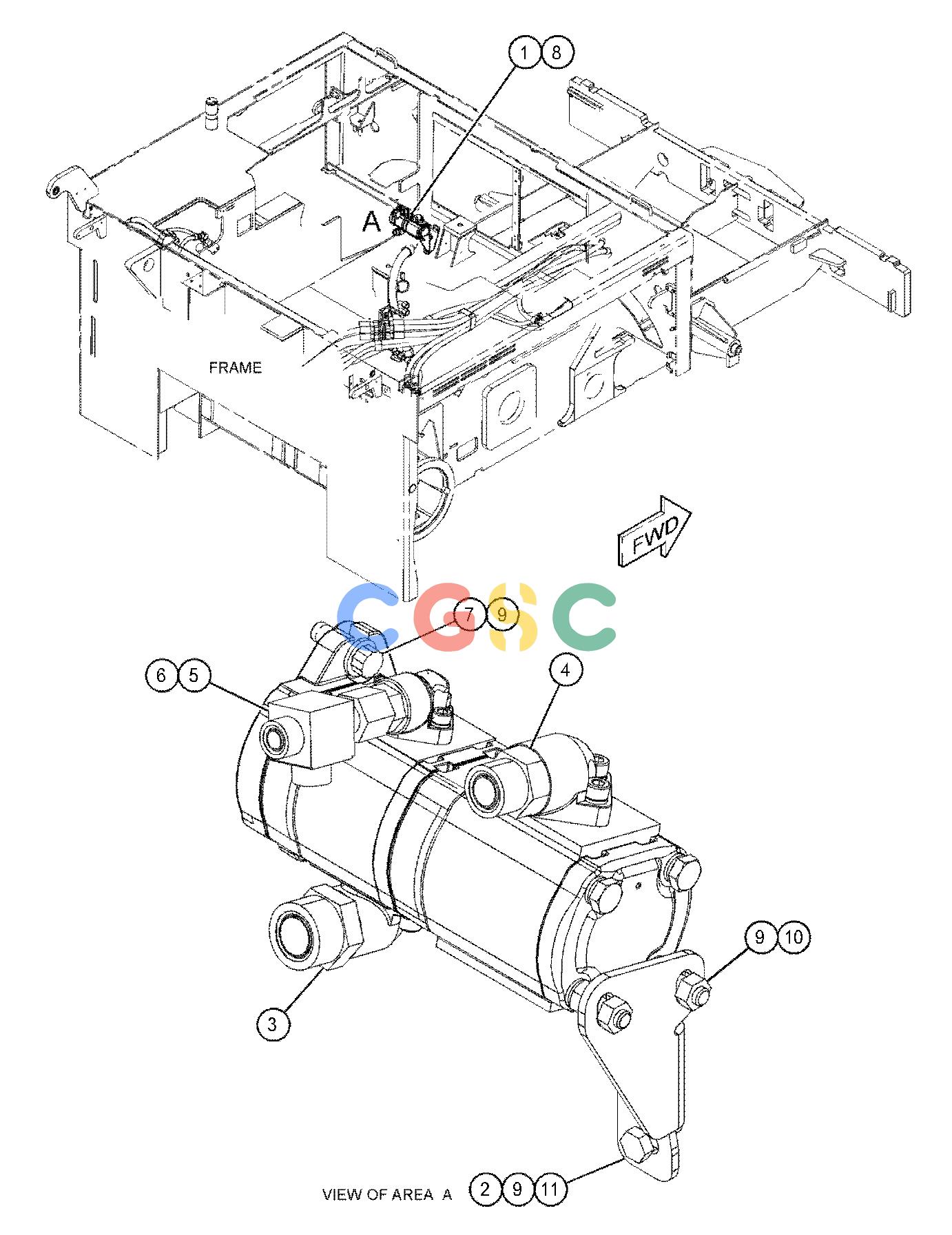

卡特零件查询（AP-1055F） 428-7085: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
236 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 469-9121Y | [1] | PUMP GP-GEAR(CONVEYOR CHARGE) | |
| 2. | 428-7087 | [1] | BRACKET | |
| 3. | 148-8317 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 4. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 6. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 7. | 434-0776M | [2] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 8. | 6D-1004 | [1] | GASKET | |
| 9. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 11. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
