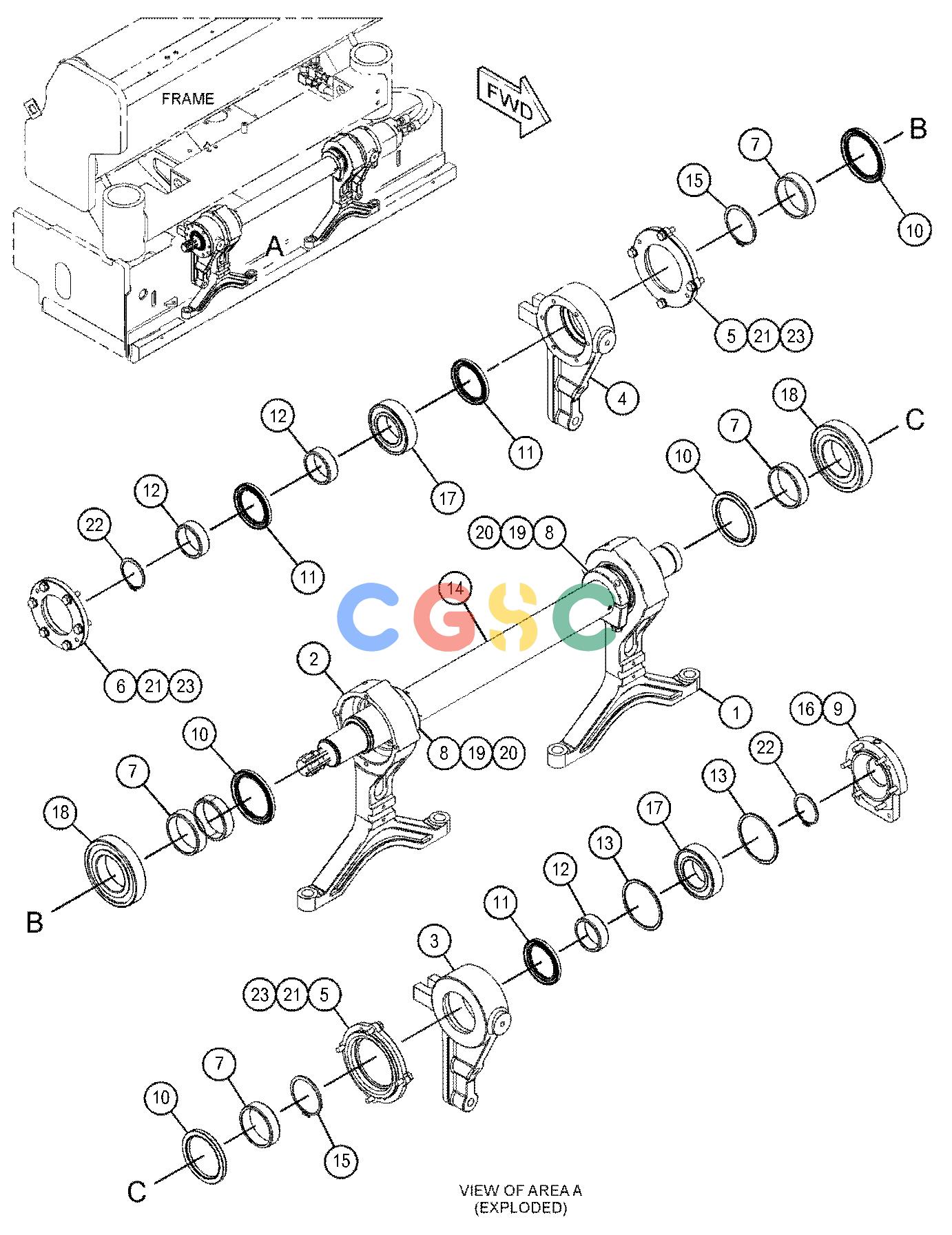

卡特零件查询（AP-1055F） 471-2032: TAMPER GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
184 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | | |
| | 392-6338 | [2] | ADJUSTER | |
| | 394-7239 | [2] | ADJUSTER | |
| | 244-2296 | [2] | BALL BEARING | |
| | 420-4956 | [2] | BALL BEARING | |
| | 471-2031 | [1] | BLOCK | |
| | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| | 8T-4193M | [4] | BOLT(M16X2X50-MM) | |
| | 8T-4908M | [20] | BOLT(M8X1.25X25-MM) | |
| | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| | 392-6335 | [2] | COVER | |
| | 392-6336 | [2] | COVER | |
| | 3B-8485 | [4] | ELBOW | |
| | 4M-8973 | [2] | ELBOW | |
| | 2D-1683 | [6] | FITTING(1/8-27 PTF) | |
| | 473-7654I | [4] | HOSE AS | |
| | 8T-4241 | [2] | RING-RETAINING | |
| | 095-0929 | [2] | RING-RETAINING | |
| | 415-1070 | [4] | SEAL-LIP TYPE | |
| | 416-2578 | [4] | SEAL-LIP TYPE | |
| | 471-7049 | [1] | SHAFT | |
| | 392-6337 | [4] | SPACER(65X75X20-MM THK) | |
| | 418-1392 | [4] | SPACER(50X60X20-MM THK) | |
| | 419-5668 | [4] | SPACER(80X90X4-MM THK) | |
| | 392-6329 | [1] | SUPPORT(LH) | |
| | 392-6330 | [1] | SUPPORT(RH) | |
| | 392-6332 | [1] | SUPPORT(LH) | |
| | 392-6333 | [1] | SUPPORT(RH) | |
| | 7X-0515 | [8] | WASHER-HARD(17X35X5-MM THK) | |
| | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| | 8T-4224 | [22] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
