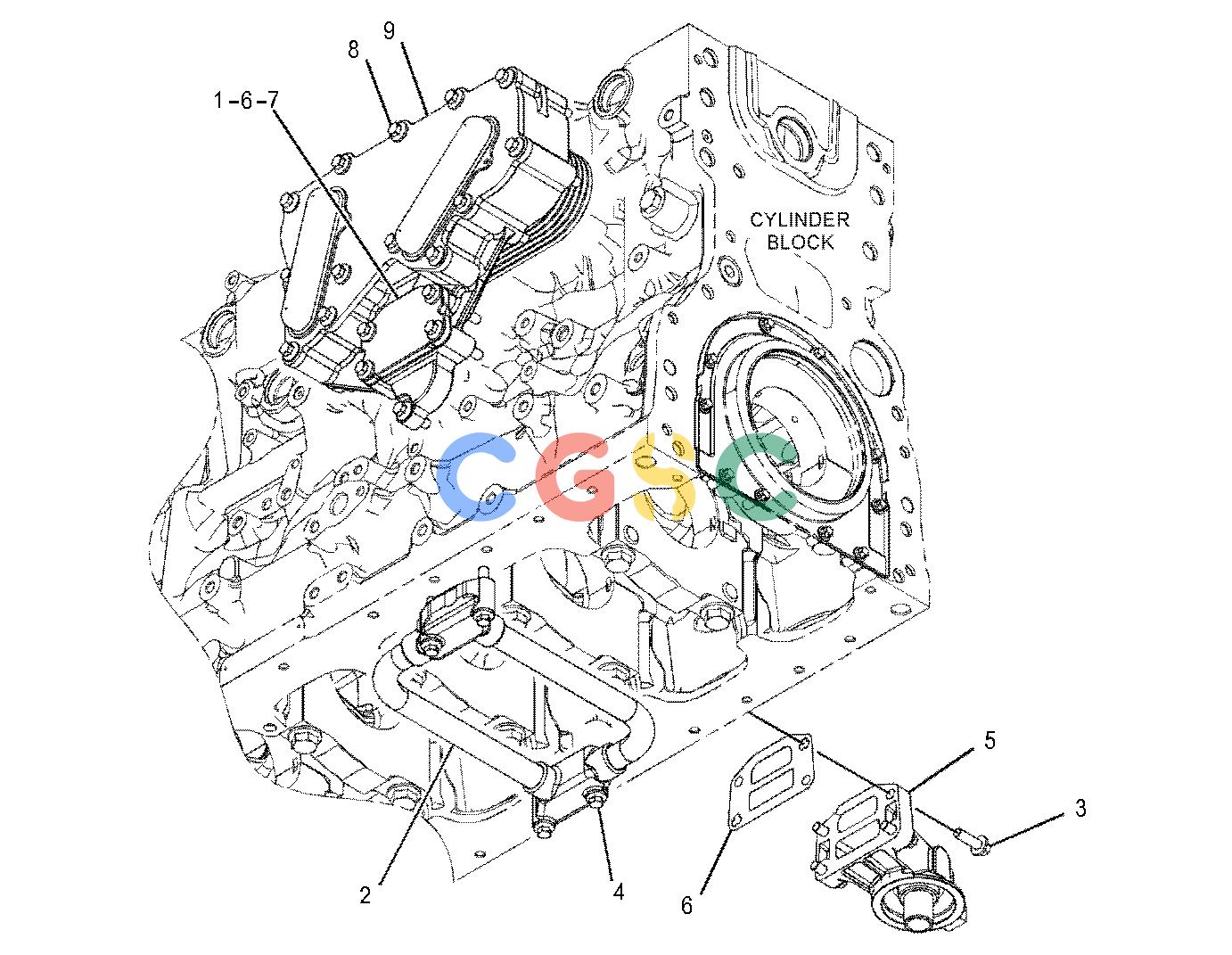

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-4793M | [4] | BOLT(M8X1.25X50-MM) | |
| 2. | 367-7142 | [1] | TUBE AS-OIL | |
| 3. | 6I-0260M | [4] | BOLT(M8X1.25X25-MM) | |
| 4. | 6I-0456M | [4] | BOLT(M8X1.25X45-MM) | |
| 5. | 283-4559 | [1] | HEAD AS-OIL FILTER | |
| 6. | 225-7944 | [2] | GASKET(ENGINE OIL FILTER BASE) | |
| 7. | 232-3751 | [1] | PLATE | |
| 8. | 6I-0839M | [7] | BOLT(M8X1.25X70-MM) | |
| 9. | 326-7402Y | [1] | COOLER GP-ENGINE OIL | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
