卡特零件查询（AP-1055F） 419-9392: LINES GP-FUEL
广数供应链运营团队, 16 02月, 2025，浏览：
798 次

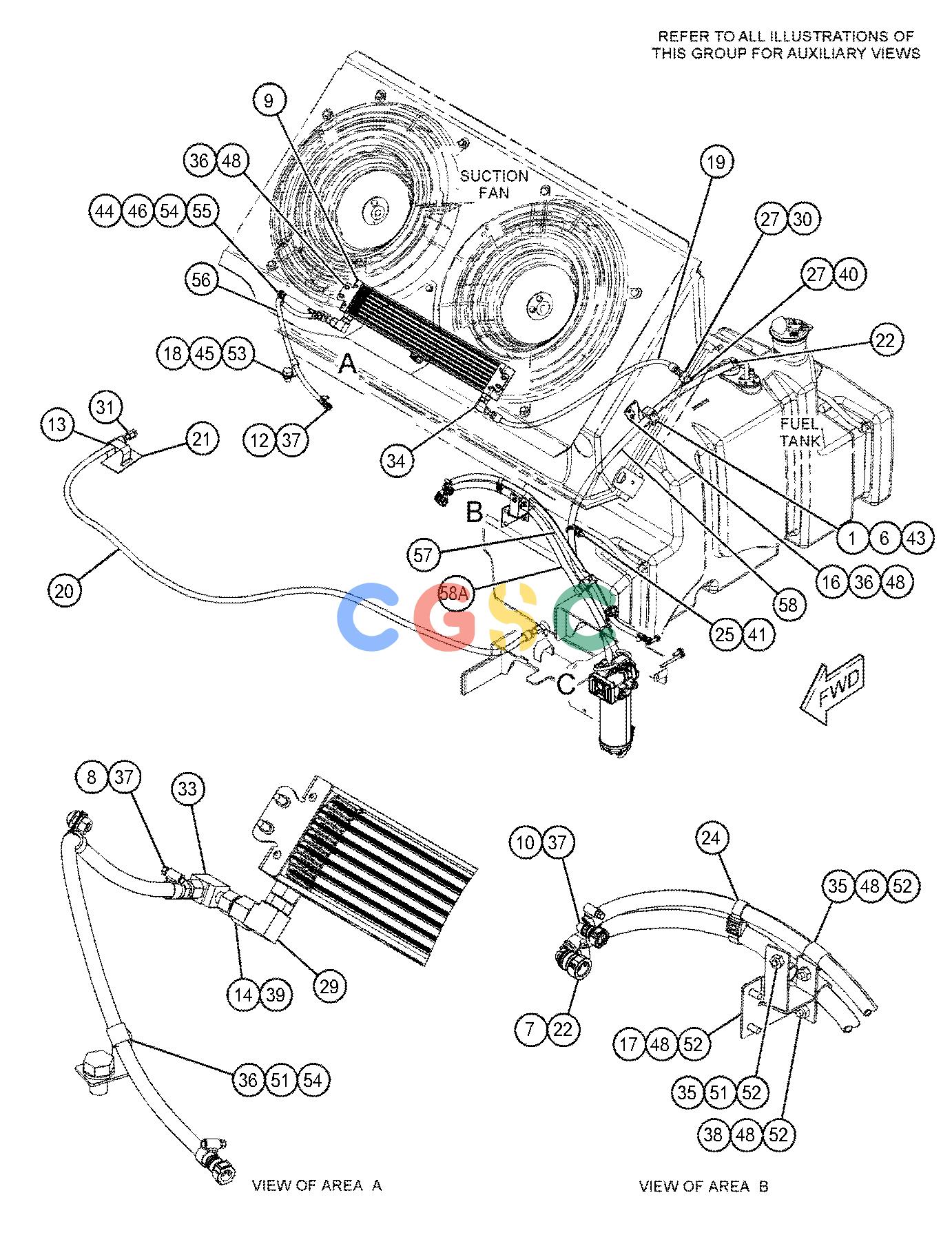

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628 | [1] | PLATE(TOP) | |
| 2. | 102-8703 | [1] | PLATE-COVER | |
| 3. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 4. | 206-0452 | [1] | PLATE | |
| 5. | 218-6645 | [2] | ELBOW | |
| 6. | 239-3291 | [2] | CLAMP-HALF | |
| 7. | 264-3518 | [1] | CONNECTOR-RECEPTACLE | |
| 8. | 269-6650 | [1] | ADAPTER | |
| 9. | 334-3325 | [1] | CORE AS-FUEL COOLER | |
| 10. | 354-0817 | [1] | CONNECTOR-HOSE | |
| 11. | 354-0842 | [1] | CONNECTOR | |
| 12. | 355-0633 | [1] | COUPLER-QUICK DISCONNECT | |
| 13. | 364-4568 | [1] | STRAP | |
| 14. | 369-6885 | [1] | REDUCER AS | |
| | 6V-8939 | [1] | REDUCER-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 15. | 391-3762Y | [1] | FILTER GP-WATER SEP & FUEL | |
| 16. | 419-7311 | [1] | BRACKET AS | |
| | 102-8704 | [1] | PLATE | |
| | 178-8505 | [2] | PLATE-WELD | |
| 17. | 419-9400 | [1] | BRACKET AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 18. | 419-9407 | [1] | BRACKET AS | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 19. | 430-8280 | [1] | HOSE AS | |
| 20. | 430-8377 | [1] | HOSE AS | |
| 21. | 445-2694 | [1] | MAT-RUBBER | |
| 22. | 124-6257 | [4] | CLAMP-HOSE | |
| 23. | 156-3618 | [2] | CLAMP-HALF | |
| 24. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 25. | 200-6345 | [3] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 26. | 206-6411 | [2] | CLAMP-HALF | |
| 27. | 228-7089 | [2] | SEAL-O-RING | |
| 28. | 228-7102 | [2] | SEAL-O-RING | |
| 29. | 281-5975 | [1] | ELBOW AS | |
| | 6V-8626 | [1] | ELBOW | |
| | 228-7091 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 30. | 297-7976 | [1] | ELBOW AS | |
| | 6V-9850 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 31. | 319-6238 | [1] | PLUG AS | |
| | 6V-9509 | [1] | PLUG(13/16-16-THD) | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 32. | 330-9724 | [2] | PLUG AS-CONNECTOR | |
| | | | (EACH INCLUDES) |
| | 228-7102 | [1] | SEAL-O-RING | |
| | 241-6158 | [1] | PLUG | |
| 33. | 332-8592 | [1] | ELBOW AS | |
| | 152-3411 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 34. | 352-6509 | [1] | ELBOW AS | |
| | 9X-2134 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 35. | 3S-8664 | [2] | CLIP(LOOP) | |
| 36. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 37. | 5P-4961 | [4] | CLAMP-HOSE | |
| 38. | 6D-4244 | [1] | CLIP(LOOP) | |
| 39. | 9X-6581 | [1] | NUT-O-RING SEAL(1-14-THD) | |
| 40. | 6V-9829 | [1] | CAP(ORFS) | |
| 41. | 7K-1181 | [6] | STRAP-CABLE | |
| 42. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 43. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 44. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 45. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 46. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 47. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 48. | 8T-4189M | [9] | BOLT(M8X1.25X20-MM) | |
| 49. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 50. | 8T-4198M | [1] | BOLT(M10X1.5X100-MM) | |
| 51. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 52. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 53. | 8T-4780M | [1] | BOLT(M20X2.5X30-MM) | |
| 54. | 9M-8406 | [2] | CLIP(LOOP) | |
| 55. | 9X-2041M | [1] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 56. | 347-8645E | | HOSE(79-CM) | |
| 57. | 347-8646E | | HOSE(106-CM) | |
| 58. | 347-8647E | | HOSE(183-CM) | |
| 58A. | 347-8647E | | HOSE(129-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
