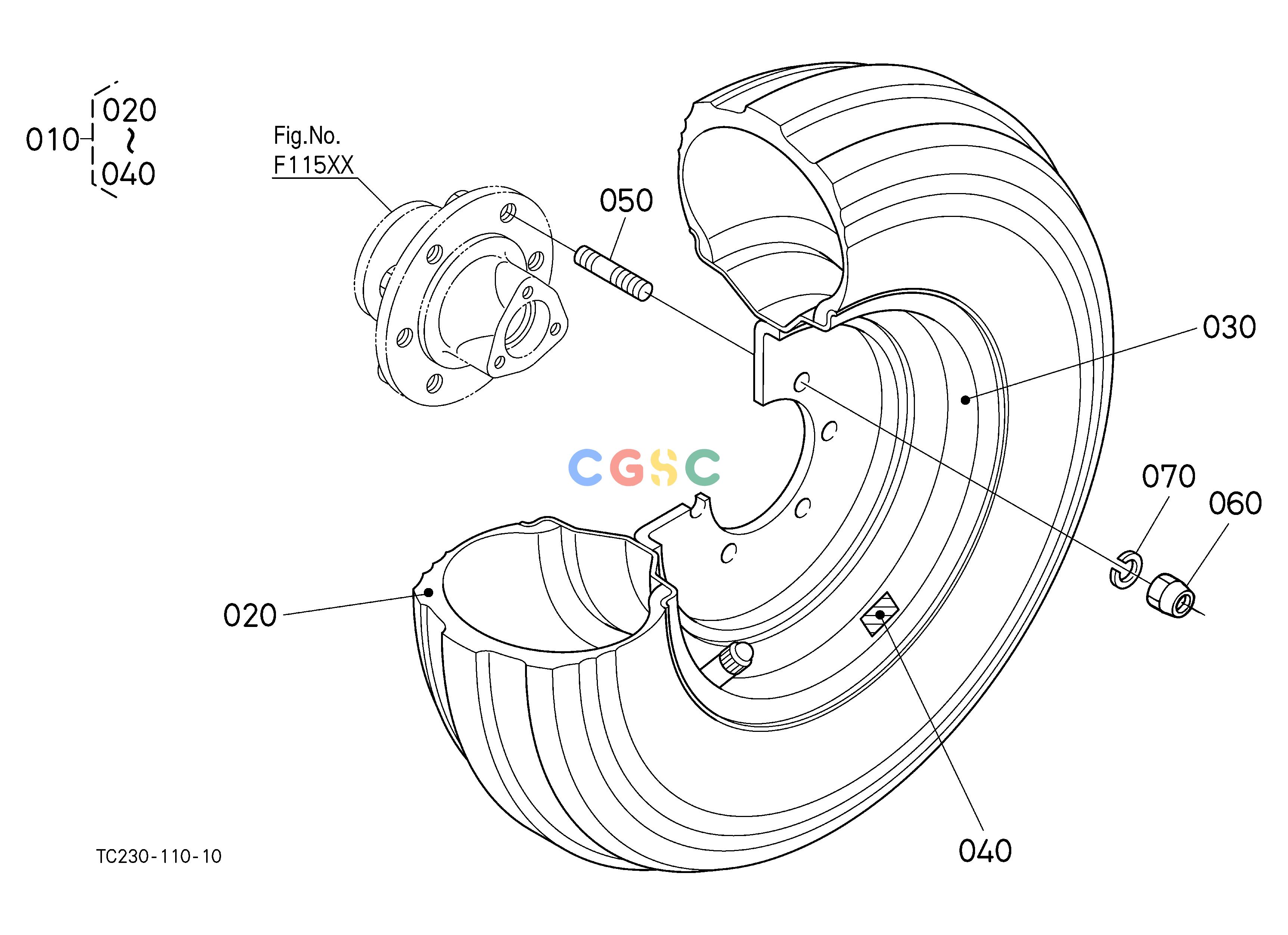

久保田零件查询P10112 FRONT WHEEL (7.5L-15) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23011600
|
[2] |
ASSY FRONT TIRE (7.5
|
0.0000(lbs); 0.000
|
| 020. |
TC23011620
|
[2] |
TIRE(7.5L-15)
|
0.0000(lbs); 0.000
|
| 030. |
TC03011650
|
[2] |
WHEEL(15X6 LBH)
|
0.0000(lbs); 0.000
|
| 040. |
99999-99999
|
[2] |
LABEL(ALR8852A)
|
0.0000(lbs); 0.000
|
| 050. |
TA15049160
|
[12] |
STUD,WHEEL
|
0.1100(lbs); 0.050
|
| 060. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 070. |
0451250140
|
[12] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
