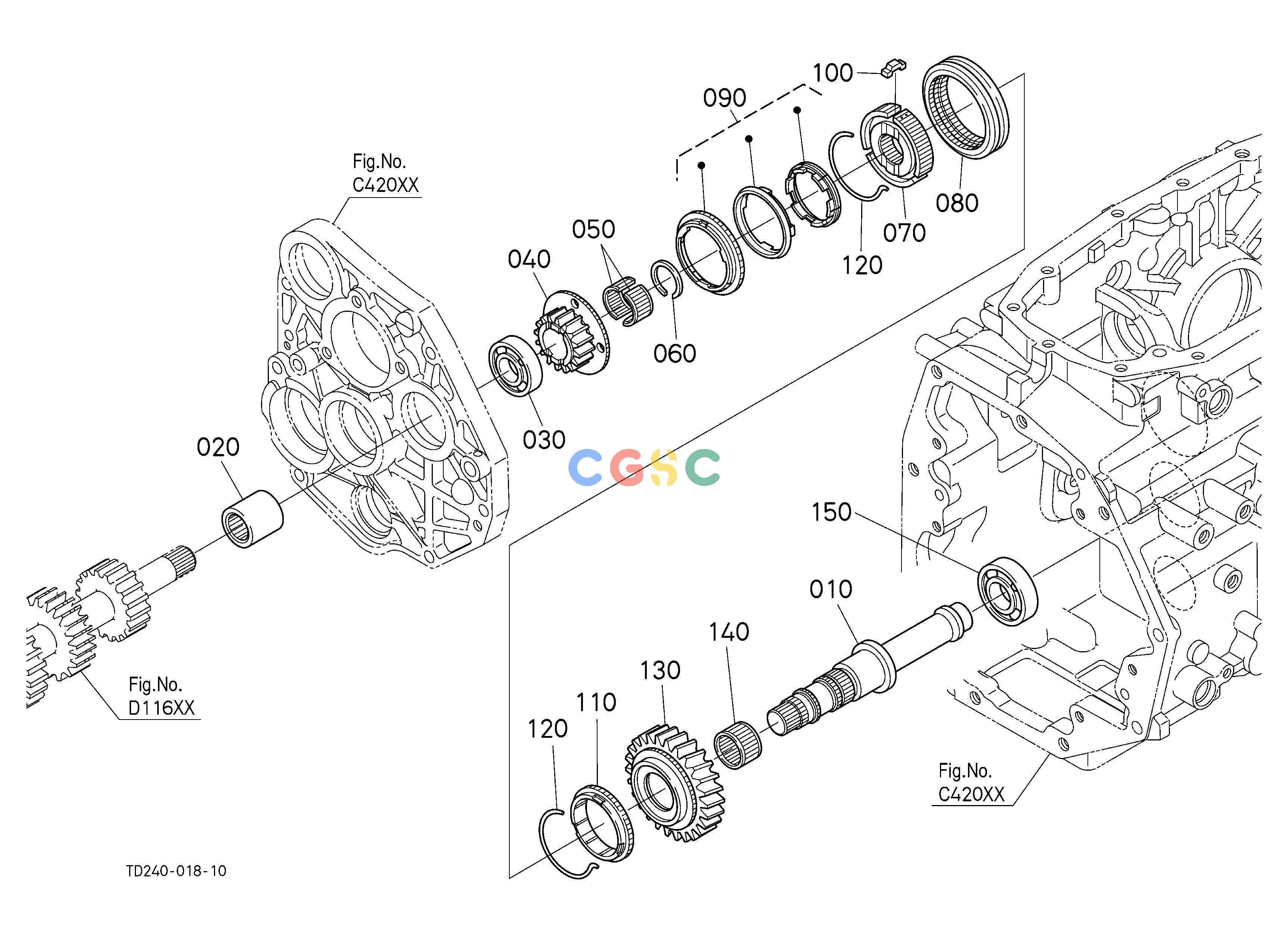

久保田零件查询D11702 RANGE GEAR SHAFT CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
926 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06022600
|
[1] |
SHAFT
|
2.6070(lbs); 1.185
|
| 020. |
TD06022670
|
[1] |
COUPLING
|
0.3520(lbs); 0.160
|
| 030. |
T205023480
|
[1] |
BEARING,BALL
|
0.5170(lbs); 0.235
|
| 030. |
0810106305
|
[1] |
BEARING,BALL
|
0.5060(lbs); 0.230
|
| 040. |
TD06062610
|
[1] |
GEAR
|
0.5940(lbs); 0.270
|
| 050. |
T106022650
|
[1] |
BEARING,NEEDLE SUB L
|
0.0440(lbs); 0.020
|
| 060. |
T106022280
|
[1] |
CIRCLIP,EXT
|
0.0066(lbs); 0.003
|
| 070. |
TD06062650
|
[1] |
COUPLING
|
0.6820(lbs); 0.310
|
| 080. |
TA04022440
|
[1] |
SHIFTER
|
0.4950(lbs); 0.225
|
| 090. |
TA04022460
|
[1] |
ASSY SYNCHRO
|
0.2640(lbs); 0.120
|
| 100. |
T185021440
|
[3] |
KEY,SYNCHRONIZER
|
0.0044(lbs); 0.002
|
| 110. |
3407662260
|
[1] |
RING,SYNCHRONIZER
|
0.1100(lbs); 0.050
|
| 120. |
T012021780
|
[2] |
SPRING
|
0.0066(lbs); 0.003
|
| 130. |
TD04062620
|
[1] |
GEAR
|
2.6840(lbs); 1.220
|
| 140. |
T106022320
|
[1] |
BEARING,NEEDLE
|
0.0528(lbs); 0.024
|
| 150. |
6444122170
|
[1] |
BEARING,BALL
|
0.5280(lbs); 0.240
|
