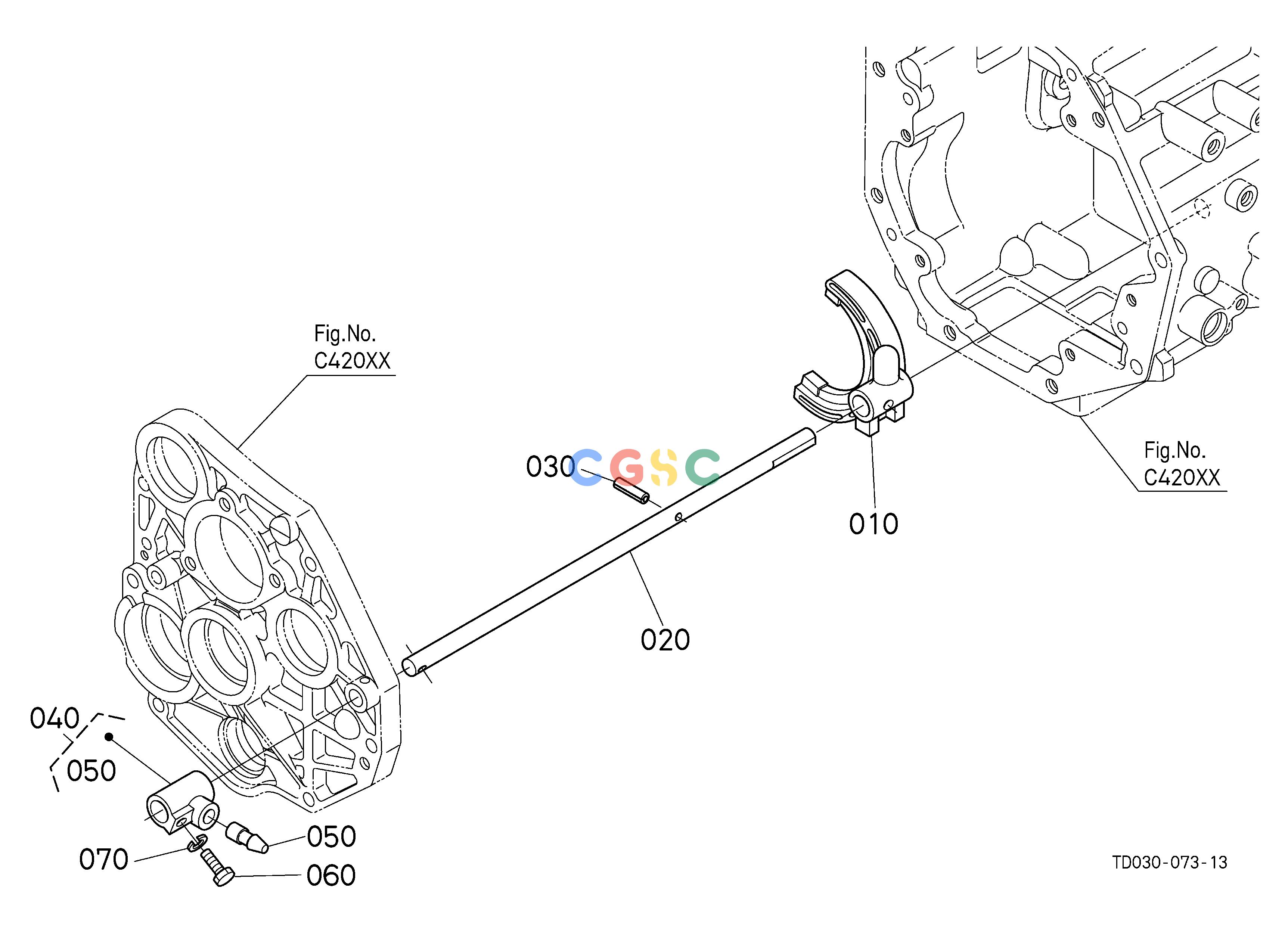

久保田零件查询D21702 RANGE GEAR SHIFT FORK SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T115324402
|
[1] |
FORK,RANGE SHIFT
|
0.3410(lbs); 0.155
|
| 020. |
TD06064412
|
[1] |
ROD,FORK
|
1.1000(lbs); 0.500
|
| 030. |
0541100625
|
[1] |
PIN,SPRING
|
0.0088(lbs); 0.004
|
| 040. |
T106364410
|
[1] |
ASSY SHIFTER GST
|
0.2750(lbs); 0.125
|
| 050. |
3407664170
|
[1] |
PIN,SHIFT
|
0.0440(lbs); 0.020
|
| 060. |
3135123570
|
[1] |
BOLT(FORK LOCK)
|
0.0154(lbs); 0.007
|
| 070. |
0451250060
|
[1] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
