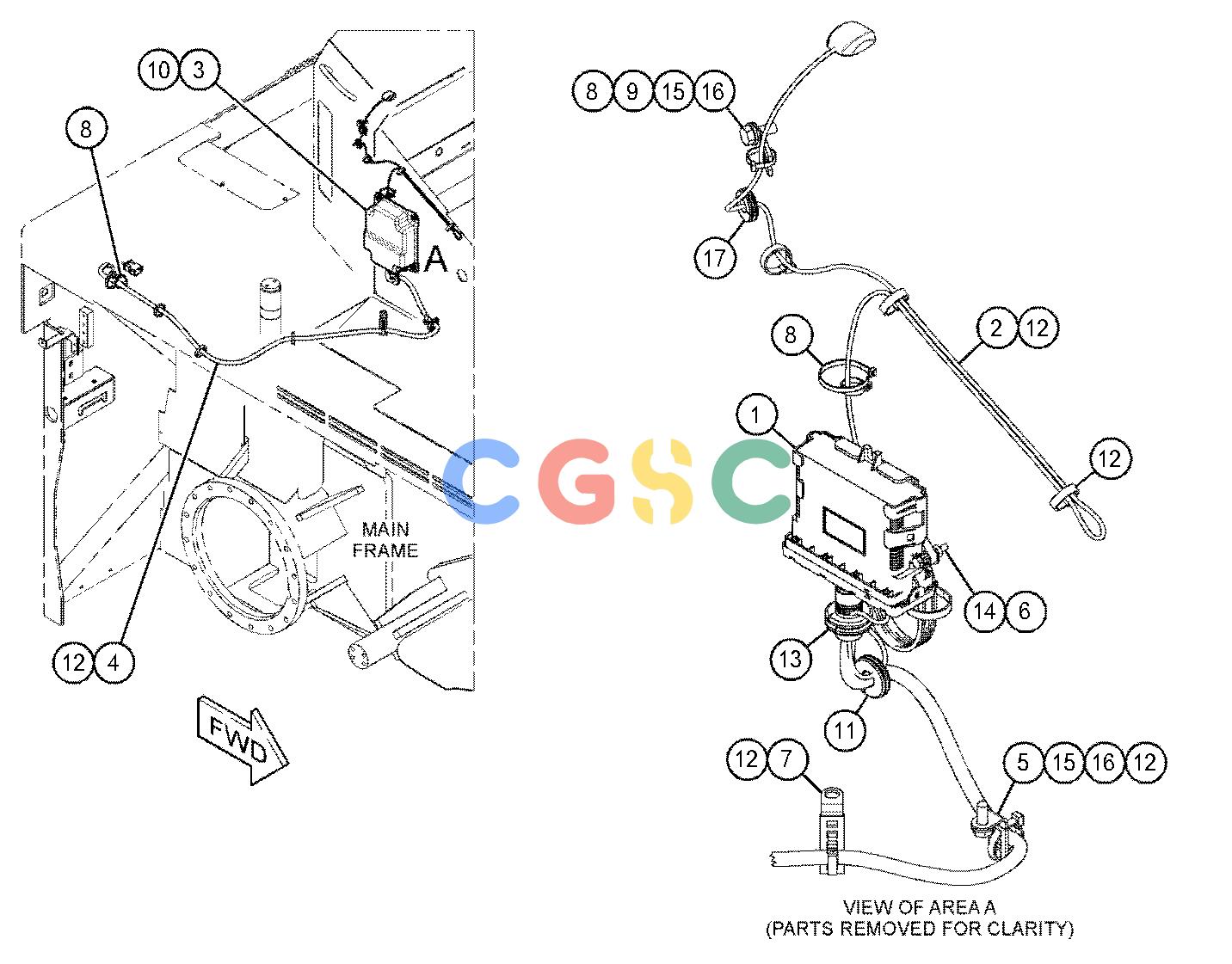

卡特零件查询（AP-1055F） 508-4178: HARNESS AS-WIRING
广数供应链运营团队, 16 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 374-7463 | [5] | CAP-SEAL | |
| | 374-7464 | [1] | CAP-SEAL | |
| | 374-7465 | [1] | CAP-SEAL | |
| | 126-1774 | [3] | COVER-CONNECTOR | |
| | 9X-0141 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 9X-4391 | [2] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 155-2260 | [5] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH INCLUDES PLUG AS,WEDGES & INTERFACE SEAL) |
| | 155-2270 | [14] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 160-7689 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 177-9648 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 455-0704 | [1] | SEAL-CONNECTOR | |
| | 281-8804 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 455-0705 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [166] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [3] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 122-1750 | [2] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| | 3E-5226 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 194-5226 | [333] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [333] | WIRE AS(14-GA) | |
| | 9X-6772 | [6] | STRAP-CABLE | |
| | 2L-8071 | [5] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 2L-8076 | [1] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(70-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| | 155-2258 | [1] | WEDGE-PLUG LOCK(12-PIN) | |
| | 155-2259 | [1] | WEDGE-PLUG LOCK(8-PIN) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
