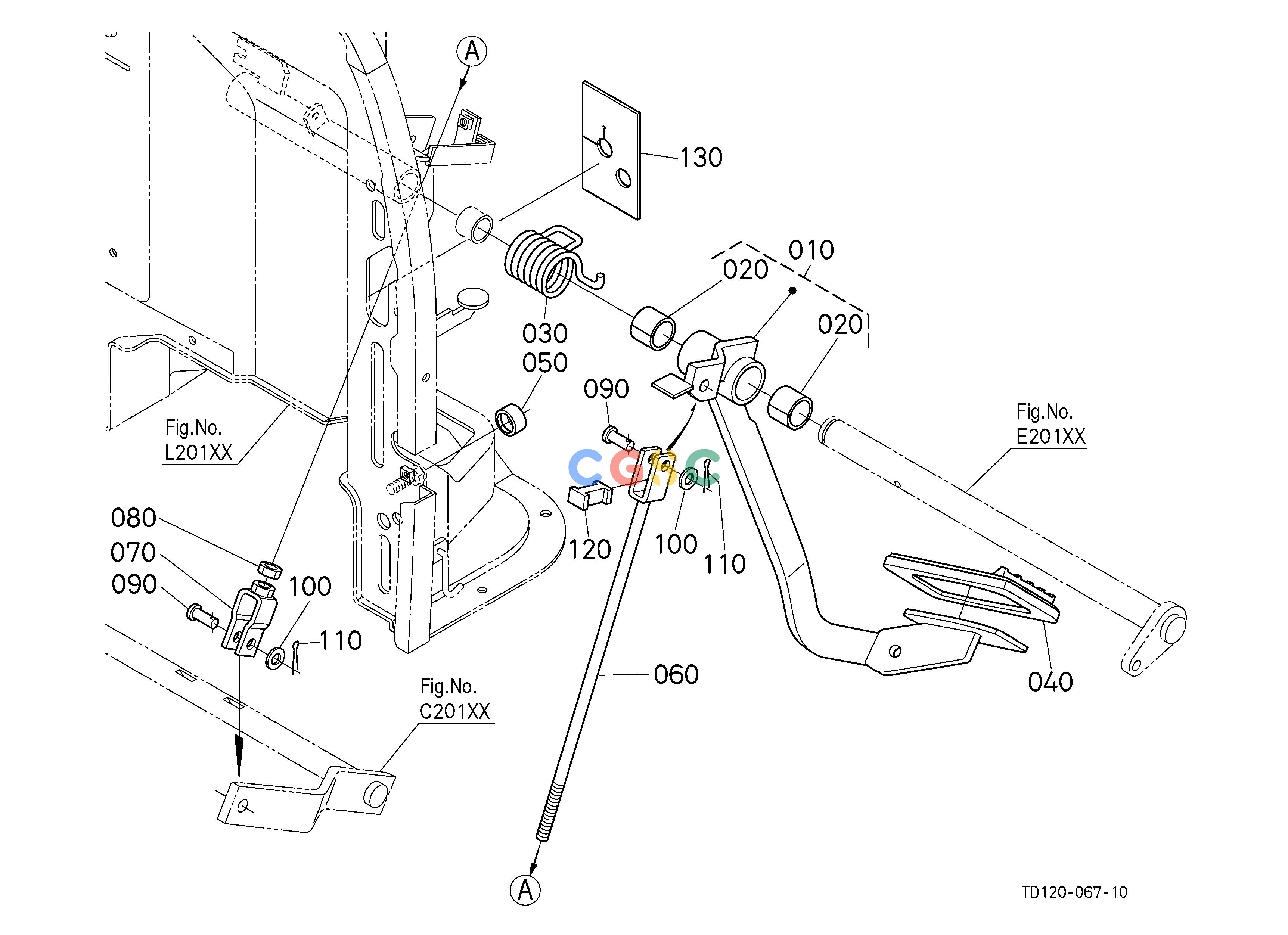

久保田零件查询C30102 CLUTCH PEDAL CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06057350
|
[1] |
ASSY PEDAL,CLUTCH
|
3.3880(lbs); 1.540
|
| 020. |
TD06044080
|
[2] |
BUSH
|
0.0396(lbs); 0.018
|
| 030. |
3407044160
|
[1] |
SPRING
|
0.2530(lbs); 0.115
|
| 040. |
T205044120
|
[1] |
COVER,PEDAL
|
0.1540(lbs); 0.070
|
| 050. |
T027047490
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
| 060. |
TD05044462
|
[1] |
ROD,CLUTCH
|
0.5060(lbs); 0.230
|
| 070. |
3407044470
|
[1] |
U JOINT
|
0.1760(lbs); 0.080
|
| 080. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
0512261028
|
[2] |
PIN,JOINT
|
0.0440(lbs); 0.020
|
| 100. |
0401360100
|
[2] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 110. |
0551150318
|
[2] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 120. |
T106044480
|
[1] |
CUSHION
|
0.0176(lbs); 0.008
|
| 130. |
TD06043262
|
[1] |
COVER,CLUTCH ROD
|
0.0528(lbs); 0.024
|
