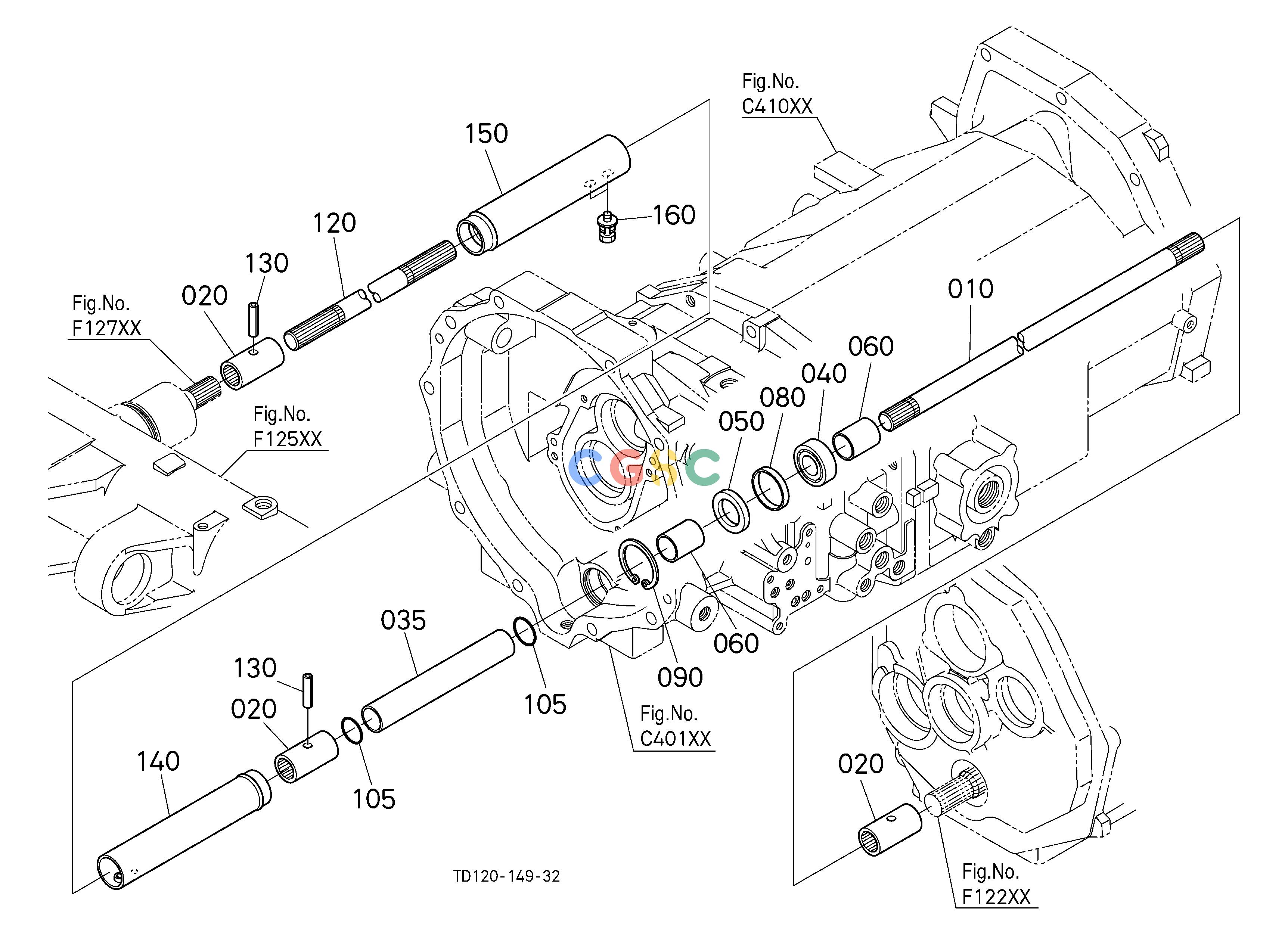

久保田零件查询F12002 PROPELLER SHAFT FRONT AXLE/CHASSISEPC Kubota online_久保田Kubota_工程机械

久保田零件查询F12002 PROPELLER SHAFT FRONT AXLE/CHASSISEPC Kubota online

广数供应链运营团队, 16 02月, 2025，浏览： 187 次

Pos.	Part No	Qty	Parts name	Comments
010.	TD06014643	[1]	SHAFT,PROPELLER	5.5000(lbs); 2.500
020.	T007014710	[3]	COUPLING	0.3520(lbs); 0.160
020.	H313044520	[3]	COUPLING	0.3520(lbs); 0.160
035.	TD35014720	[1]	SPACER(PROPELLER S/F,FRONT)	; >=60219 0.5500(lbs); 0.250
040.	TD06014590	[1]	BEARING,BALL	0.0880(lbs); 0.040
050.	0950028427	[1]	SEAL,OIL	; <=51181 0.0220(lbs); 0.010
050.	TC23214670	[1]	SEAL,OIL	; >=51182 0.0220(lbs); 0.010
060.	5260015550	[1]	SLEEVE	; <=51181 0.0550(lbs); 0.025
060.	TC23214680	[2]	SLEEVE	; >=51182 0.0550(lbs); 0.025
080.	TD06014654	[1]	SPACER,PROPELLER SHAFT	0.0220(lbs); 0.010
090.	0461100420	[1]	CIR-CLIP,INTERNAL	0.0132(lbs); 0.006
105.	TA04082180	[2]	O RING	; >=60219 0.0022(lbs); 0.001
120.	TD03014630	[1]	SHAFT,PROP.	; <=60204 1.5400(lbs); 0.700
120.	TD03014632	[1]	SHAFT,PROPELLER	; >=60205 1.5400(lbs); 0.700
130.	0541100430	[2]	PIN SPRING	0.0044(lbs); 0.002
140.	TD03014580	[1]	COVER,SHAFT REAR	0.4620(lbs); 0.210
150.	TA04014574	[1]	COVER(SHAFT,PROP.)	0.7260(lbs); 0.330
160.	TC05014590	[2]	BOLT,WITH WASHER	0.0066(lbs); 0.003
