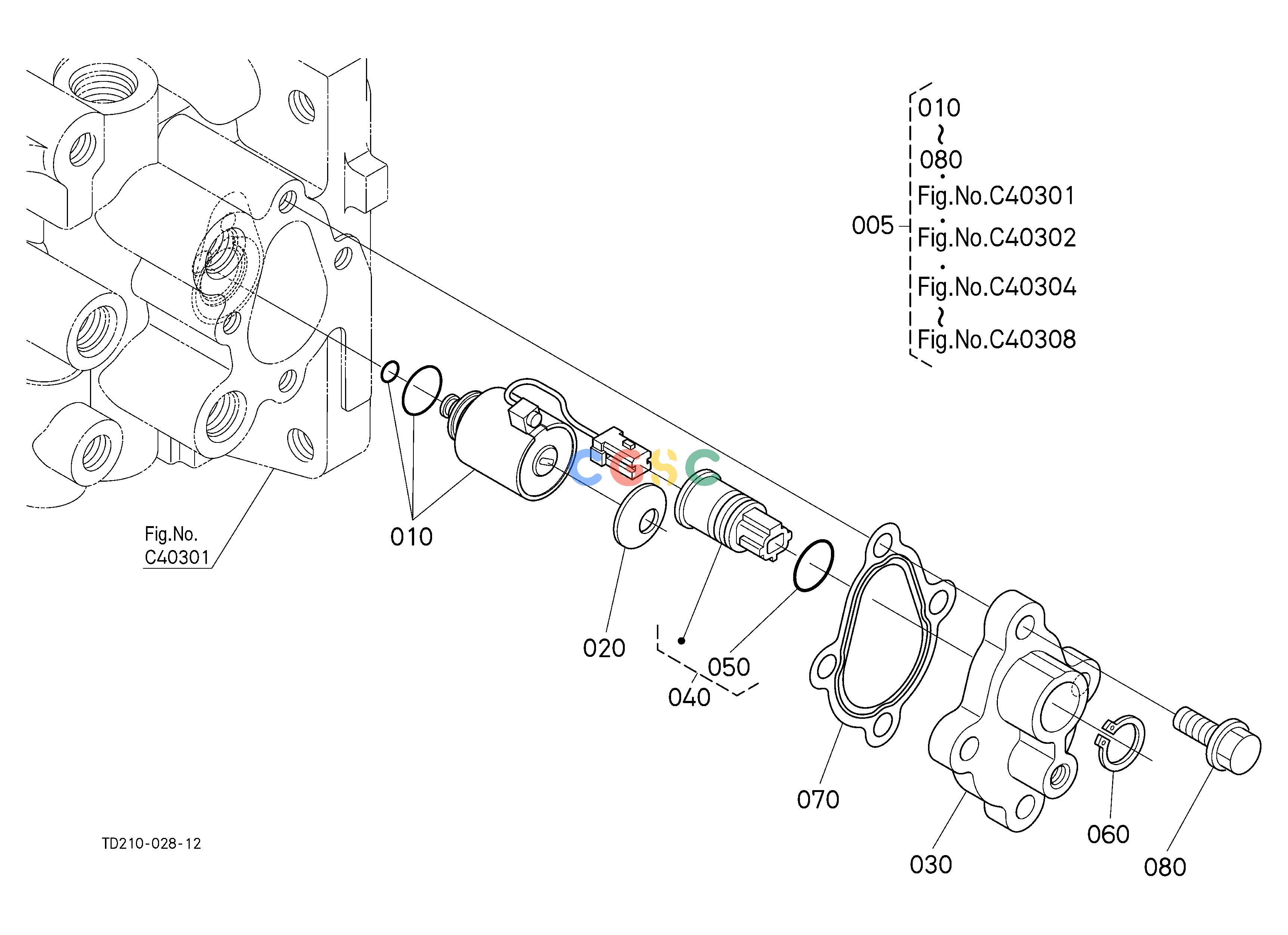

久保田零件查询C40303 HST(SOLENOID VALVE) [COMPONENT PARTS] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 005. |
TD22059992
|
[1] |
ASSY HST
|
213.4000(lbs); 97.00
|
| 005. |
TD22059993
|
[1] |
ASSY HST
|
228.8000(lbs); 104.0
|
| 005. |
TD22059994
|
[1] |
ASSY HST
|
206.8000(lbs); 94.00
|
| 010. |
TD17059890
|
[1] |
COMP.VALVE
|
0.2640(lbs); 0.120
|
| 010. |
TD17059893
|
[1] |
COMP.VALVE
|
0.2640(lbs); 0.120
|
| 020. |
YW01405220
|
[1] |
SPRING,PLATE
|
0.0088(lbs); 0.004
|
| 030. |
TD27059850
|
[1] |
COVER,VALVE
|
0.1980(lbs); 0.090
|
| 040. |
YW03701150
|
[1] |
CONNECTOR
|
0.0132(lbs); 0.006
|
| 050. |
0481600140
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 060. |
0461200170
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
TD27059860
|
[1] |
GASKET,COVER
|
0.0066(lbs); 0.003
|
| 080. |
0175450820
|
[4] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
