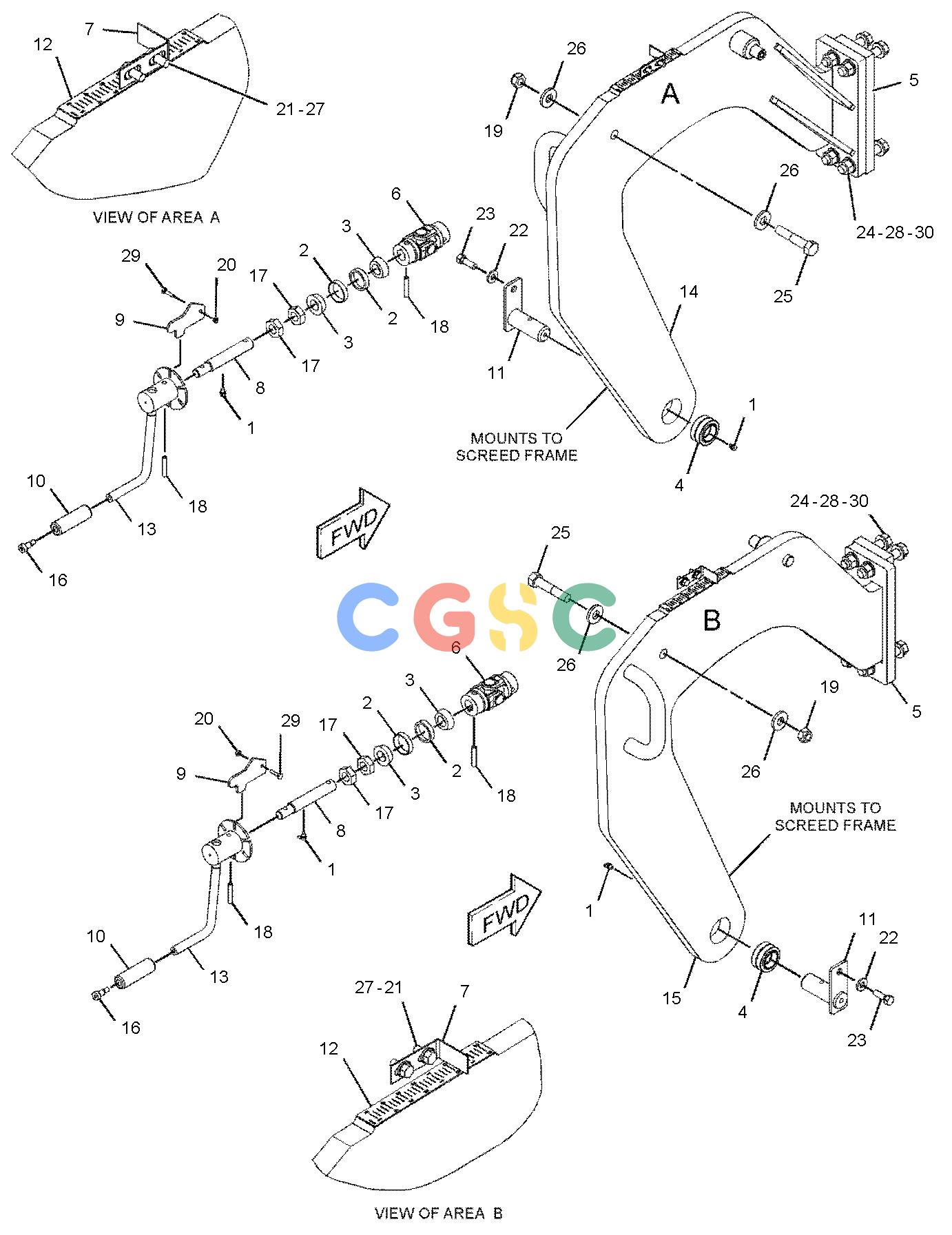

卡特零件查询（AP-600D） 300-9991: ARM GP-DROP
广数供应链运营团队, 16 02月, 2025，浏览：
678 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 3P-8680 | [4] | CUP-BEARING | |
| 3. | 3P-8681 | [4] | CONE-BEARING | |
| 4. | 4V-2057 | [2] | BEARING-SPHERICAL | |
| 5. | 280-1692C | [2] | PLATE | |
| 6. | 7X-8698 | [2] | UNIVERSAL JOINT GP | |
| | | | (EACH INCLUDES) |
| | 3B-8485 | [1] | ELBOW | |
| | 177-6969 | [1] | KIT-BEARING | |
| | | | (INCLUDES ZERK, CROSS, BEARING NEEDLES & RETAINING RINGS) |
| 7. | 8I-0358 | [2] | POINTER | |
| 8. | 134-1720 | [2] | SHAFT | |
| 9. | 135-8177 | [2] | LOCKOUT | |
| 10. | 249-0924 | [2] | HANDLE | |
| 11. | 253-3963 | [2] | PIN AS-PIVOT | |
| 12. | 277-3189 | [2] | FILM-SCALE(THICKNESS) | |
| 13. | 352-8810 | [2] | HANDLE AS | |
| 14. | 300-9993 | [1] | PLATE AS(LH) | |
| 15. | 300-9994 | [1] | PLATE AS(RH) | |
| 16. | 204-3389 | [2] | BOLT-SPECIAL | |
| 17. | 1D-6306 | [4] | NUT(1-8-THD) | |
| 18. | 1J-8136 | [4] | PIN-SPRING | |
| 19. | 1K-6870 | [2] | LOCKNUT(3/4-10-THD) | |
| 20. | 2D-6235 | [2] | LOCKNUT(1/4-20-THD) | |
| 21. | 5M-3062 | [4] | BOLT(3/8-16X0.75-IN) | |
| 22. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 23. | 5P-2566 | [2] | BOLT(1/2-13X1.5-IN) | |
| 24. | 8T-4131CM | [8] | NUT(M20X2.5-THD) | |
| 25. | 7X-0371 | [2] | BOLT(3/4-10X3.75-IN) | |
| 26. | 7X-0582 | [4] | WASHER-HARD(20X44.5X6-MM THK) | |
| 27. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 28. | 8T-4123C | [16] | WASHER(3.62X5.75X0.375-MM THK) | |
| 29. | 8T-8908 | [2] | BOLT(1/4-20X1-IN) | |
| 30. | 8T-6381CM | [8] | BOLT(M20X2.5X120-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
