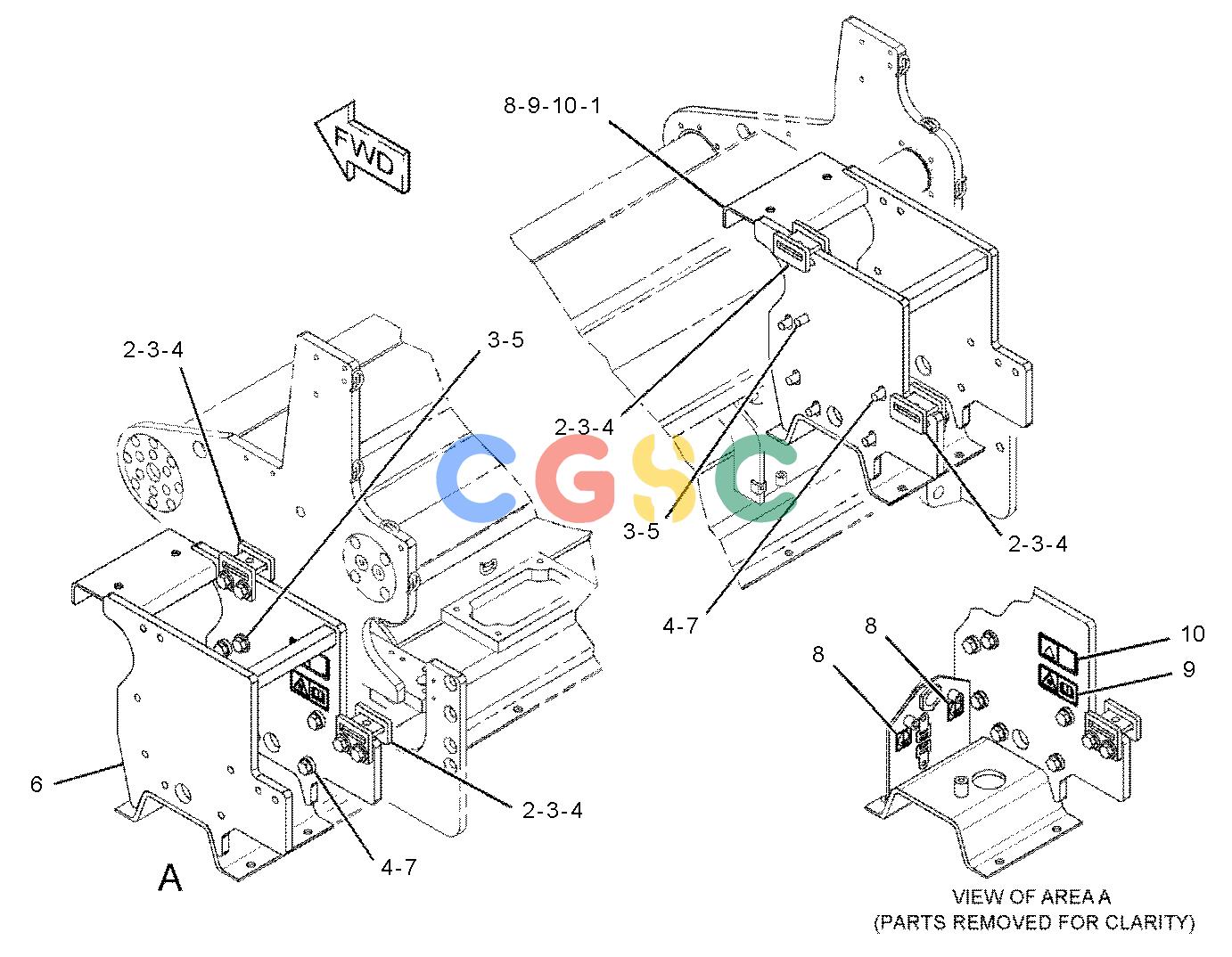

卡特零件查询（AP-600D） 353-9535: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 353-9536 | [1] | FRAME AS(250-MM EXTENSION, RH) | |
| 2. | 361-3891 | [4] | SUPPORT AS | |
| 3. | 7X-0515 | [10] | WASHER-HARD(17X35X5-MM THK) | |
| 4. | 7X-2552M | [8] | BOLT(M16X2X30-MM) | |
| 5. | 8T-7338M | [12] | BOLT(M16X2X45-MM) | |
| 6. | 371-7132 | [1] | FRAME AS(250-MM EXTENSION, LH) | |
| 7. | 198-4780 | [10] | WASHER-HARD(17.5X32X8-MM THK) | |
| 8. | 228-4798 | [4] | FILM-IDENTIFICATION(GROUND) | |
| 9. | 229-5048 | [2] | FILM-WARNING(SHOCK HAZARD, READ OMM) | |
| 10. | 323-4689 | [2] | FILM-WARNING(SHOCK, ELECTROCUTION HAZARD) | |
| | M | | METRIC PART |
