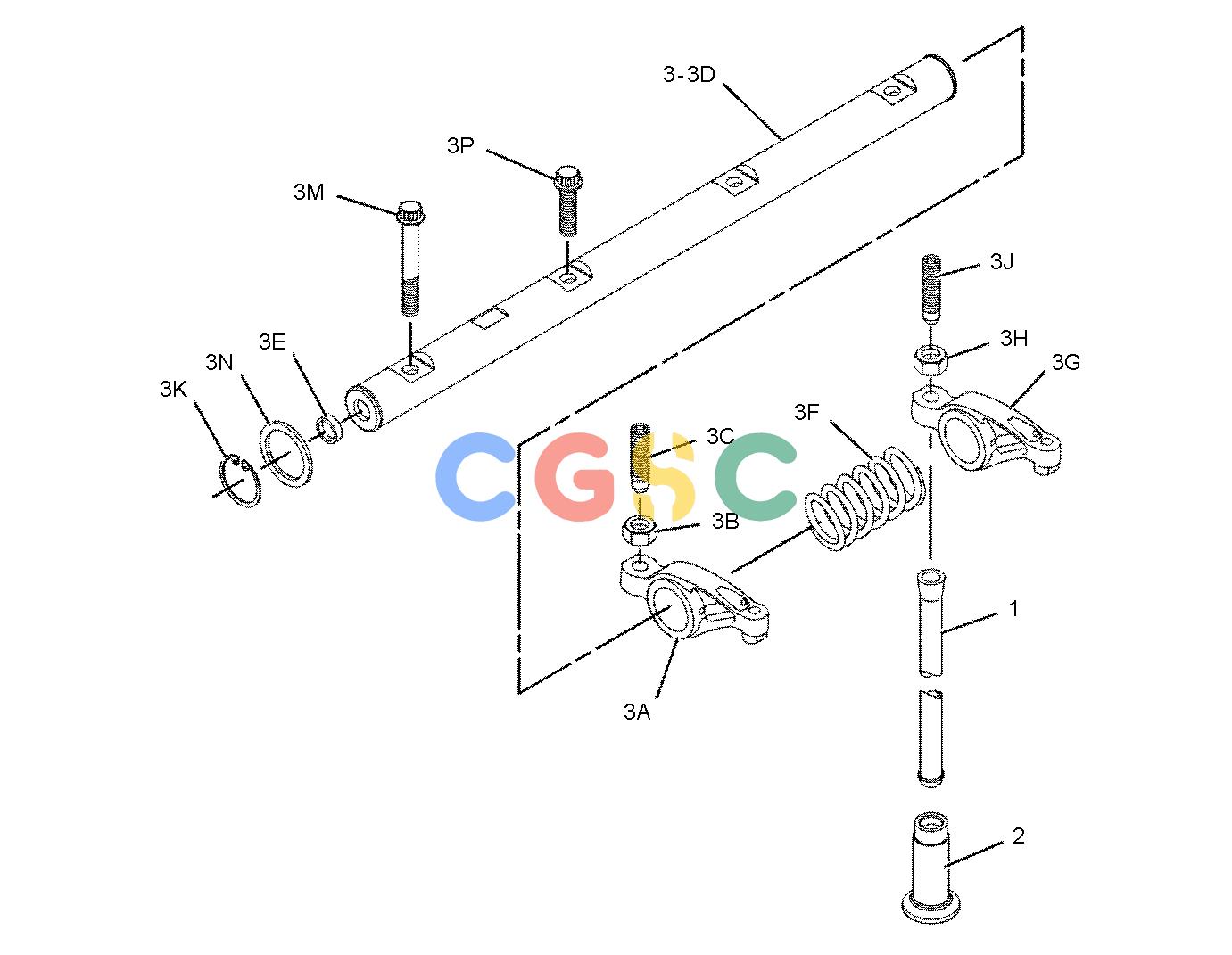

卡特零件查询（AP-650B） 232-7526: VALVE MECHANISM GP
广数供应链运营团队, 16 02月, 2025，浏览：
847 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 067-6095 | [8] | ROD | |
| 2. | 464-6253 | [8] | LIFTER-VALVE | |
| 3. | 225-5963 | [1] | ROCKER ARM GP | |
| 3A. | 225-5625 | [4] | LEVER AS | |
| | | | (EACH INCLUDES) |
| 3B. | 5B-9079 | [1] | NUT-JAM(3/8-24-THD) | |
| 3C. | 185-1546 | [1] | SCREW | |
| 3D. | 225-5634 | [1] | SHAFT AS | |
| 3E. | 225-5629 | [2] | PLUG | |
| 3F. | 225-5638 | [3] | SPRING | |
| 3G. | 225-5640 | [4] | LEVER AS | |
| | | | (EACH INCLUDES) |
| 3H. | 5B-9079 | [1] | NUT-JAM(3/8-24-THD) | |
| 3J. | 185-1546 | [1] | SCREW | |
| 3K. | 225-5959 | [2] | CLIP | |
| 3M. | 225-5960 | [1] | BOLT(M8X1.25X60-MM) | |
| 3N. | 225-5961 | [2] | WASHER(26.7X34.32X0.38-MM THK) | |
| 3P. | 225-5962 | [3] | BOLT(M8X1.25X30-MM) | |
