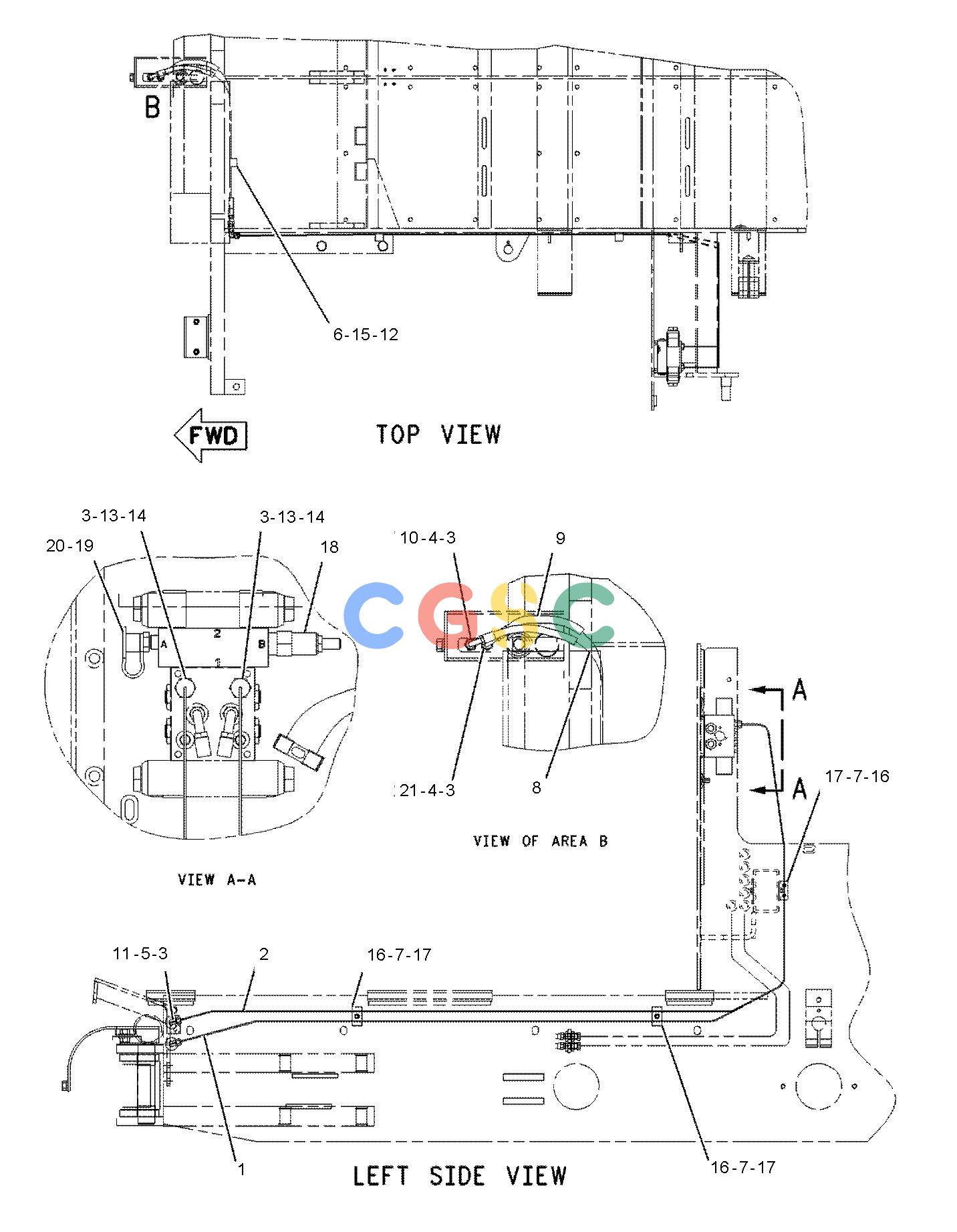

卡特零件查询（AP-650B） 125-8104: LINES GP-TRUCK HITCH
广数供应链运营团队, 16 02月, 2025，浏览：
889 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 125-5843 | [1] | TUBE AS | |
| 2. | 125-5844 | [1] | TUBE AS | |
| 3. | 6V-8397 | [8] | SEAL-O-RING | |
| 4. | 3K-0360 | [2] | SEAL-O-RING | |
| 5. | 6V-8980 | [2] | ELBOW | |
| 6. | 4V-0611 | [2] | CLAMP | |
| 7. | 8C-6561 | [3] | BOLT(5/16-18X1.375-IN) | |
| 8. | 7I-5422I | [1] | HOSE AS | |
| 9. | 8R-5358I | [1] | HOSE AS | |
| 10. | 6V-8634 | [1] | CONNECTOR | |
| 11. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 12. | 4V-0612 | [1] | PLATE | |
| 13. | 6V-8636 | [2] | CONNECTOR | |
| 14. | 3J-1907 | [2] | SEAL-O-RING | |
| 15. | 7X-0440 | [1] | BOLT(5/16-18X1.75-IN) | |
| 16. | 086-8673 | [6] | CLAMP | |
| 17. | 3V-0046 | [3] | PLATE | |
| 18. | 168-8609Y | [1] | VALVE GP-PRESSURE REDUCING(TRUCK HITCH) | |
| 19. | 6V-3966 | [1] | FITTING AS | |
| 20. | 6V-0852 | [1] | CAP-DUST | |
| 21. | 8T-0076 | [1] | CONNECTOR | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
