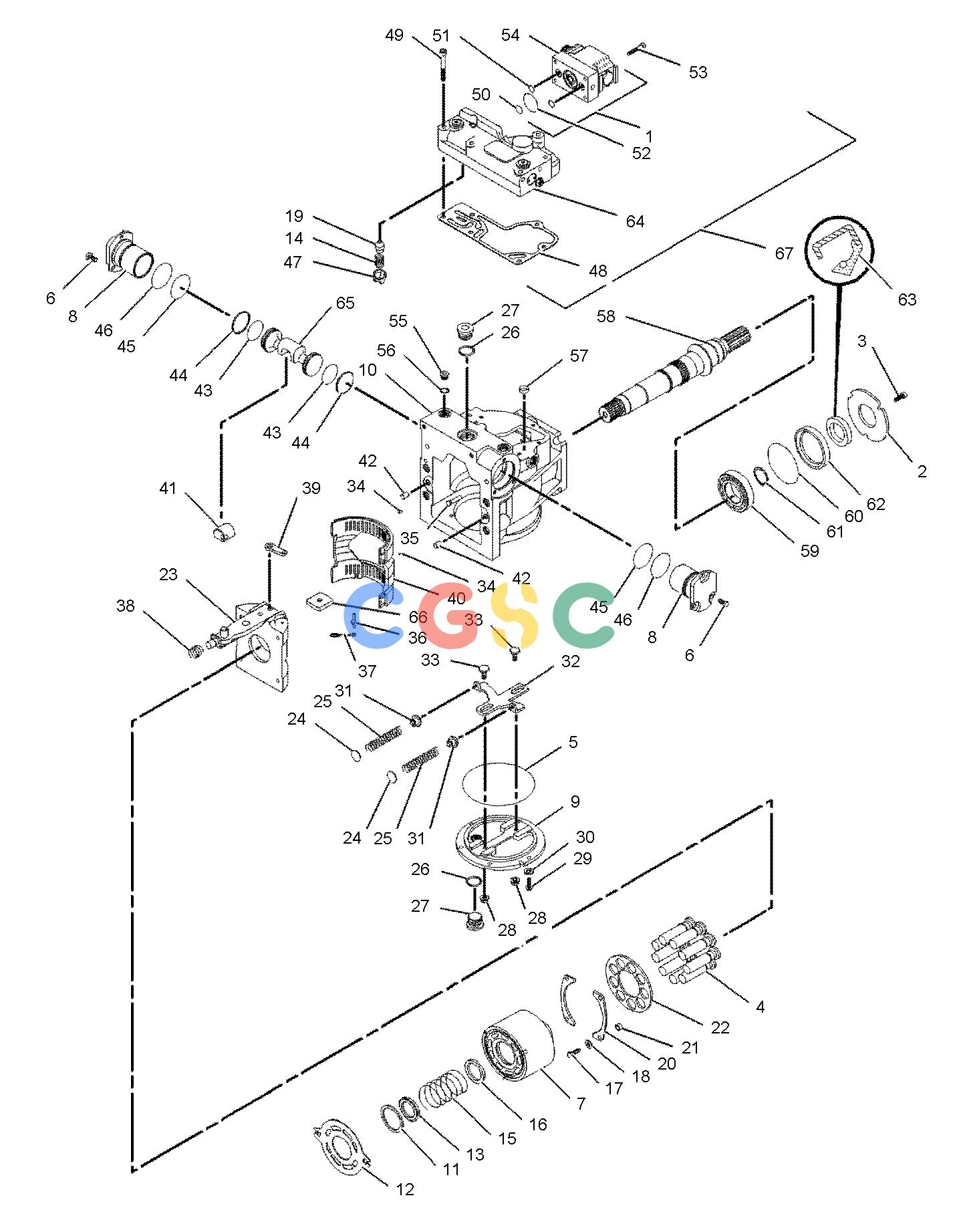

卡特零件查询（BG-225C） 105-8881: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
404 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-9335JX | [1] | KIT-SOLENOID(PUMP CONTROL)(INCLUDES PARTS MARKED W) | |
| 2. | 5E-8731 | [1] | PLATE | |
| 3. | 8T-0269M | [3] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 4. | 109-7784T | [9] | PISTON | |
| 5. | 5E-8771P | [1] | SEAL-O-RING | |
| 6. | 6V-8837M | [12] | BOLT(M6X1X16-MM) | |
| 7. | TZ | [1] | CYLINDER BLOCK |
| 8. | Z | [2] | SLEEVE |
| 9. | Z | [1] | COVER-SIDE |
| 10. | Z | | HOUSING |
| 11. | 5E-8778NT | [1] | RING(RETAINING) | |
| 12. | 136-4208 | [1] | VALVE | |
| 13. | 5E-8713NT | [1] | RETAINER | |
| 14. | 5E-8742L | [1] | SPRING | |
| 15. | 5E-8704NT | [1] | SPRING | |
| 16. | 5E-8703NT | [1] | SPRING-SEAT | |
| 17. | 5E-8784PTM | [4] | BOLT(M6X1X20-MM) | |
| 18. | 7R-4229T | [4] | WASHER(6.4X17X3-MM THK) | |
| 19. | 5E-8755L | [1] | RETAINER-SPRING | |
| 20. | 7R-4227T | [1] | GUIDE-BEARING | |
| 21. | 109-7785T | [4] | SPACER | |
| 22. | 5E-8702T | [1] | GUIDE | |
| 23. | Z | [1] | SWASHPLATE AS |
| 24. | 6R-1714B | [2] | SHIM | |
| 25. | 5E-8709 | [2] | SPRING | |
| 26. | 3D-2824 | [2] | SEAL-O-RING | |
| 27. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 28. | 5E-8765P | [2] | NUT | |
| 29. | 132-6697PM | [6] | BOLT(M8X1.25X20-MM) | |
| 30. | 1G-7221 | [6] | WASHER | |
| 31. | 6R-1715 | [2] | SEAT-SPRING | |
| 32. | 6R-1716 | [1] | LEVELER | |
| 33. | 5E-8741 | [2] | POST-GUIDE | |
| 34. | 5E-8773 | [2] | PIN | |
| 35. | 3T-0849M | [1] | BOLT-SOCKET HEAD(M6X1X25-MM) | |
| 36. | 1G-5755 | [1] | PIN | |
| 37. | 5E-8740 | [1] | CAGE-LINK | |
| 38. | 5E-8738 | [1] | SPRING | |
| 39. | 5E-8715 | [1] | LINK | |
| 40. | 5E-8727 | [1] | BEARING | |
| 41. | 108-3002 | [1] | BLOCK-SLIDER | |
| 42. | 077-8353 | [2] | PIN(SPRING) | |
| 43. | 2K-8198P | [2] | SEAL-O-RING | |
| 44. | 5E-8745P | [2] | RING-PISTON | |
| 45. | 5E-8767P | [2] | SEAL-O-RING | |
| 46. | 8C-3078P | [2] | SEAL-O-RING | |
| 47. | 5E-8746L | [1] | VALVE-CHECK | |
| 48. | 6R-1530J | [1] | GASKET | |
| 49. | 8T-9534JM | [6] | BOLT(M6X1X50-MM) | |
| 50. | 033-6033JWX | [1] | SEAL-O-RING | |
| 51. | 8L-2779JWX | [2] | SEAL-O-RING | |
| 52. | 5P-5600JWX | [1] | SEAL-O-RING | |
| 53. | 8C-8580JM | [4] | BOLT-SOCKET HEAD(M5X0.8X16-MM) | |
| 54. | JWXZ | [1] | CONTROL |
| 55. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 56. | 3J-7354 | [4] | SEAL-O-RING | |
| 57. | 7X-9232 | [3] | PLUG-VENT(PUMP CONTROL) | |
| 58. | 5E-8722 | [1] | SHAFT-PUMP | |
| 59. | 5E-8763 | [1] | BEARING-ROLLER | |
| 60. | 5E-8770 | [1] | SEAL-O-RING | |
| 61. | 1J-6474 | [1] | RING-RETAINING(EXTERNAL) | |
| 62. | 5E-8724 | [1] | SEAL | |
| 63. | 5E-8789 | [1] | SEAL-LIP TYPE | |
| 64. | JXZ | [1] | COVER |
| 65. | Z | [1] | SPINDLE |
| 66. | Z | [1] | SPACER |
| 67. | 151-1180 | [1] | KIT-CONTROL(PROPEL PISTON PUMP) | |
| | | | (INCLUDES PARTS MARKED J |
| 68. | 144-6691 | [1] | FILTER-OIL(ADVANCED EFFICIENCY) | |
| 69. | 8T-0106M | [4] | BOLT(M12X1.75X100-MM) | |
| 70. | 122-0149 | [1] | PUMP GP-CHARGE(2 PIECES) | |
| 71. | Z | [1] | HOUSING |
| 74. | 5E-8760 | [1] | PLATE-RETAINING | |
| 75. | 5E-8743 | [1] | BUSHING-TERMINAL | |
| 76. | 5E-8769P | [1] | SEAL-O-RING | |
| 77. | 1G-6877P | [1] | GASKET | |
| 78. | 6R-1709 | [2] | PLATE-PORT | |
| 79. | 3H-1156 | [1] | PIN | |
| 80. | 108-5975 | [1] | SHAFT | |
| 81. | 030-4004 | [1] | KEY | |
| 82. | 5E-9816 | [2] | SEAL-O-RING | |
| 83. | 030-4605 | [2] | SEAL-O-RING | |
| 84. | 6R-0704 | [2] | PLUG-PLASTIC | |
| 85. | 6R-1528 | [1] | TUBE | |
| 86. | 5E-8764 | [1] | NUT(1-5/16-12-THD) | |
| 87. | 7M-8485 | [1] | SEAL-O-RING | |
| 88. | 9S-4191 | [4] | PLUG(9/16-18-THD) | |
| 89. | 3J-1907 | [5] | SEAL-O-RING | |
| 90. | 136-1109 | [1] | MANIFOLD-FILTER | |
| 91. | Z | [2] | COVER |
| 92. | 5P-0060 | [4] | BOLT(7/16-14X0.75-IN) | |
| 93. | 6R-1712 | [2] | GASKET | |
| 94. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 95. | 6V-2315M | [1] | BOLT(M6X1X35-MM) | |
| 96. | 8H-5305 | [1] | WASHER(0.266X0.5X0.105-IN THK) | |
| 97. | 6R-1711 | [1] | BRACKET | |
| 98. | 5E-8758 | [1] | SPACER | |
| 99. | 5E-8744 | [1] | BEARING | |
| 100. | 6R-1703 | [1] | POPPET | |
| 101. | 5E-8748 | [1] | SPRING | |
| 102. | 2M-9780 | [1] | SEAL-O-RING | |
| 103. | 6R-1704 | [1] | PLUG AS | |
| 104. | 6R-1702 | [1] | NUT-SPECIAL(7/8-14-THD) | |
| 106. | 5E-8777 | [2] | PLUG | |
| 107. | SZ | [1] | RETAINER |
| 108. | Z | [2] | VALVE |
| 109. | SZ | [1] | BUSHING |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 5E-8737L | [1] | KIT-ORIFICE CONTROL(PROPEL PISTON PUMP) | |
| | 5E-8726N | [1] | KIT-CYLINDER BLOCK(PROPEL PISTON PUMP) | |
| | 5E-9172P | [1] | KIT-SEAL(PROPEL PISTON PUMP) | |
| | 108-5172X | [1] | KIT-CONTROL(PROPEL PISTON PUMP) | |
| | 5E-8732T | [1] | KIT-PUMP ROTATING GROUP(ROTATING)(PROPEL PISTON PUMP) | |
| | 108-6165S | [1] | KIT-COVER(PROPEL PISTON PUMP) | |
| | B | | USE AS REQUIRED |
| | J | | CONTROL DISPLACEMENT MARKED J INCLUDES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | W | | PART 1G-9335 SERVICES PARTS MARKED W |
| | X | | KIT MARKED X SERVICES PART(S) MARKED X |
| | Z | | NOT SERVICED SEPARATELY |
