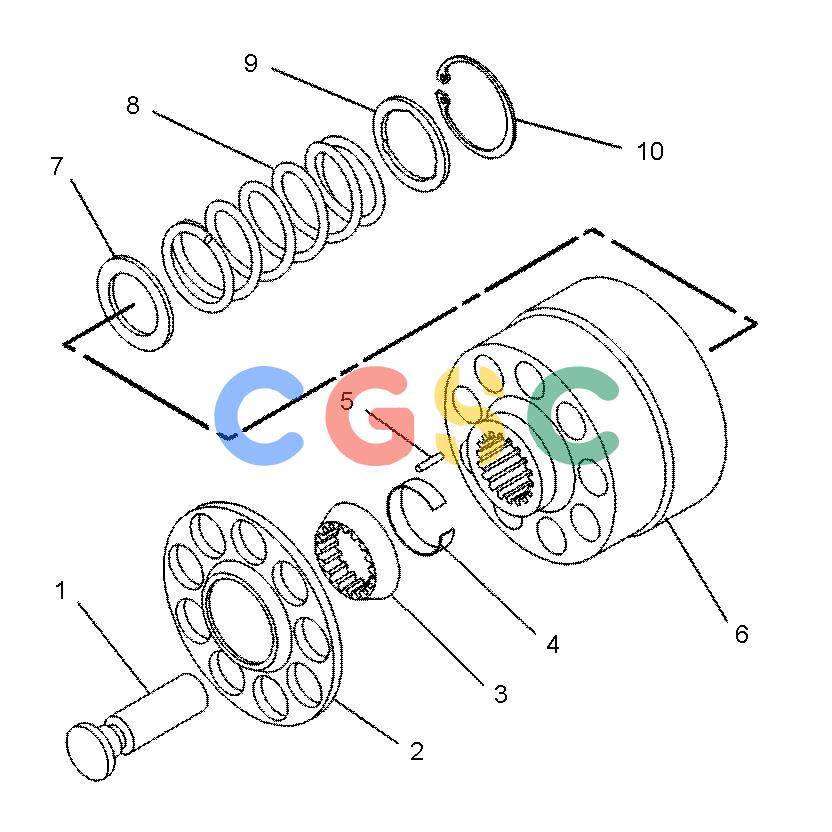

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9T-3868 | [1] | KIT-PISTON(PUMP ROTATING GROUP) | |
| (INCLUDES PISTONS) | ||||
| 2. | 9T-3860 | [1] | PLATE | |
| 3. | 9T-3859 | [1] | WASHER(1.068X1.139X0.099-MM THK) | |
| 4. | 9T-3862 | [1] | RETAINER | |
| 5. | 9T-3857 | [3] | PIN | |
| 6. | 9T-3863 | [1] | BARREL | |
| 7. | 9T-3861 | [1] | WASHER(1.062X1.58X0.095-MM THK) | |
| 8. | 9T-3858 | [1] | SPRING | |
| 9. | 9T-3864 | [1] | WASHER(1.2X1.58X0.095-MM THK) | |
| 10. | 004-1683 | [1] | RING-SNAP | |
